SF3000SGN1 06 – DOOR, OPTIONAL
Written by
in

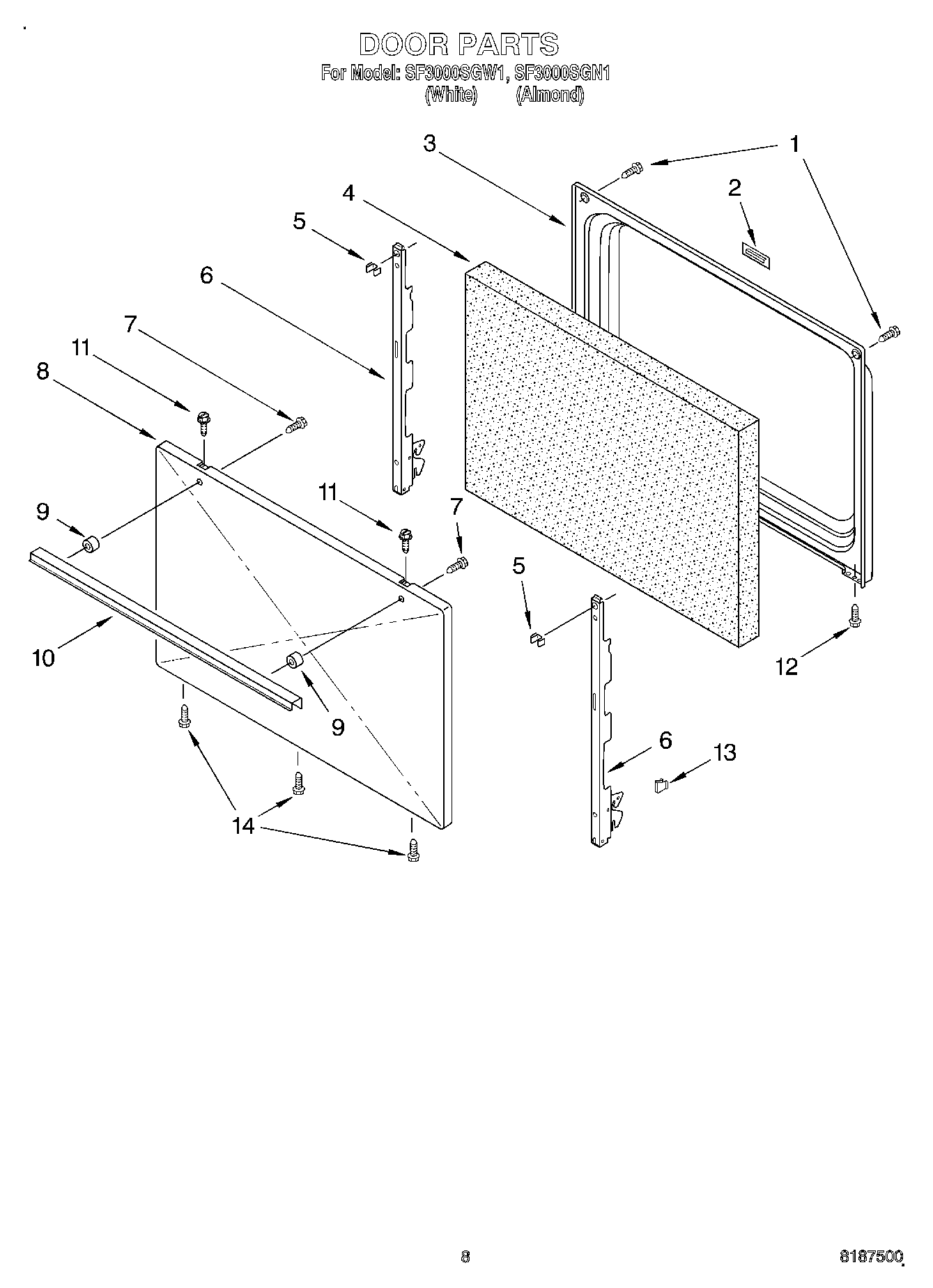

SF3000SGN1 06 – DOOR, OPTIONAL
Products
Position
Product
1
Screw
2
Plug, Door
3
Liner, Door
4
WPW10278991 Whirlpool Insulation
5
Bracket, Saddle (2)
6
Hinge, Door (2)
7
WP3196163 Whirlpool Screw
8
Panel, Door (Almond)
8
W10903447 Whirlpool Door Panel Assembly
9
Spacer, Handle (2) (Almond)
9
WP3196143 Whirlpool Spacer Assembly
10
WP3195704 Whirlpool Door Handle Assembly
11
3196558 Whirlpool Oven Screw
11
Screw, Panel (2) (Almond)
12
WP3196175 Whirlpool Screw
13
WP3196925 Whirlpool Clip Assembly
14
Wire (12 Ga. 150 c Black)
14
18 Ga. 80~c Rating (Red)
14
Wire (14 Ga. 200 c Brown)
14
1
14
8212471 Whirlpool Oven Paint
14
Grease
14
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
14
W10491985 Whirlpool Screw
14
Wire (14 Ga. 150 c Yellow)
14
Wire (14 Ga. 150 c Orange)
14
WPL 799832
14
511873 Whirlpool Refrigerator Paint
14
350942 Whirlpool Spray Paint
14
Almond (Uncut)
14
WP72107 Whirlpool Touchup
14
799344 Whirlpool Refrigerator Paint
14
72017 Whirlpool Appliance Touch-Up Paint White
14
350956 Whirlpool Spray Assembly
14
WPW10208653 Whirlpool Insulation
14
FOIL, ALUMINUM OVEN (18“ X 25 )
14
Wire, 25` Roll (Black 14 Ga.)
14
Wire (14 Ga. 150 c Green)
14
Wire (14 Ga. 150 c Brown)
14
Wire (14 Ga. 150 c Blue)
14
242831 Whirlpool Oven Wire
14
814381 Whirlpool Pin
14
285006 Whirlpool Spray
14
Wire, 25“ Roll (White 14 GA.)
14
Wire, 25` Roll (Red 14 Ga.)
14
350930 Whirlpool White Spray Paint
←
