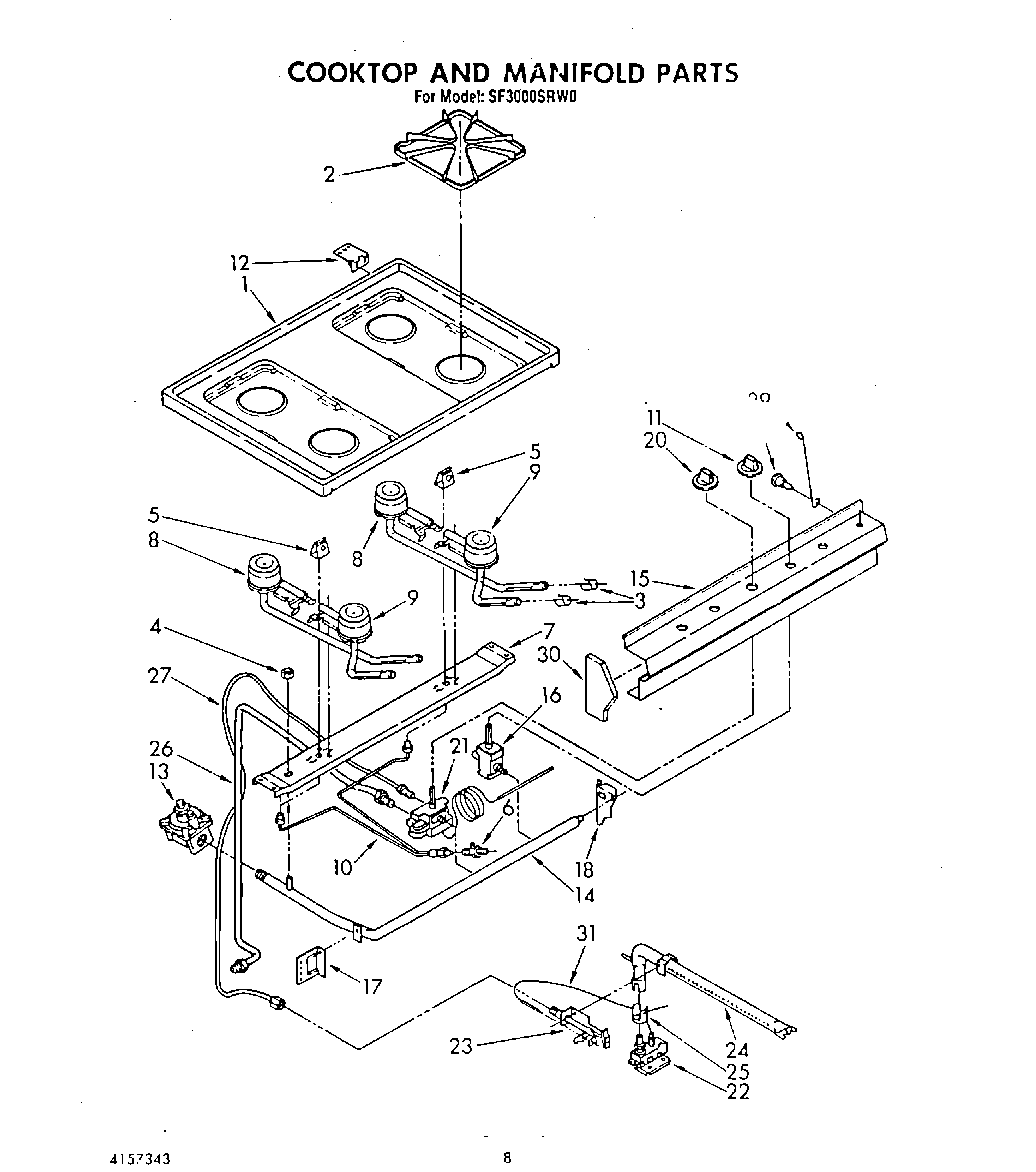

SF3000SRW0 06 – COOKTOP AND MANIFOLD , LIT/OPTIONAL

Products

Position	Product
	List, Repair Parts
	Guide, Cooking
	WPL LIT786735
	Guide, Use & Care
1	Cooktop (Almond)
1	Cooktop (White)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
5	Cover, Pilot (2)
6	Filter, Pilot
7	Support, Burner
8	Burner, Rear (2)
9	Screw, 10-12 X 3/8 (2)
9	Burner, Front (2)
10	Tubing, Pilot (Incl. No. 6)
11	WP4179282 Whirlpool Knob
12	Hinge, Maintop (2)
12	Speed Clip (4)
12	SCREW
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4)
17	Support, Manifold (L.H.)
18	Support, Manifold (R.H.)
18	WP308685 Whirlpool Microwave Screw
20	WPY07506601 Whirlpool Thermal Knob
21	Thermostat
22	Valve, Safety
22	WP3387230 Whirlpool Screw
23	Pilot
23	Screw, 10-24 X 1/4 (1)
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
28	Screw
29	Rod, Support
30	Endcap (R.H.)
30	Endcap (L.H.)
31	WPW10208653 Whirlpool Insulation
31	FOIL, ALUMINUM OVEN (18“ X 25 )
31	Ignitor, Oven
