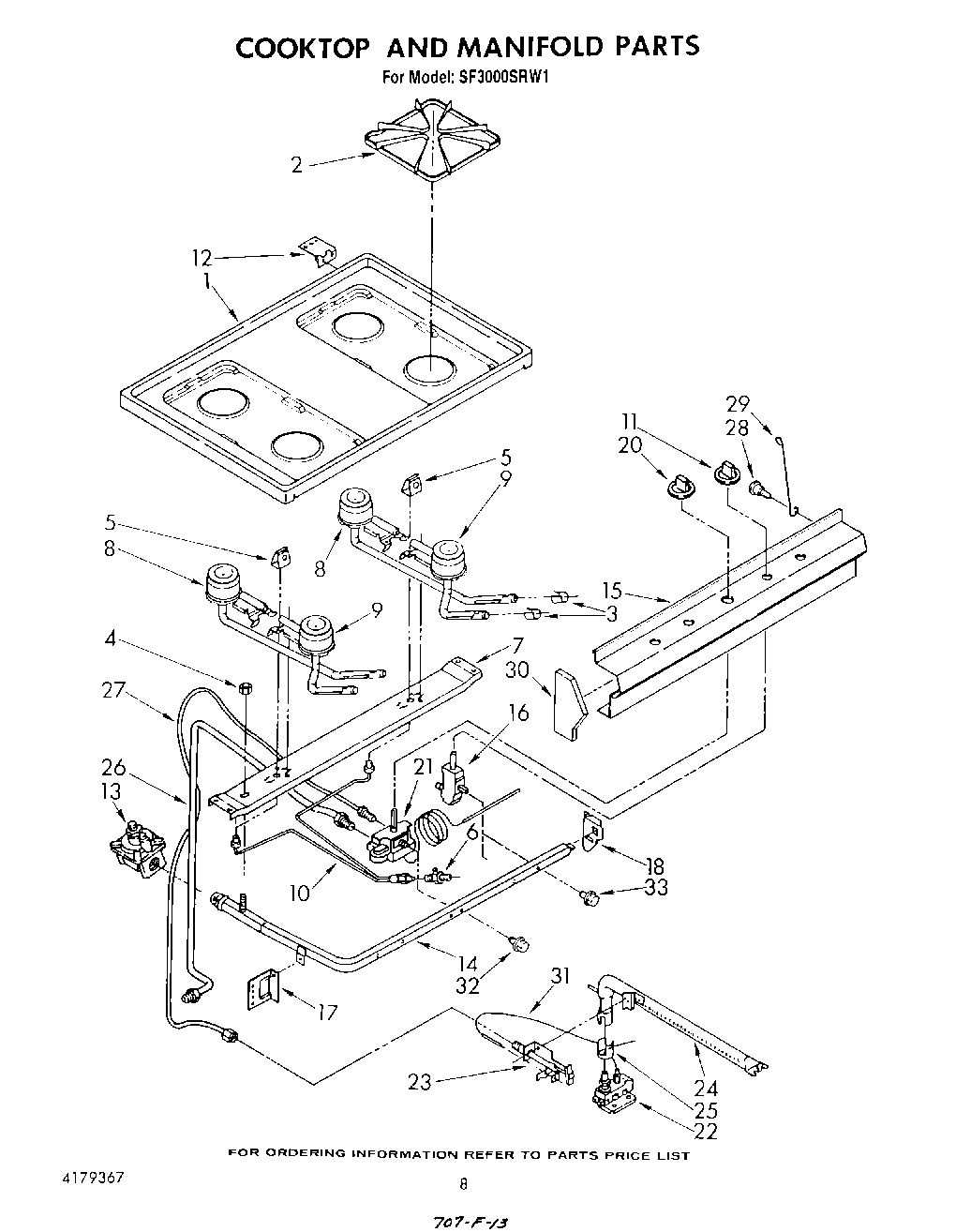

SF3000SRW1 06 – COOKTOP AND MANIFOLD , LITERATURE AND OPTIONAL

Products

PositionProduct
Guide, Use & Care
WPL LIT786735
Guide, Cooking
List, Repair Parts
1Cooktop (Almond)
1Cooktop (White)
2Grate (4)
3Shutter, Air (4)
4Nut, Hex
5Cover, Pilot (2)
6Filter, Pilot
7Support, Burner
8Burner, Rear (2)
9Screw, 10-12 X 3/8 (2)
9Burner, Front (2)
10Tubing, Pilot (Incl. No. 6)
11WP4179282 Whirlpool Knob
12Hinge, Maintop (2)
12SCREW
12Speed Clip (4)
13Regulator, Pressure
14Manifold
15Panel, Manifold
16Valve, 90~ (4) (Includes Ill. No. 32)
17Support, Manifold (L.H.)
18Support, Manifold (R.H.)
18WP308685 Whirlpool Microwave Screw
20WPY07506601 Whirlpool Thermal Knob
21Thermostat (Includes Ill. No. 31)
22WP3387230 Whirlpool Screw
22Valve, Safety
23Pilot
23Screw, 10-24 X 1/4 (1)
24Burner, Oven
25Shutter, Burner
26Tubing 3/8“ (Thermostat To Safety Valve)
27Tubing 3/16“ (Thermostat To Pilot)
28Screw
29Rod, Support
30Endcap (L.H.)
30Endcap (R.H.)
31Ignitor, Oven
32Bolt, Thermostat Mounting (2)
33Bolt, Valve Mounting
33WPW10208653 Whirlpool Insulation
33FOIL, ALUMINUM OVEN (18“ X 25 )
