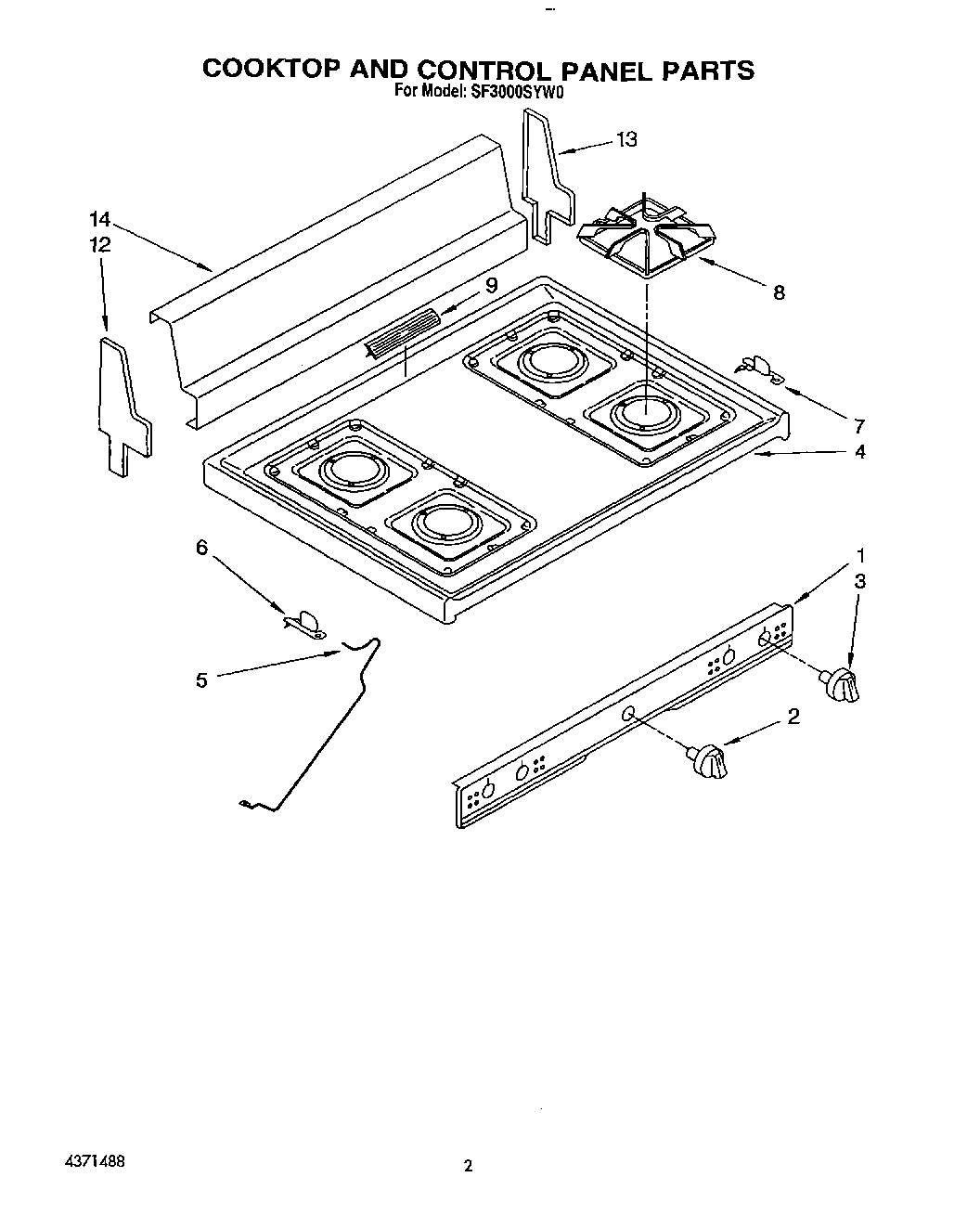

SF3000SYN0 02 – COOKTOP AND CONTROL PANEL, LIT/OPTI

SF3000SYN0 02 – COOKTOP AND CONTROL PANEL, LIT/OPTI

Written by

in

SF3000SYN0 02 – COOKTOP AND CONTROL PANEL, LIT/OPTI

Products

PositionProduct
List, Repair Parts
Guide, Use & Care
Installation, Instructions
1Panel, Control
2Knob, Thermostat
3Knob, Burner (4)
4Top, Main (Almond)
4Top, Main (White)
5Rod, Support Top
6Bracket, Hinge LH
7Bracket, Hinge RH
8Grate (4)
9Cover, Vent
12Endcap LH
13Endcap RH
14Panel, Backguard
