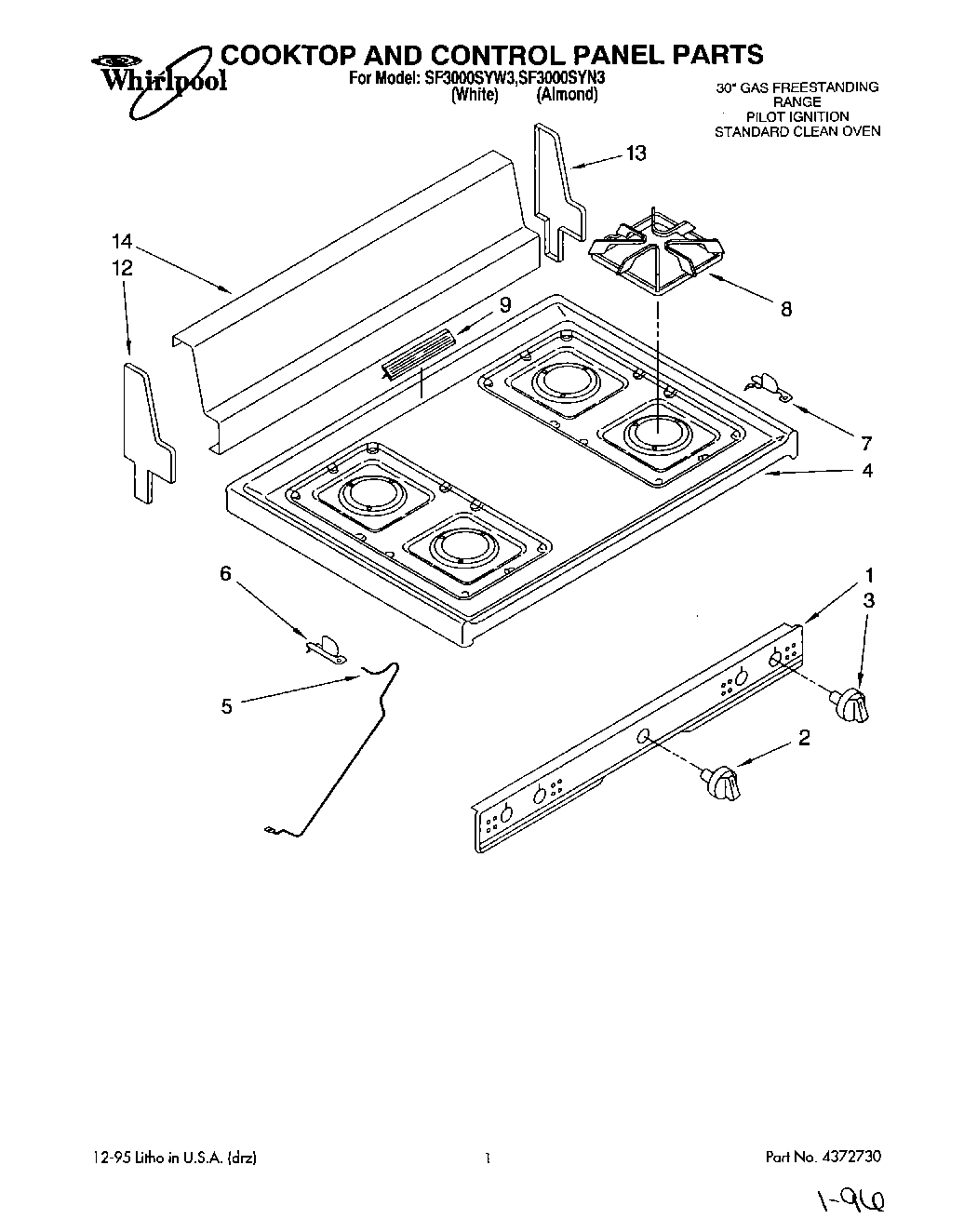

SF3000SYN3 01 – COOKTOP AND CONTROL PANEL, LITERATURE

SF3000SYN3 01 – COOKTOP AND CONTROL PANEL, LITERATURE

Written by

in

SF3000SYN3 01 – COOKTOP AND CONTROL PANEL, LITERATURE

Products

PositionProduct
Guide, Use & Care
Instructions, Installation
1Panel, Control
2Knob, Thermostat
3Knob, Burner (4)
4Top, Main (Almond)
4Top, Main (White)
5Rod, Support Top
6Bracket, Hinge LH
7Bracket, Hinge RH
8Grate, Burner (4)
9Cover, Vent
12Endcap LH
13Endcap RH
14Panel, Backguard
