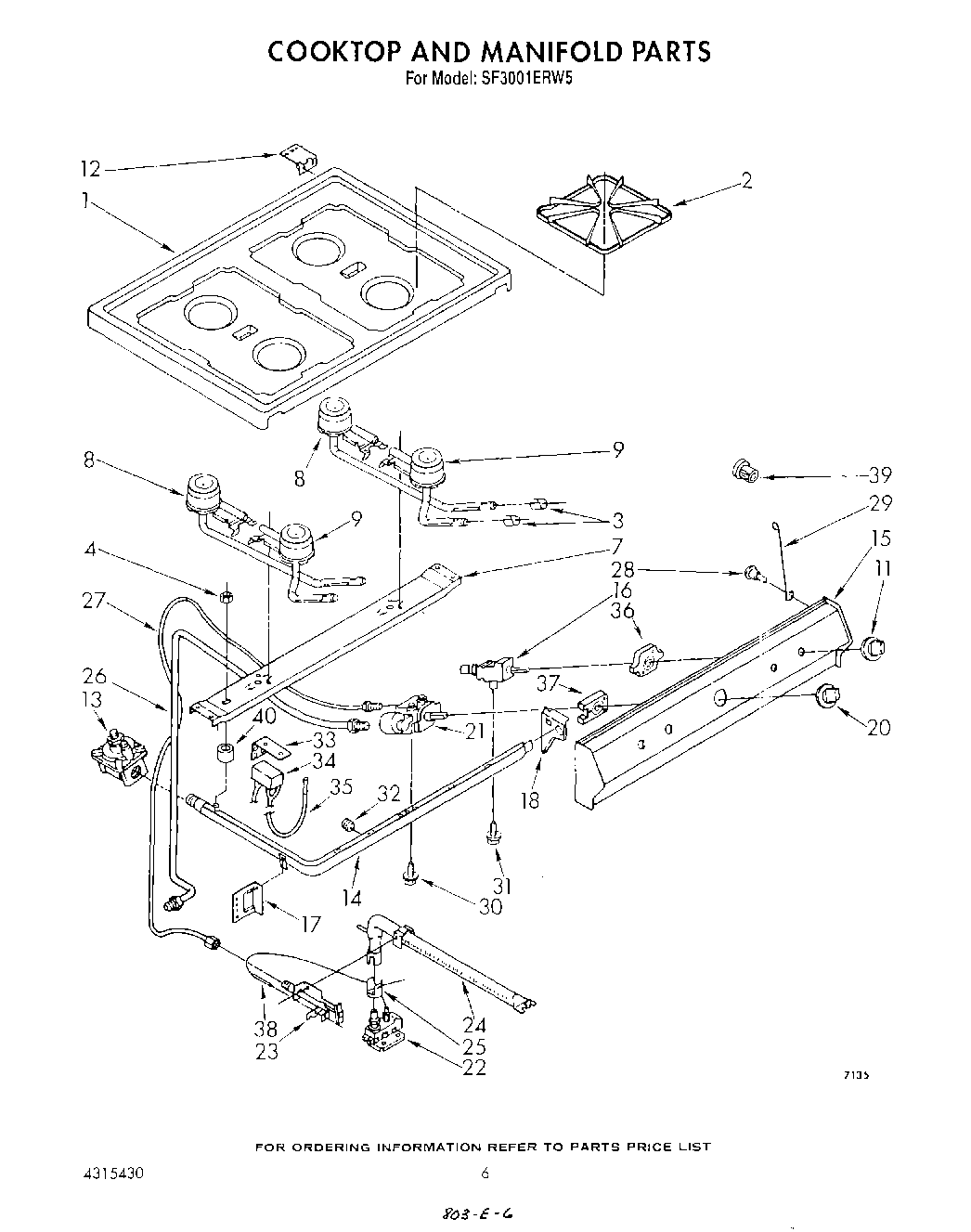

SF3001ERW5 05 – COOK TOP AND MANIFOLD , LITERATURE

Products

Position	Product
1	Cooktop (White)
1	Cooktop (Almond)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
7	Support, Burner
8	Burner, Rear (2)
9	Screw, 10-12 X 3/8 (2)
9	Burner, Front (2)
11	WP4179282 Whirlpool Knob
12	SCREW
12	Hinge, Maintop (2)
12	Speed Clip (4)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 33)
17	Support, Manifold (L.H.)
18	WP308685 Whirlpool Microwave Screw
18	Support, Manifold (R.H.)
20	WPY07506601 Whirlpool Thermal Knob
21	Thermostat (Includes Ill. No. 30)
22	Valve, Safety
22	WP3387230 Whirlpool Screw
23	Pilot
23	Screw, 10-24 X 1/4 (1)
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
28	Screw
29	Rod, Support
30	Bolt, Thermostat Mounting (2)
31	Bolt, Valve Mounting
32	W10295523 Whirlpool Plug
33	Plate, Spark Module
34	Module, Spark
35	Ignitor (R.H.)
35	Ignitor (L.H.)
35	Ignitor (Screw, 8 X 1/2 (4))
36	WP4157180 Whirlpool Surface Burner Ignition Switch
37	WP878009 Whirlpool Igniter Switch
38	Ignitor, Oven
39	Strain Relief
40	Spacer, Manifold
