SF3004SRW1 06 – COOKTOP AND MANIFOLD , LITERATURE AND OPTIONAL

SF3004SRW1 06 – COOKTOP AND MANIFOLD , LITERATURE AND OPTIONAL

Written by

in

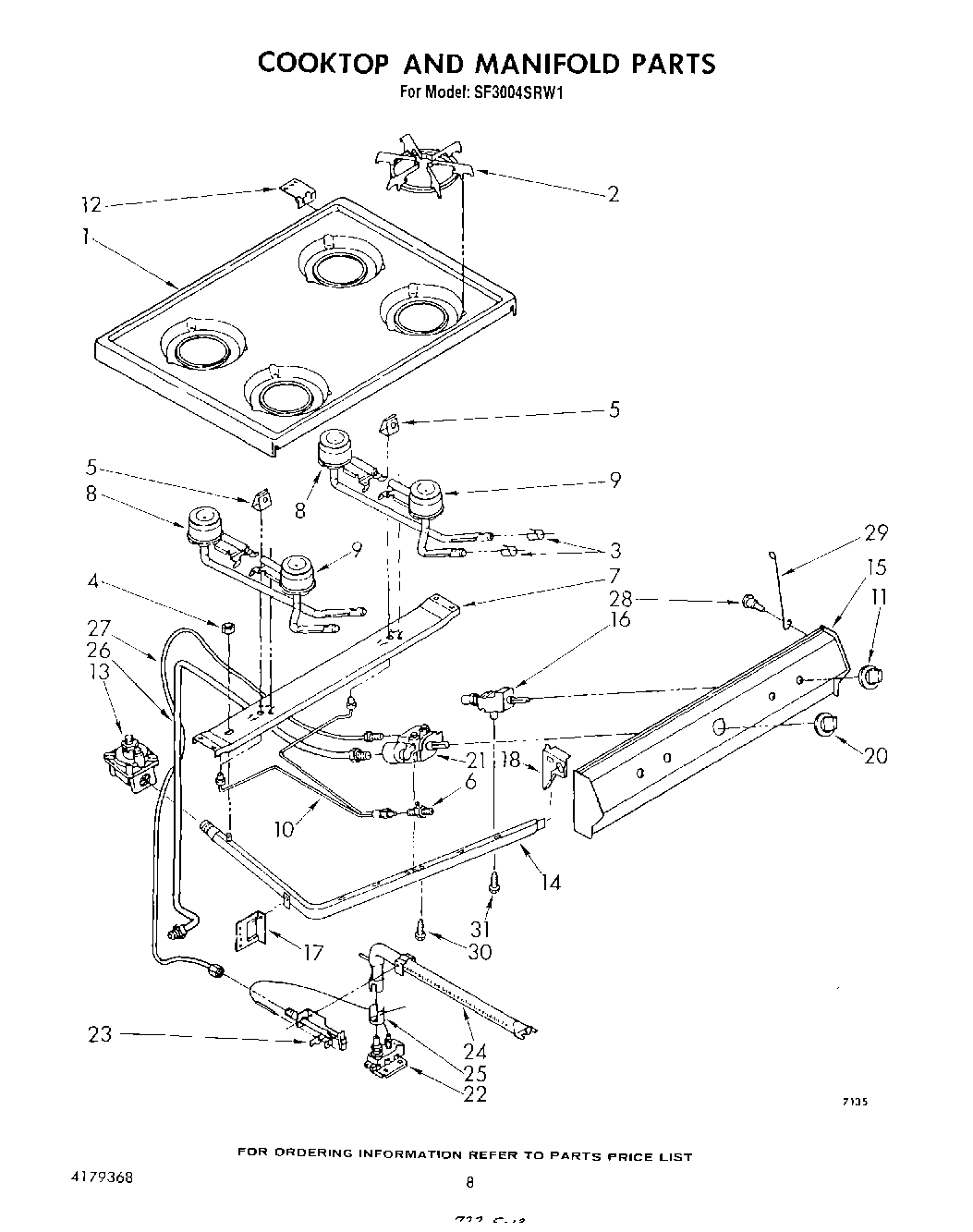

SF3004SRW1 06 – COOKTOP AND MANIFOLD , LITERATURE AND OPTIONAL

Products

PositionProduct
WPL LIT786735
Guide, Cooking
Guide, Use & Care
List, Repair Parts
Cooktop
1Cooktop (Almond)
1Cooktop (White)
2Grate (4)
3Shutter, Air (4)
4Nut, Hex
5Cover, Pilot (2)
6Filter, Pilot
7Support, Burner
8Burner, Rear (2)
9Screw, 10-12 X 3/8 (2)
9Burner, Front (2)
10Tubing, Pilot (Incl. No. 6)
11WP4179282 Whirlpool Knob
12Hinge, Maintop (2)
12Speed Clip (4)
12SCREW
13Regulator, Pressure
14Manifold
15Panel, Manifold
16Valve, 90~ (4) (Includes Ill. No. 33)
17Support, Manifold (L.H.)
18Support, Manifold (R.H.)
18WP308685 Whirlpool Microwave Screw
20WPY07506601 Whirlpool Thermal Knob
21Thermostat (Includes Ill. No. 32)
22WP3387230 Whirlpool Screw
22Valve, Safety
23Pilot
23Screw, 10-24 X 1/4 (1)
24Burner, Oven
25Shutter, Burner
26Tubing 3/8“ (Thermostat To Safety Valve)
27Tubing 3/16“ (Thermostat To Pilot)
28Screw
29Rod, Support
30Bolt, Thermostat Mounting (2)
31WPW10208653 Whirlpool Insulation
31FOIL, ALUMINUM OVEN (18“ X 25 )
31Bolt, Valve Mounting
