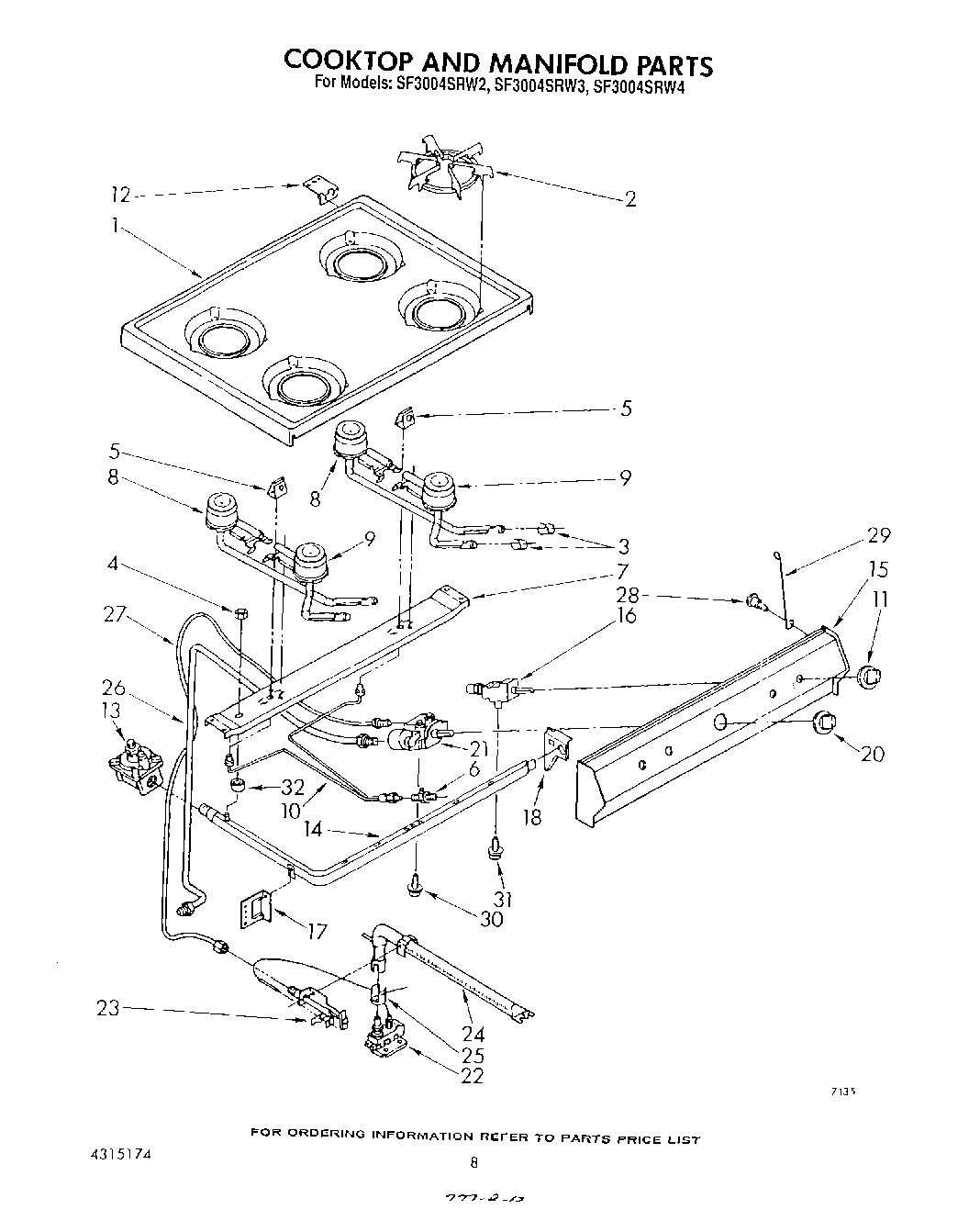

SF3004SRW2 06 – COOK TOP AND MANIFOLD , LITERATURE

Products

Position	Product
	Guide, Use & Care
	Guide, Cooking
	List, Repair Parts
	WPL LIT786735
1	Cooktop (Almond)
1	Cooktop (White)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
5	Cover, Pilot (2)
6	Filter, Pilot
7	Support, Burner
8	Burner, Rear (2)
9	Screw, 10-12 X 3/8 (2)
9	Burner, Front (2)
10	Tubing, Pilot (Incl. No. 6)
11	WP4179282 Whirlpool Knob
12	Hinge, Maintop (2)
12	Speed Clip (4)
12	SCREW
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 33)
17	Support, Manifold (L.H.)
18	Support, Manifold (R.H.)
18	WP308685 Whirlpool Microwave Screw
20	WPY07506601 Whirlpool Thermal Knob
21	Thermostat (Includes Ill. No. 32)
22	WP3387230 Whirlpool Screw
22	Valve, Safety
23	Pilot
23	Screw, 10-24 X 1/4 (1)
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
28	Screw
29	Rod, Support
30	Bolt, Thermostat Mounting (2)
31	Bolt, Valve Mounting
32	WPW10208653 Whirlpool Insulation
32	FOIL, ALUMINUM OVEN (18“ X 25 )
32	Spacer, Manifold
