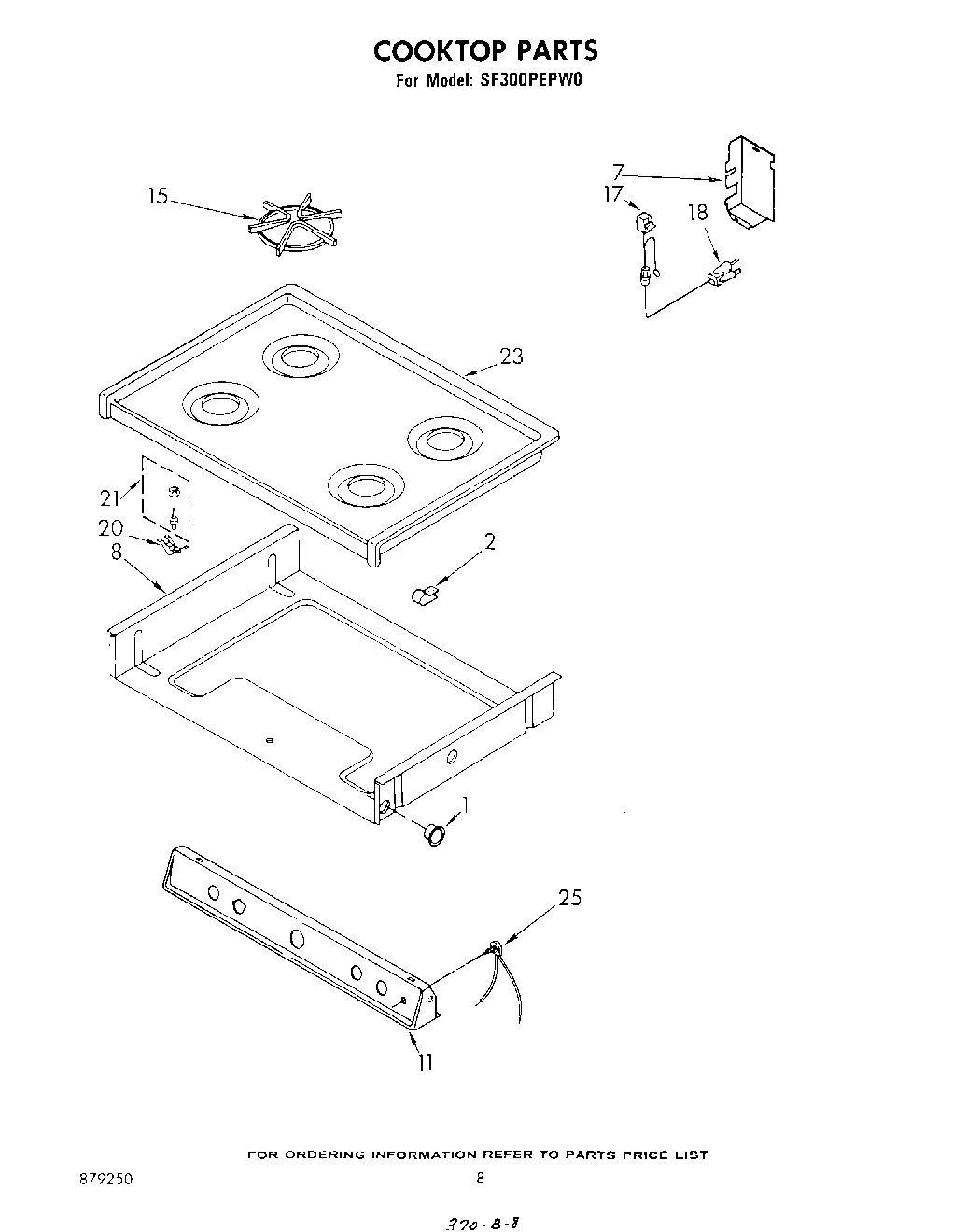

SF300PEPW0 06 – COOK TOP

Products

Position	Product
1	Bushing, Snap
2	Clamp, Wire
7	Cover, Wire
8	Bottom, Burner Box
11	Panel, Manifold (White)
15	Grate, Burner (4)
17	Block, Disconnect Socket
18	Cord, Extension
20	Catch, Main Top (2)
21	Strike, Main Top (2)
23	Top, Main (White)
23	Block, Disconnect Pin
25	Switch, Oven Light
