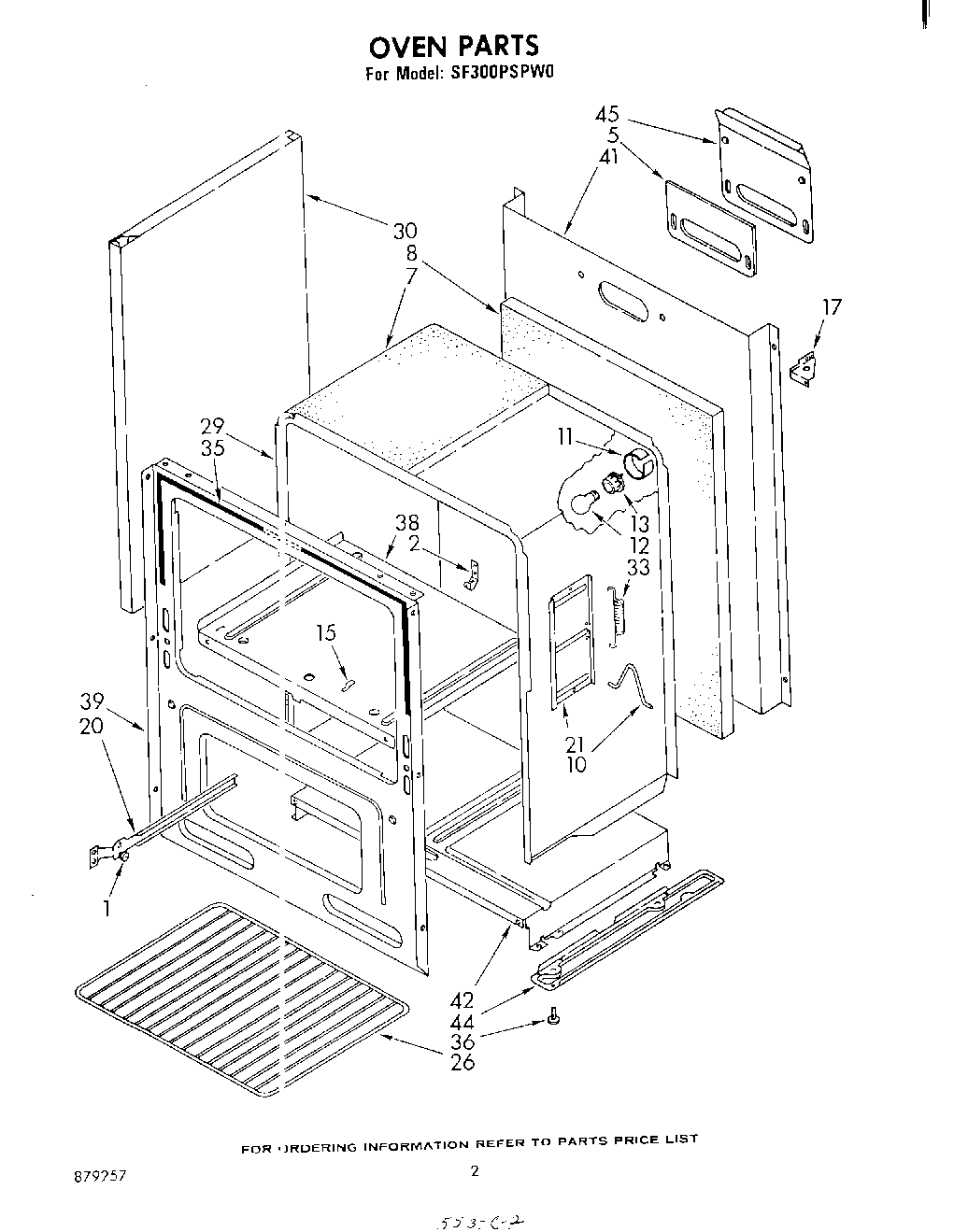

SF300PSPW0 02 – OVEN , LIT/OPTIONAL
Written by
in
SF300PSPW0 02 – OVEN , LIT/OPTIONAL
Products
Position
Product
List, Repair Parts
Diagram, Installation Instructions
Guide, Use & Care
Instructions, Installation
1
Bearing, Roller (4)
2
98005642 Whirlpool Clip
5
Gasket, Vent Deflector
7
WPW10208653 Whirlpool Insulation
10
Link, Oven Door Spring (2)
11
Sleeve, Light Hole
12
RANGE ONLY 40W 120V APPL BULB
13
Socket, Oven Light
15
Clip, Oven Bottom Plate (2)
17
Bracket, Corner Support (Right Side)
17
Bracket, Corner Support (Left Side)
20
Track, Broiler (Right Side)
20
Track, Broiler (Left Side)
21
Cover, Hinge (2)
26
Rack, Oven (2)
29
Oven, 30“ Standard (Not Serviceable)
30
Panel, End (2) (White)
30
Panel, End (2) (Almond)
30
Panel, End (2) (Toast)
30
Panel, End (2) (Platinum)
33
Spring, Oven Door (2)
35
Seal, Oven Door (Side (2))
35
Seal, Oven Door (Top)
36
Screw, Leveling (4)
38
Plate, Oven Bottom
39
Front, Main
41
Back, Main
42
Bottom, Main
44
Runner, Base (Right Side)
44
Runner, Base (Left Side)
45
Deflector, Vent
←
