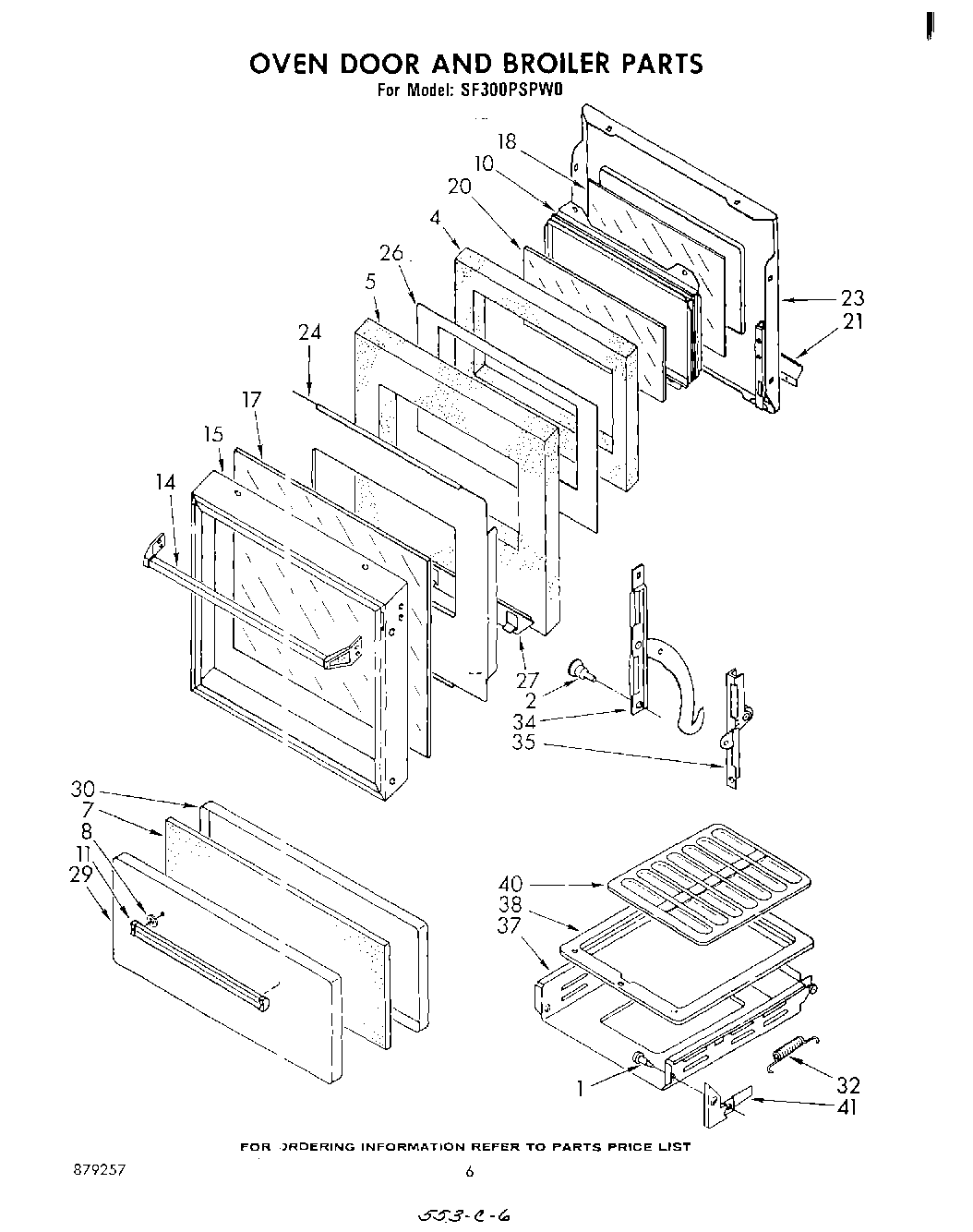

SF300PSPW0 04 – OVEN DOOR AND BROILER

Products

PositionProduct
1Bolt, Shoulder 10-24 x 7/16
2Bolt, Shoulder 10-24 x 7/16 (2)
4Insulation, Oven Door
5WPW10208653 Whirlpool Insulation
7Insulation, Broiler Door
8Spacer, Broiler Door Handle (3)
10Frame, Window
11Handle, Broiler Door
14Handle, Door
15Frame, Door
17Glass, Oven Door Outside
18Glass, Oven Door Inside
20Glass, Oven Door Center
21Strip, Door Seal
23Lining, Oven Door
24Baffle, Door
26Shield, Heat
27Retainer, Insulation
29Panel, Broiler Door (Platinum)
29Panel, Broiler Door (White)
29Panel, Broiler Door (Almond)
29Panel, Broiler Door (Toast)
30Lining, Broiler Door
32Spring, Broiler Door (2)
34Hinge, Oven Door (2)
35Support, Oven Door (Right Side)
35Support, Oven Door (Left Side)
37Drawer, Broiler
38Pan, Broiler
40Tray, Broiler Pan
41Hinge, Broiler Door (Left Side)
41Hinge, Broiler Door (Right Side)
