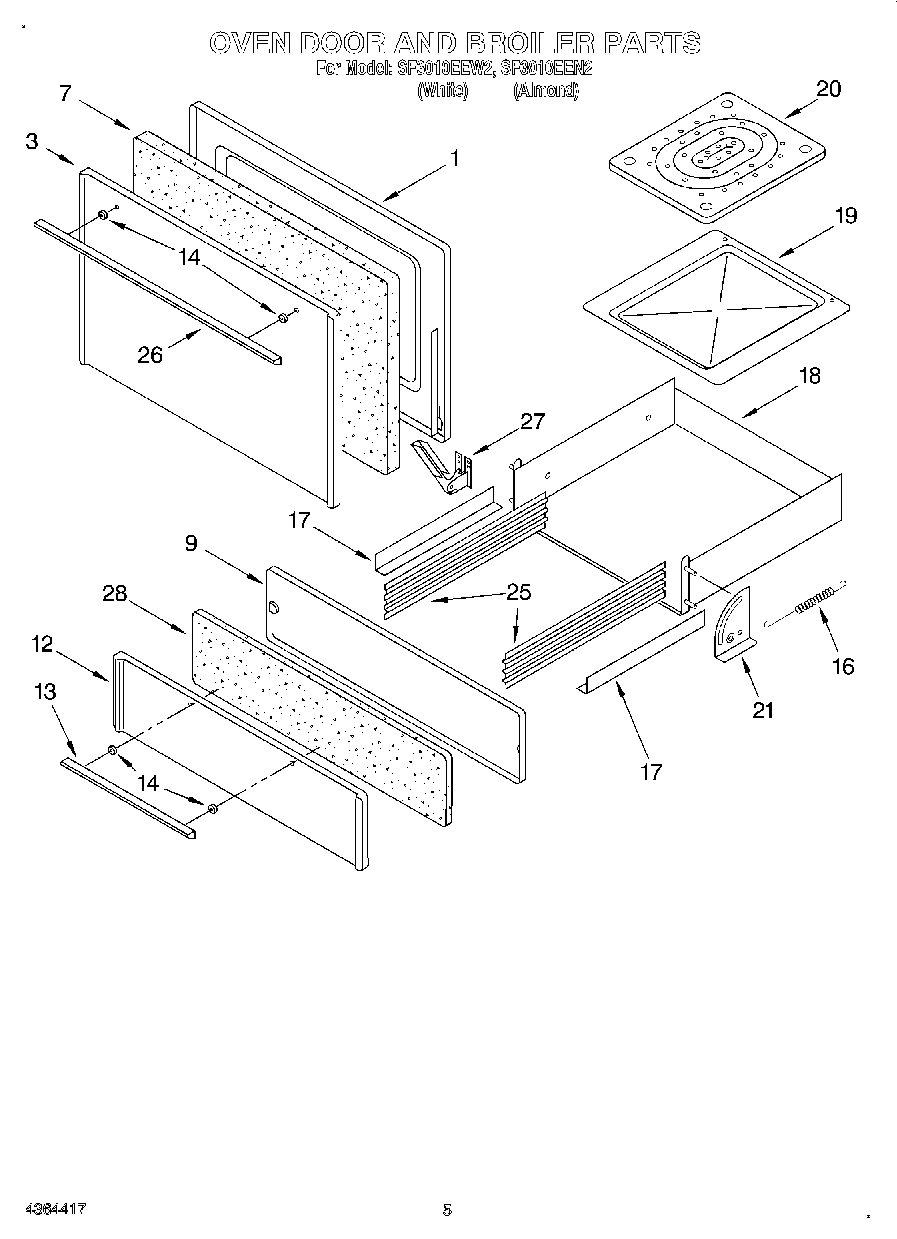

SF3010EEN2 03 – OVEN DOOR & BROILERadmin2025-04-26T11:19:50+00:00SF3010EEN2 03 – OVEN DOOR & BROILER
Products
| Position | Product |
|---|
| 1 | Liner, Door |
| 3 | Panel, Oven Door (White) |
| 3 | Panel, Oven Door (Almond) |
| 7 | Insulation, Door |
| 9 | Liner, Brlr Drawer |
| 12 | Panel, Broiler Door (White) |
| 12 | Panel, Broiler Door (Almond) |
| 13 | Handle, Drawer |
| 14 | Screw, 10-24 x 3/8 |
| 14 | Spacer, Handle |
| 16 | Spring, Broiler |
| 17 | Broiler Drawer Runner (Right) |
| 17 | Broiler Drawer Runner (Left) |
| 18 | Liner, Broiler |
| 19 | Broiler Pan |
| 20 | Grill, Broiler |
| 21 | Hinge, Broiler (Screw, 10-24 x 3/8) |
| 21 | Hinge, Broiler (Right) |
| 21 | Hinge, Broiler (Left) |
| 21 | WP488130 Whirlpool Air Conditioner Nut |
| 25 | Glide, Broiler Pan |
| 26 | Handle, Oven Door |
| 27 | Hinge, Oven Door |
| 28 | Insulation, Broiler Drawer |
