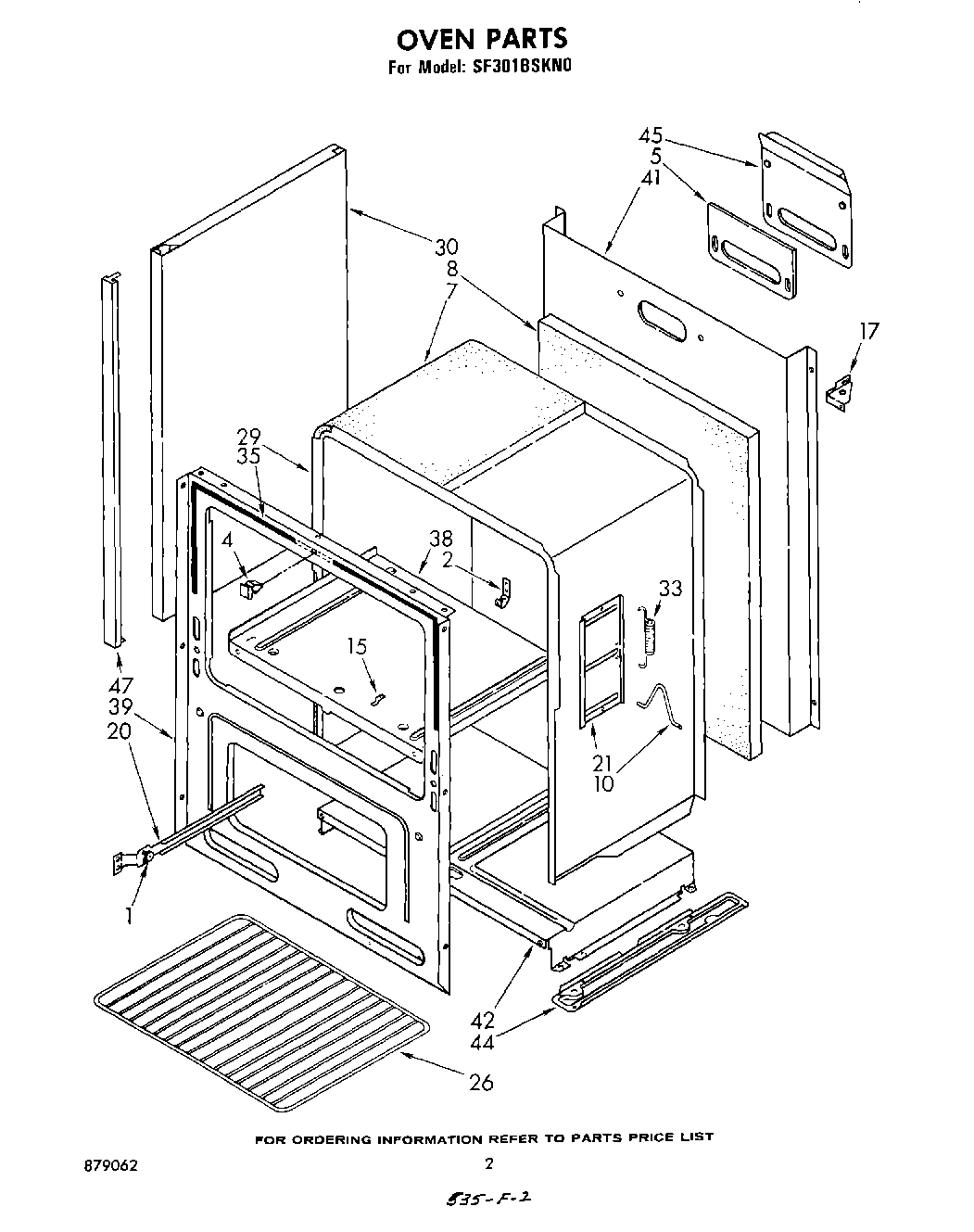

SF301BSKN0 02 – OVEN , LITERATURE

Products

PositionProduct
1Bearing, Roller (4)
298005642 Whirlpool Clip
4Clip, Door Seal
5Gasket, Vent Deflector
7WPW10208653 Whirlpool Insulation
10Link, Oven Door Spring (2)
15Clip, Oven Bottom Plate (2)
17Bracket, Corner Support (Left Side)
17Bracket, Corner Support (Right Side)
20Track, Broiler (Left Side)
20Track, Broiler (Right Side)
21Cover, Hinge (2)
26Rack, Oven (2)
29Oven, 30“ Standard (Not Serviceable)
30Panel, End (2) (Almond)
33Spring, Oven Door (2)
35Seal, Oven Door (Top)
35Seal, Oven Door (Side (2))
38Plate, Oven Bottom
39Front, Main
41Back, Main
42Bottom, Main
44Runner, Base (Left Side)
44Runner, Base (Right Side)
45Deflector, Vent
47Instructions, Installation
47Booklet, Use & Care
47Diagram, Wiring
47Pan, Broiler
47List, Repair Parts
