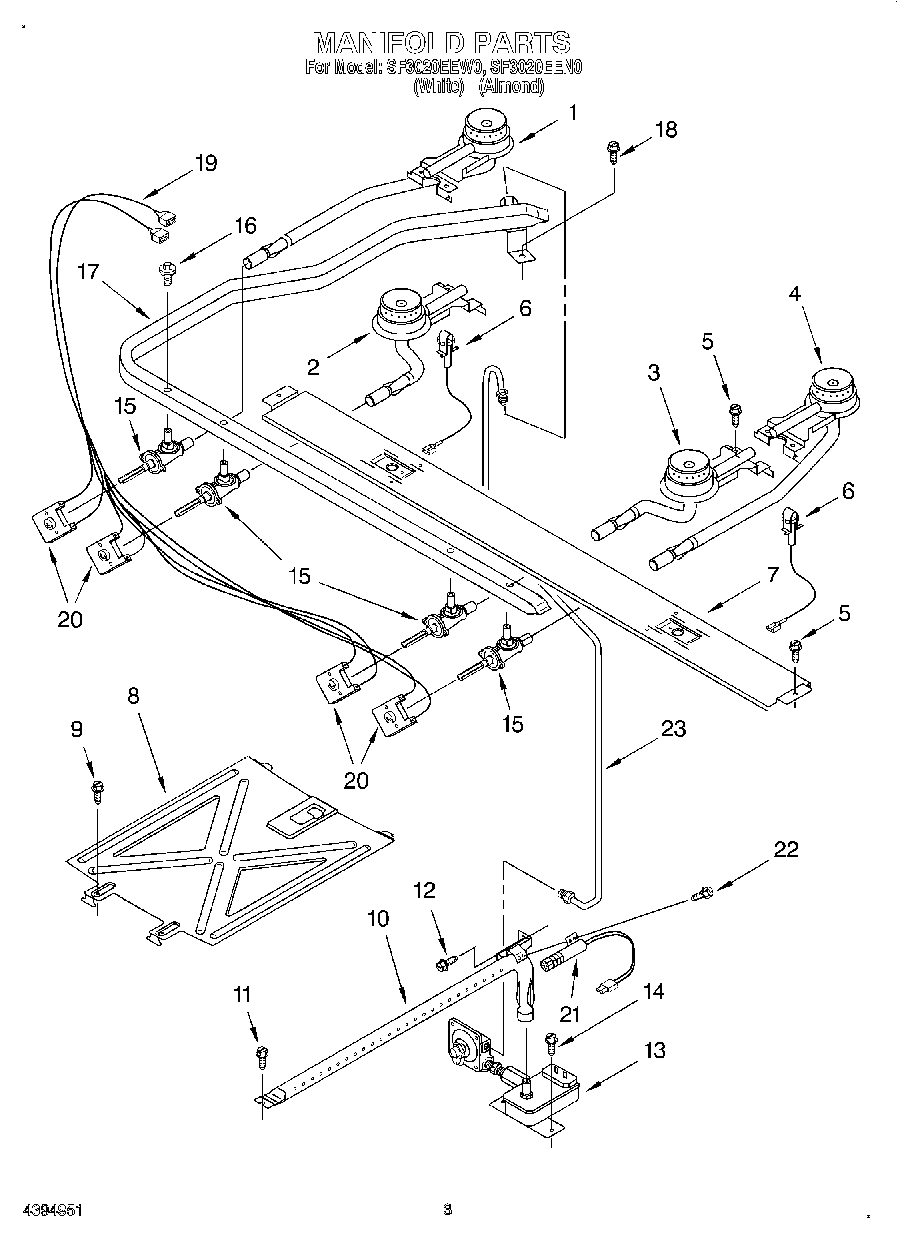

SF3020EEN0 03 – MANIFOLD

Products

Position	Product
1	Burner (Left Rear)
2	Burner, Left Front
3	Burner (Right Front)
4	Burner (Right Rear)
5	WP3196175 Whirlpool Screw
6	Igniter, Surface (Right Hand)
6	Ignitor, Surface (Left)
7	Support, Burner
8	Spreader, Flame
10	Burner, Oven
11	SCREW
12	3196265 Whirlpool Oven Screw
13	Valve, Gas Combo
15	Valve, Burner (4)
16	WP3186217 Whirlpool Screw
17	Pipe, Manifold
19	Harness, Igniter (Incl. Switches)
20	Switch, Igniter (4)
21	Igniter, Bake/Broil
22	W11684507 Whirlpool Screw
23	Tubing (Manifold to Regulator)
