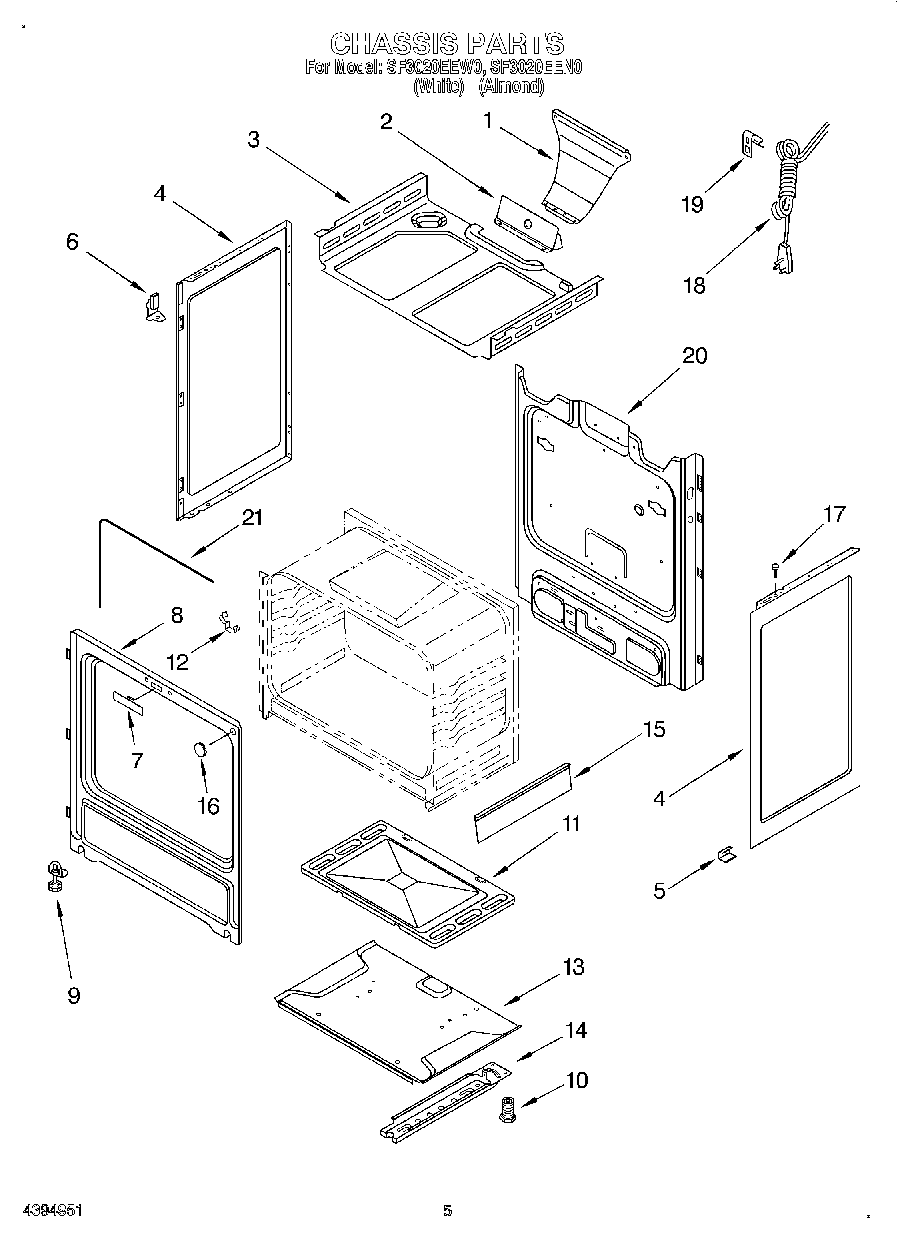

| 1 | W11457094 Whirlpool Oven Flue |
| 2 | WP8272747 Whirlpool Heat Shield |
| 3 | Burner Box |
| 4 | Panel, Side (2) (Almond) |
| 4 | Panel, Side (2) (White) |
| 4 | Screw |
| 5 | Clip, Panel (6) |
| 6 | Brkt, Manifold Mtg (Left Hand) |
| 6 | Brkt, Manifold Mtg (Right Hand) |
| 7 | Plug, Frame |
| 8 | Frame, Front |
| 8 | SCREW |
| 9 | WP3196037 Whirlpool Leveling Foot |
| 10 | WPW10058460 Whirlpool Appliance Levelling Leg |
| 11 | Screw |
| 11 | WP3195097 Whirlpool Oven Bottom |
| 12 | 98005642 Whirlpool Clip |
| 13 | Baffle, Base |
| 14 | WPW10306546 Whirlpool Base Rail |
| 14 | WP3196557 Whirlpool Screw |
| 15 | Shield, Lower |
| 16 | Plug Button |
| 17 | 238614 Whirlpool Bumper Hinge |
| 18 | WP9757891 Whirlpool Power Cord |
| 19 | 549193 Whirlpool Refrigerator Power Clamp |
| 19 | W11244557 Whirlpool Screw |
| 20 | Back, Main |
| 21 | WPW10208653 Whirlpool Insulation |
| 21 | TIE,WIRE |
| 21 | W11688737 Whirlpool Insulation |
| 21 | W11542153 Whirlpool Door Gasket |
