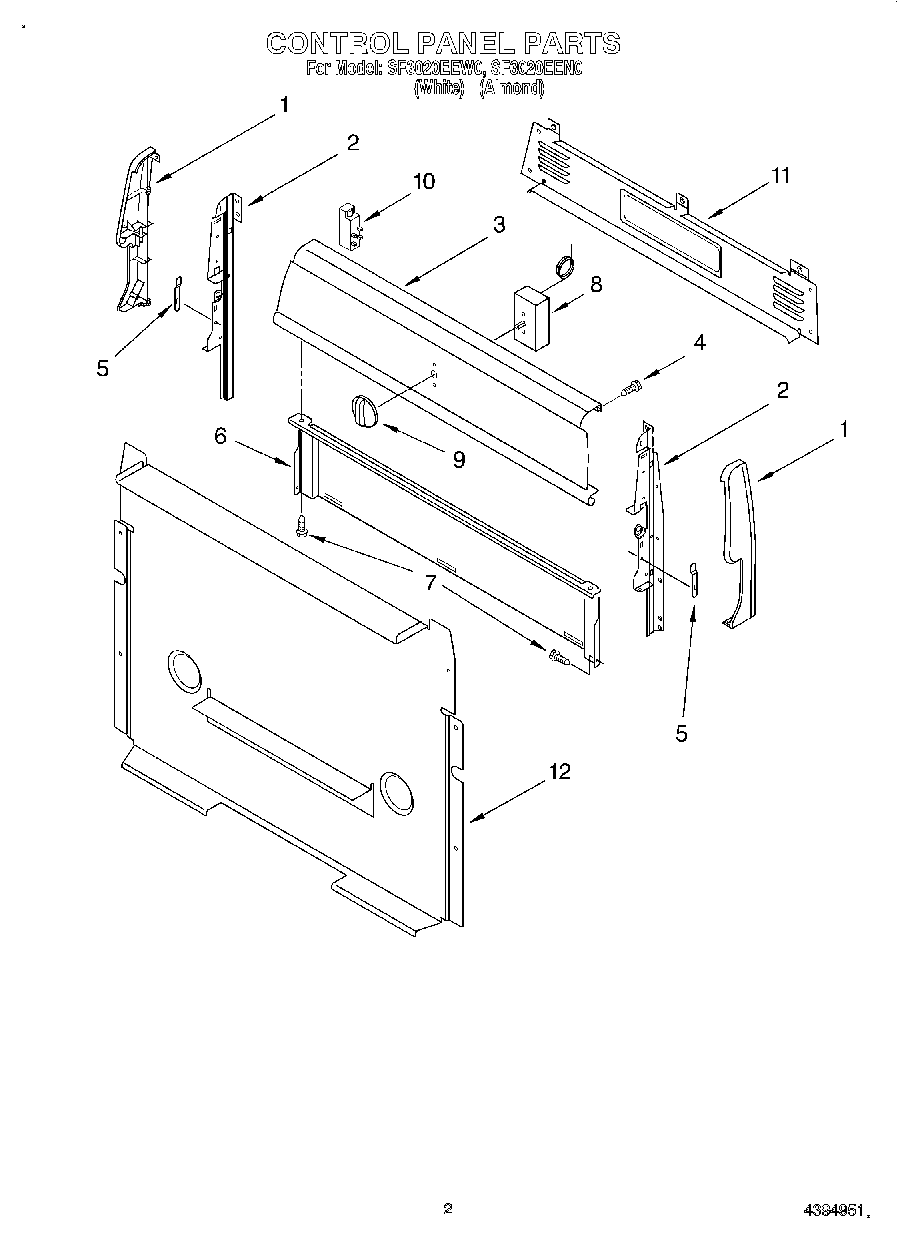

SF3020EEW0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap, Right Hand (Black)
1Endcap (Black Left Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard
53196200 Whirlpool Clip
6Shield, Heat
7Screw
8Thermostat
8Switch, Infinite (Screw (8))
9Knob, Thermostat
10WPY706189 Whirlpool Stove Screw
10Module, Spark
11Cover, Upper
12SCREW
12Cover, Lower
