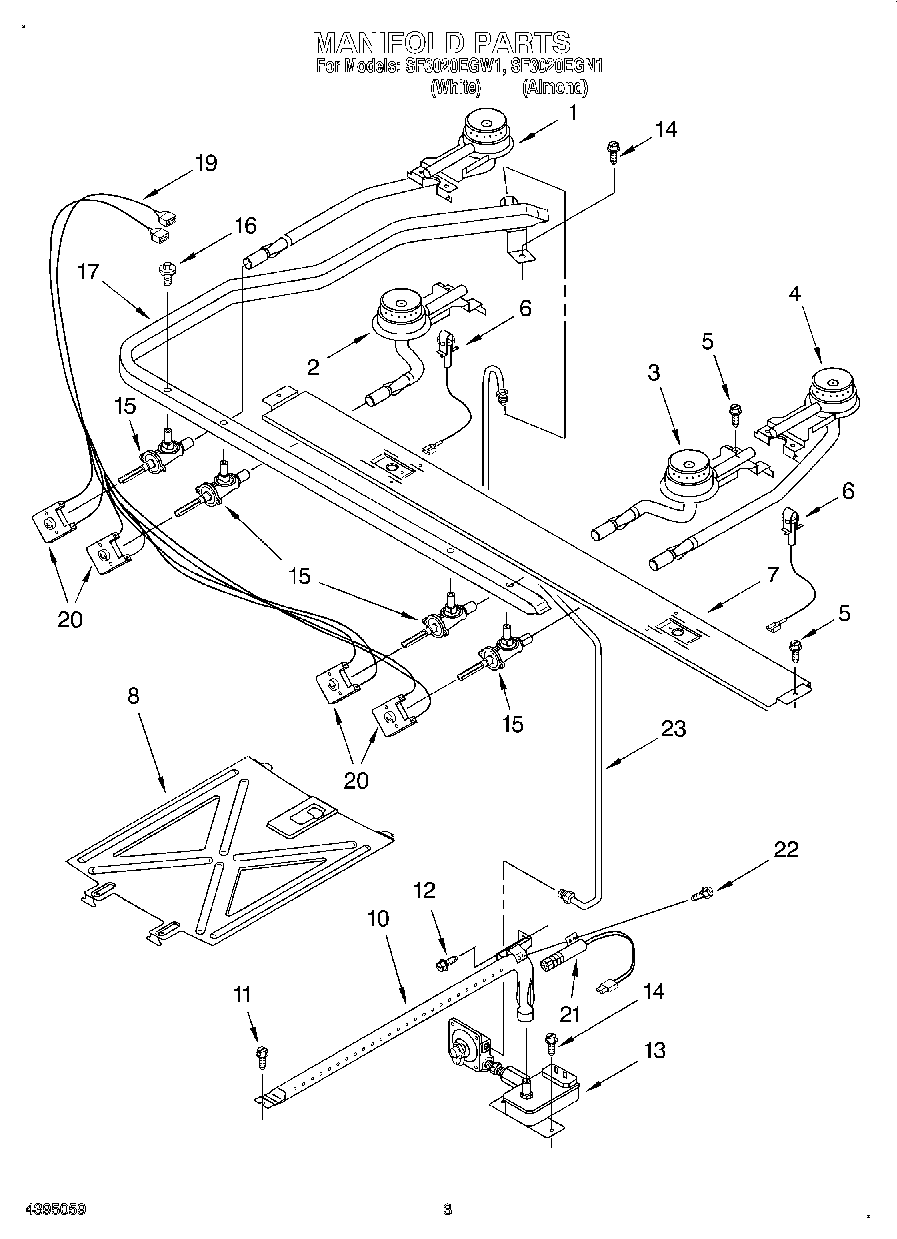

SF3020EGN1 03 – MANIFOLD

Products

PositionProduct
1Burner (Left Rear)
2Burner, Left Front
3Burner (Right Front)
4Burner (Right Rear)
5WP3196175 Whirlpool Screw
6Ignitor, Surface (Left)
6Igniter, Surface (Right Hand)
7Support, Burner
8Spreader, Flame (Oven)
10Burner, Oven
11SCREW
123196265 Whirlpool Oven Screw
13Valve, Gas Combo
15Valve, Burner (4)
16WP3186217 Whirlpool Screw
17Pipe, Manifold
19Harness, Igniter
20Switch, Spark
21Igniter, Bake/Broil
22W11684507 Whirlpool Screw
23Tubing (Manifold to Regulator)
23Spud Kit-Set of 4 (LP to Nat)
