SF3020EKN0 05 – OVEN AND BROILER

SF3020EKN0 05 – OVEN AND BROILER

Written by

in

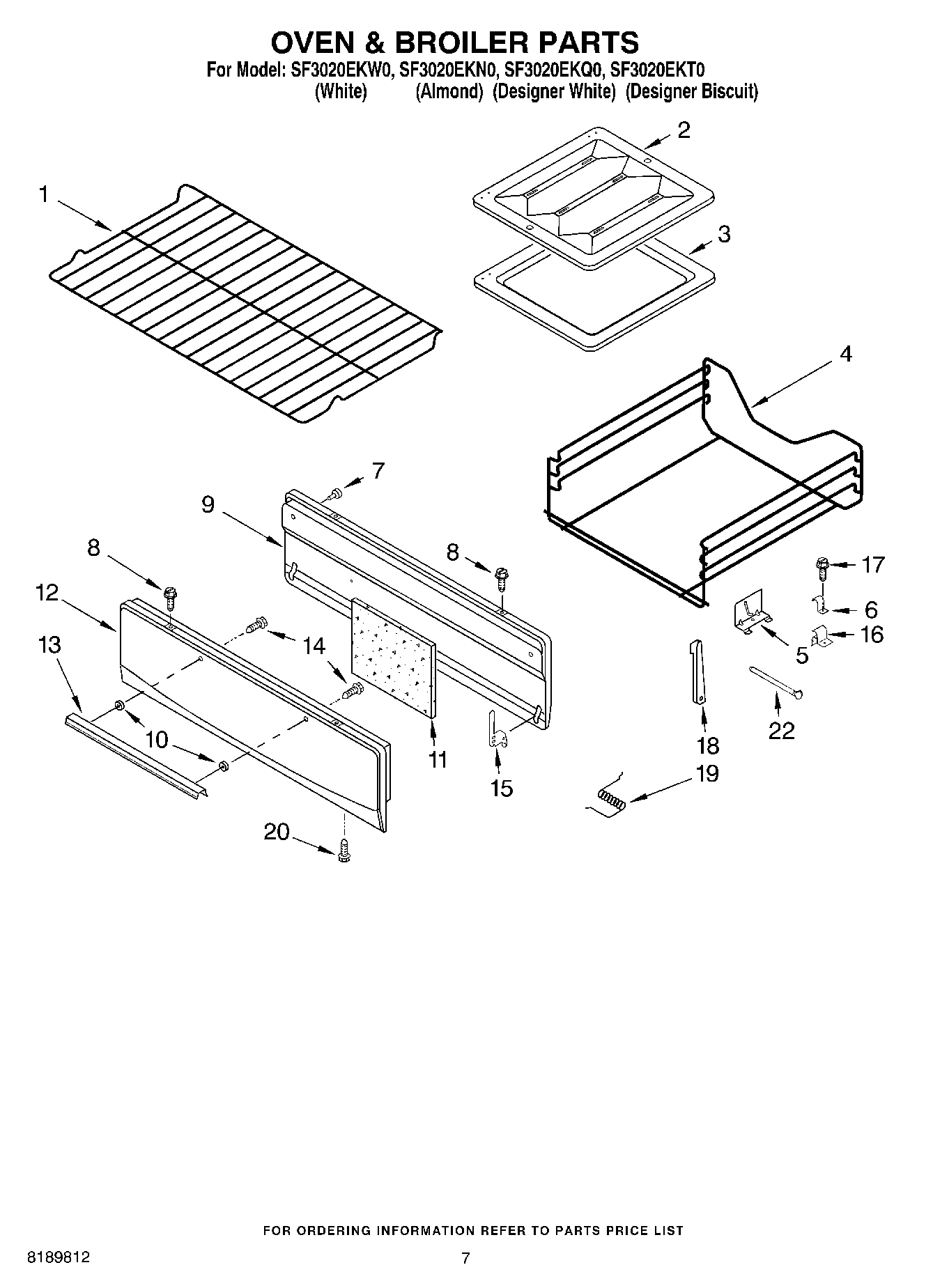

SF3020EKN0 05 – OVEN AND BROILER

Products

Position	Product
1	Rack, Oven (2)
2	WP98003480 Whirlpool Grill Pan
3	WP98016005 Whirlpool Broiler Pan
4	Rack, Broiler
5	Bracket, Rack
6	98004715 Whirlpool Drawer Guide
7	BUMPER, DOOR
8	Screw (Almond)
8	Screw (Biscuit)
8	3196166 Whirlpool Screw
9	Liner, Door
10	Spacer, Handle
11	Insulation, Door
12	Panel, Door (White)
12	Panel, Door (Biscuit)
12	Panel, Door (Almond)
13	Handle, Brlr Door (Almond)
13	Handle, Brlr Door (Biscuit)
13	Handle, Brlr Door (White)
14	Screw
15	W11499074 Whirlpool Hinge Bracket
16	98008341 Whirlpool Clip
17	W10837731 Whirlpool Screw Assembly
18	Support, Hinge
19	Spring, Broiler (Left Hand)
19	Spring, Broiler (Right Hand)
20	WP3400805 Whirlpool Screw Assembly
22	98004053 Whirlpool Oven Hinge Pin
