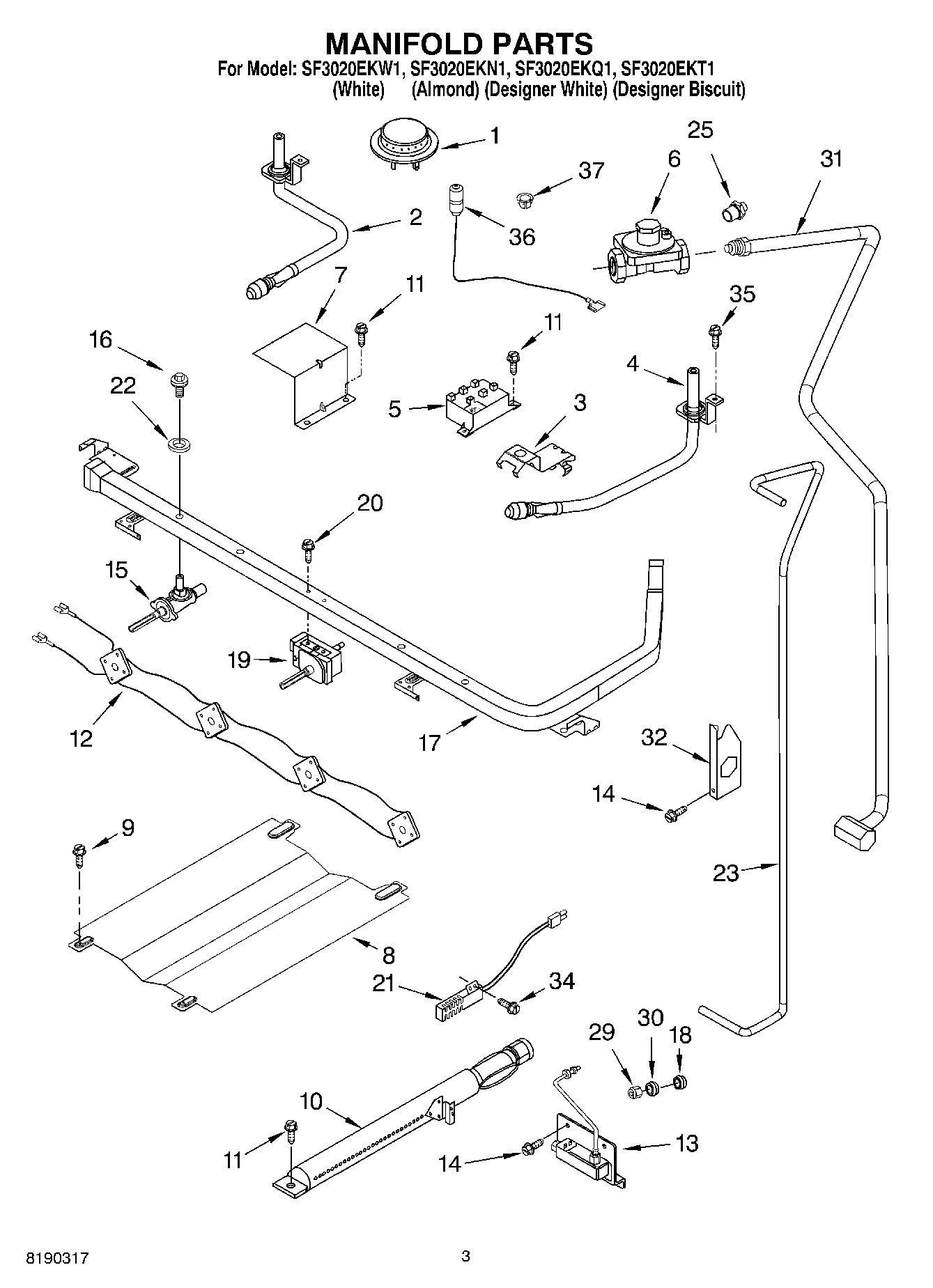

SF3020EKN1 03 – MANIFOLD PARTS

Products

Position	Product
1	WP98004410 Whirlpool Top Burner
2	WP6610243 Whirlpool Venturi
3	Brkt., Venturi (4)
4	WP6610244 Whirlpool Venturi Assembly
5	W11590249 Whirlpool Spark Module
6	Regulator
7	98007192 Whirlpool Cover Model
8	Spreader, Flame
9	SCREW
10	Burner, Oven
12	Harness, Switch
13	Valve, Oven
14	W10837731 Whirlpool Screw Assembly
15	Valve, Burner (4) (9,500 BTU)
16	WPW10277003 Whirlpool Screw
17	Pipe, Manifold
18	Sleeve, 3/8“
19	WPW10641988 Whirlpool Oven Thermostat
20	WP3400882 Whirlpool Screw
21	W10918546 Whirlpool Oven Range Igniter
22	Washer, Valve (4)
23	Tubing (Regltr to Oven Valve)
25	Nut, Loxit
29	Fitting, Tube
30	Fitting, Female
31	Tubing, Inlet
32	Bracket, Inlet
34	W11676351 Whirlpool Screw
35	W10837674 Whirlpool Screw
36	WPW10209657 Whirlpool Oven Surface Igniter
36	WPW10209656 Whirlpool Surface Ignitor
37	LP Spud Kit (For Use With LP)
37	Natural Spud Kit (For use with Natural Gas)
37	Washer, Cut-Off
37	WPW10278150 Whirlpool Clip Assembly
37	FOLLOWING PARTS NOT ILLUSTRATED
