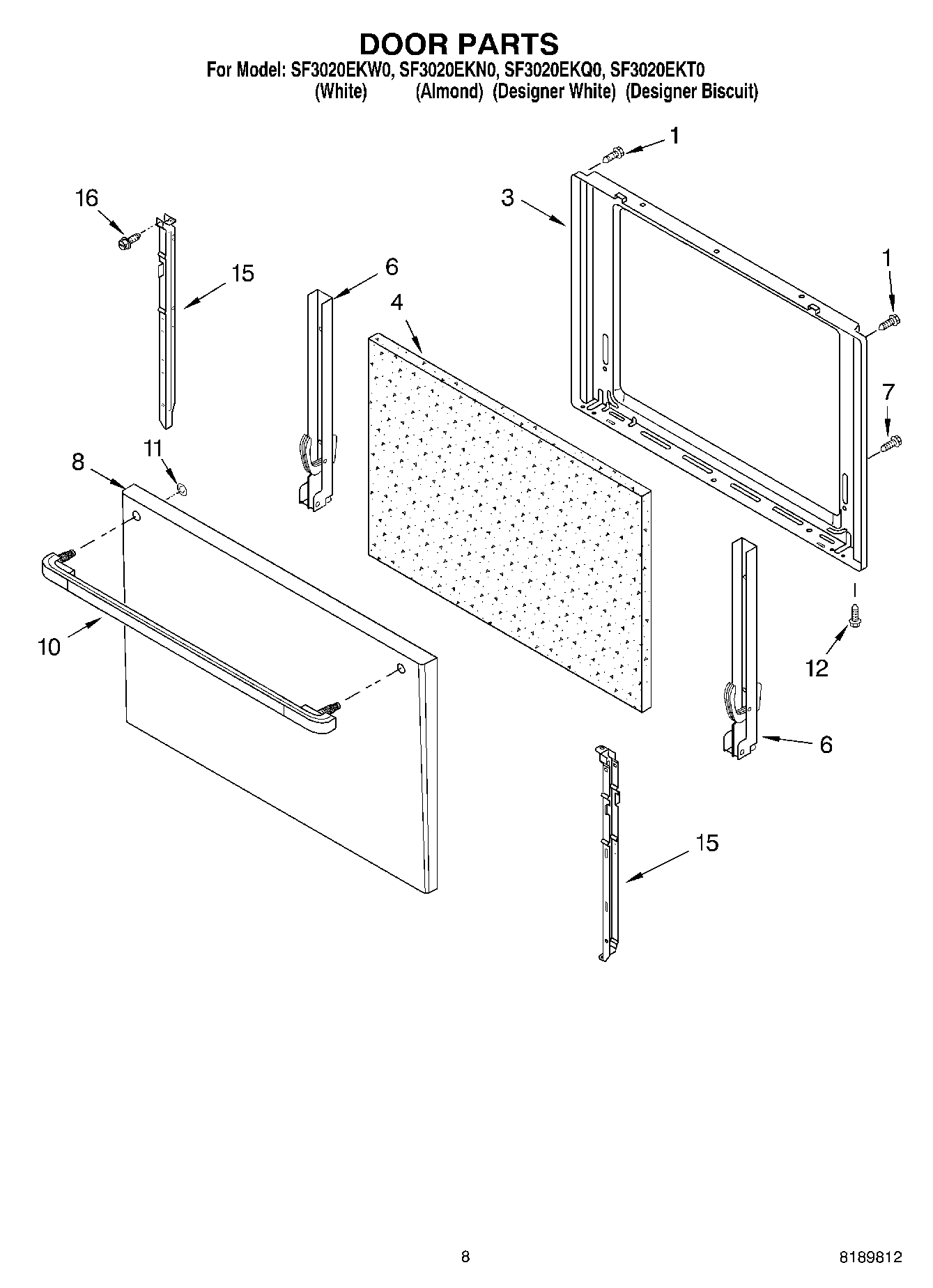

SF3020EKQ0 06 – DOOR

Products

Position	Product
1	WP98004218 Whirlpool Screw
3	Liner, Door
4	Insulation, Door
6	Hinge, Door (2)
7	W11206744 Whirlpool Screw
8	Panel, Oven Door (White)
8	Panel, Oven Door (Biscuit)
8	Panel, Oven Door (Almond)
10	WP98006181 Whirlpool Door Handle
10	W10819915 Whirlpool Door Handle
10	Handle, Oven Door (Biscuit)
11	WP98004650 Whirlpool Nut
12	WP59002061 Whirlpool Microwave Screw
15	98004629 Whirlpool Oven Retainer
15	98004564 Whirlpool Oven Retainer
16	Harness, Switch
16	1
16	WP3400805 Whirlpool Screw Assembly
16	8212471 Whirlpool Oven Paint
16	Grease
16	WP9757891 Whirlpool Power Cord
16	98017831 Whirlpool Oven Anchor Tip
16	WPL 98007373
16	350930 Whirlpool White Spray Paint
16	Wire (14 Ga. 200 c Brown)
16	18 Ga. 80~c Rating (Red)
16	FOIL, ALUMINUM OVEN (18“ X 25 )
16	WPW10208653 Whirlpool Insulation
16	WPL 799832
16	511873 Whirlpool Refrigerator Paint
16	350942 Whirlpool Spray Paint
16	Almond (Uncut)
16	WP72107 Whirlpool Touchup
16	799344 Whirlpool Refrigerator Paint
16	72017 Whirlpool Appliance Touch-Up Paint White
16	Wire, 25` Roll (Black 14 Ga.)
16	Wire, 25` Roll (Red 14 Ga.)
16	Wire, 25“ Roll (White 14 GA.)
16	Wire (12 Ga. 150 c Black)
16	Wire (14 Ga. 150 c Yellow)
16	Wire (14 Ga. 150 c Orange)
16	Wire (14 Ga. 150 c Green)
16	Wire (14 Ga. 150 c Brown)
16	Wire (14 Ga. 150 c Blue)
16	242831 Whirlpool Oven Wire
16	814381 Whirlpool Pin
16	285006 Whirlpool Spray
16	350956 Whirlpool Spray Assembly
