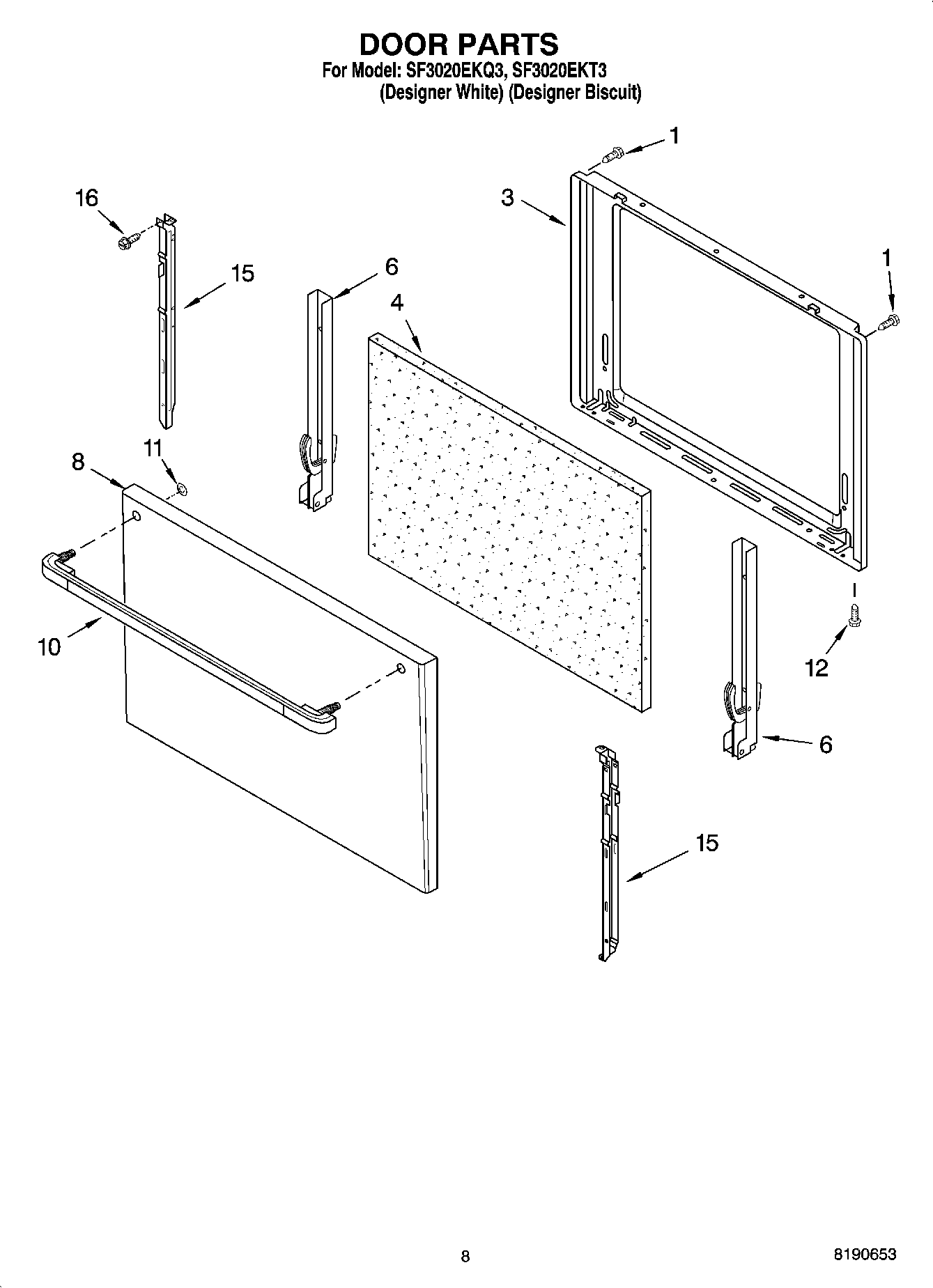

SF3020EKQ3 06 – DOOR PARTS, MISCELLANEOUS PARTS

Products

Position	Product
	WPL ARI129294A
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 200 c Brown)
	8212471 Whirlpool Oven Paint
	3196696 Whirlpool Clip
	Grease
	WPL 8316781
	98015022 Whirlpool Bushing Assembly
	WP3391018 Whirlpool Wire Tie
	WPW10477747 Whirlpool Anchor Tip
	WPL ARI129295A
	98014534 Whirlpool Wire Harness
	WPL ARI129289A
	WPL ARI129290A
	WPL ARI129291A
	WPL ARI129292A
	WPL ARI129293A
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	4392901 Whirlpool Biscuit Spray Paint
	4392899 Whirlpool Biscuit Touch-Up Paint
	350942 Whirlpool Spray Paint
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	549193 Whirlpool Refrigerator Power Clamp
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	WPL 799832
	WPW10208653 Whirlpool Insulation
	Wire, 25` Roll (Red 14 Ga.)
	285006 Whirlpool Spray
	814381 Whirlpool Pin
	350930 Whirlpool White Spray Paint
	242831 Whirlpool Oven Wire
	Wire (14 Ga. 150 c Blue)
	Wire (14 Ga. 150 c Brown)
	511873 Whirlpool Refrigerator Paint
1	Screw
3	Liner, Door
4	Insulation, Door
6	Hinge, Door (2)
8	Panel, Oven Door (Biscuit)
8	Panel, Oven Door (White)
10	WP98006181 Whirlpool Door Handle
10	Handle, Oven Door (Biscuit)
11	WP98004650 Whirlpool Nut
12	WP59002061 Whirlpool Microwave Screw
15	98004629 Whirlpool Oven Retainer
15	98004564 Whirlpool Oven Retainer
16	WP3400805 Whirlpool Screw Assembly
