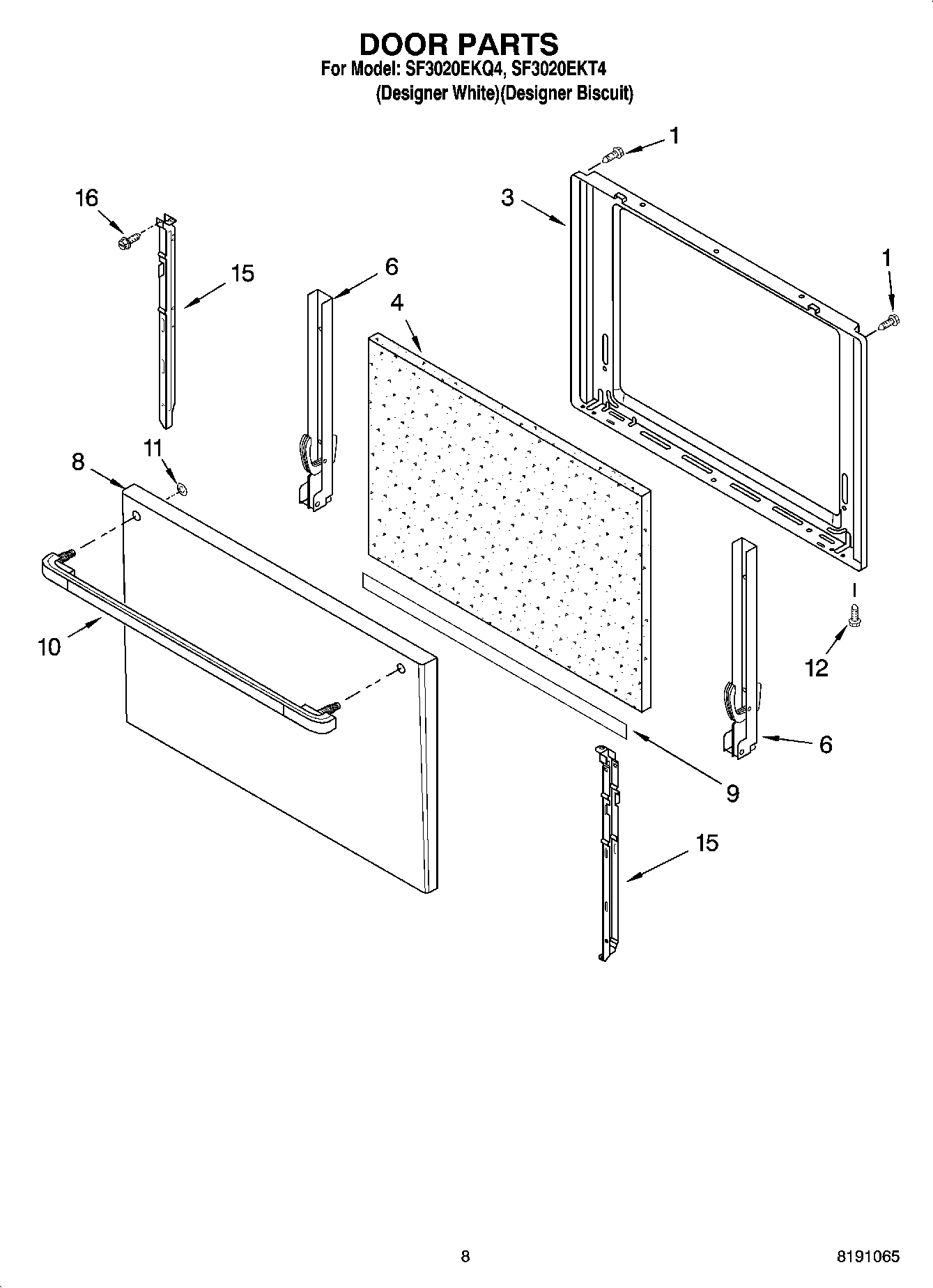

SF3020EKQ4 06 – DOOR PARTS, OPTIONAL PARTS

SF3020EKQ4 06 – DOOR PARTS, OPTIONAL PARTS

Written by

in

SF3020EKQ4 06 – DOOR PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI129303A
Wire (14 Ga. 150 c Yellow)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 200 c Brown)
8212471 Whirlpool Oven Paint
3196696 Whirlpool Clip
Grease
WPL 8316781
98015022 Whirlpool Bushing Assembly
WP3391018 Whirlpool Wire Tie
WPW10477747 Whirlpool Anchor Tip
WPL ARI129304A
98014534 Whirlpool Wire Harness
WPL ARI129298A
WPL ARI129299A
WPL ARI129300A
WPL ARI129301A
WPL ARI129302A
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
511873 Whirlpool Refrigerator Paint
4392899 Whirlpool Biscuit Touch-Up Paint
350942 Whirlpool Spray Paint
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
549193 Whirlpool Refrigerator Power Clamp
PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
WPL 799832
WPW10208653 Whirlpool Insulation
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
4392901 Whirlpool Biscuit Spray Paint
242831 Whirlpool Oven Wire
350930 Whirlpool White Spray Paint
814381 Whirlpool Pin
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
1Screw
3Liner, Door
4Insulation, Door
6Hinge, Door (2)
8Panel, Oven Door (White)
8Panel, Oven Door (Biscuit)
9Retainer, Upper (2)
10WP98006181 Whirlpool Door Handle
10Handle, Oven Door (Biscuit)
11WP98004650 Whirlpool Nut
12WP59002061 Whirlpool Microwave Screw
1598004629 Whirlpool Oven Retainer
1598004564 Whirlpool Oven Retainer
16WP3400805 Whirlpool Screw Assembly
