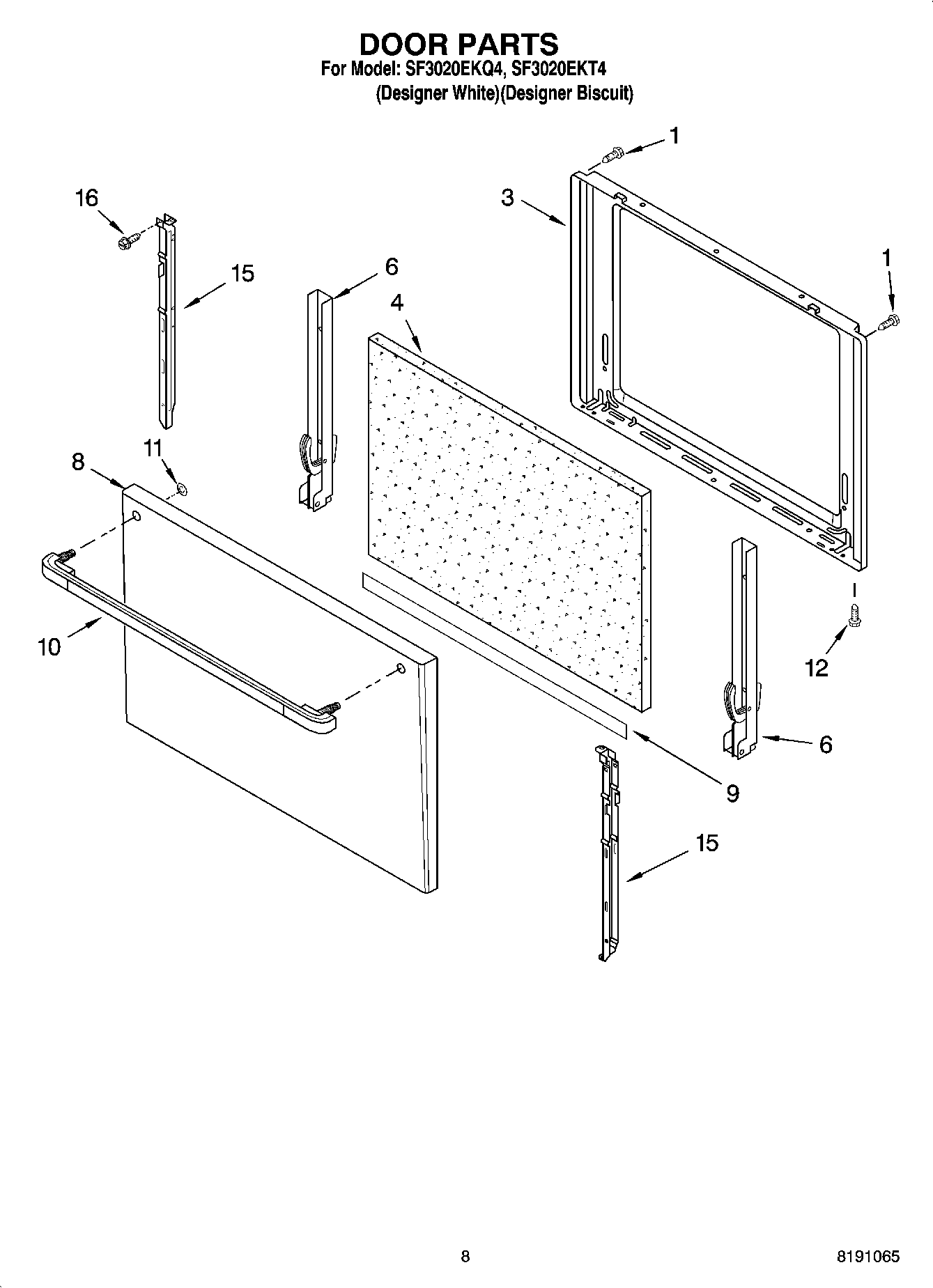

SF3020EKT4 06 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	98014534 Whirlpool Wire Harness
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 200 c Brown)
	8212471 Whirlpool Oven Paint
	3196696 Whirlpool Clip
	Grease
	WPL 8316781
	98015022 Whirlpool Bushing Assembly
	WP3391018 Whirlpool Wire Tie
	WPW10477747 Whirlpool Anchor Tip
	WPL ARI129334A
	WPL ARI129335A
	WPL ARI129336A
	WPL ARI129337A
	WPL ARI129338A
	WPL ARI129339A
	WPL ARI129340A
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	4392901 Whirlpool Biscuit Spray Paint
	511873 Whirlpool Refrigerator Paint
	350942 Whirlpool Spray Paint
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350930 Whirlpool White Spray Paint
	549193 Whirlpool Refrigerator Power Clamp
	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
	WPL 799832
	WPW10208653 Whirlpool Insulation
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	4392899 Whirlpool Biscuit Touch-Up Paint
	814381 Whirlpool Pin
	285006 Whirlpool Spray
	Wire, 25` Roll (Red 14 Ga.)
1	Screw
3	Liner, Door
4	Insulation, Door
6	Hinge, Door (2)
8	Panel, Oven Door (Biscuit)
8	Panel, Oven Door (White)
9	Retainer, Upper (2)
10	Handle, Oven Door (Biscuit)
10	WP98006181 Whirlpool Door Handle
11	WP98004650 Whirlpool Nut
12	WP59002061 Whirlpool Microwave Screw
15	98004564 Whirlpool Oven Retainer
15	98004629 Whirlpool Oven Retainer
16	WP3400805 Whirlpool Screw Assembly
