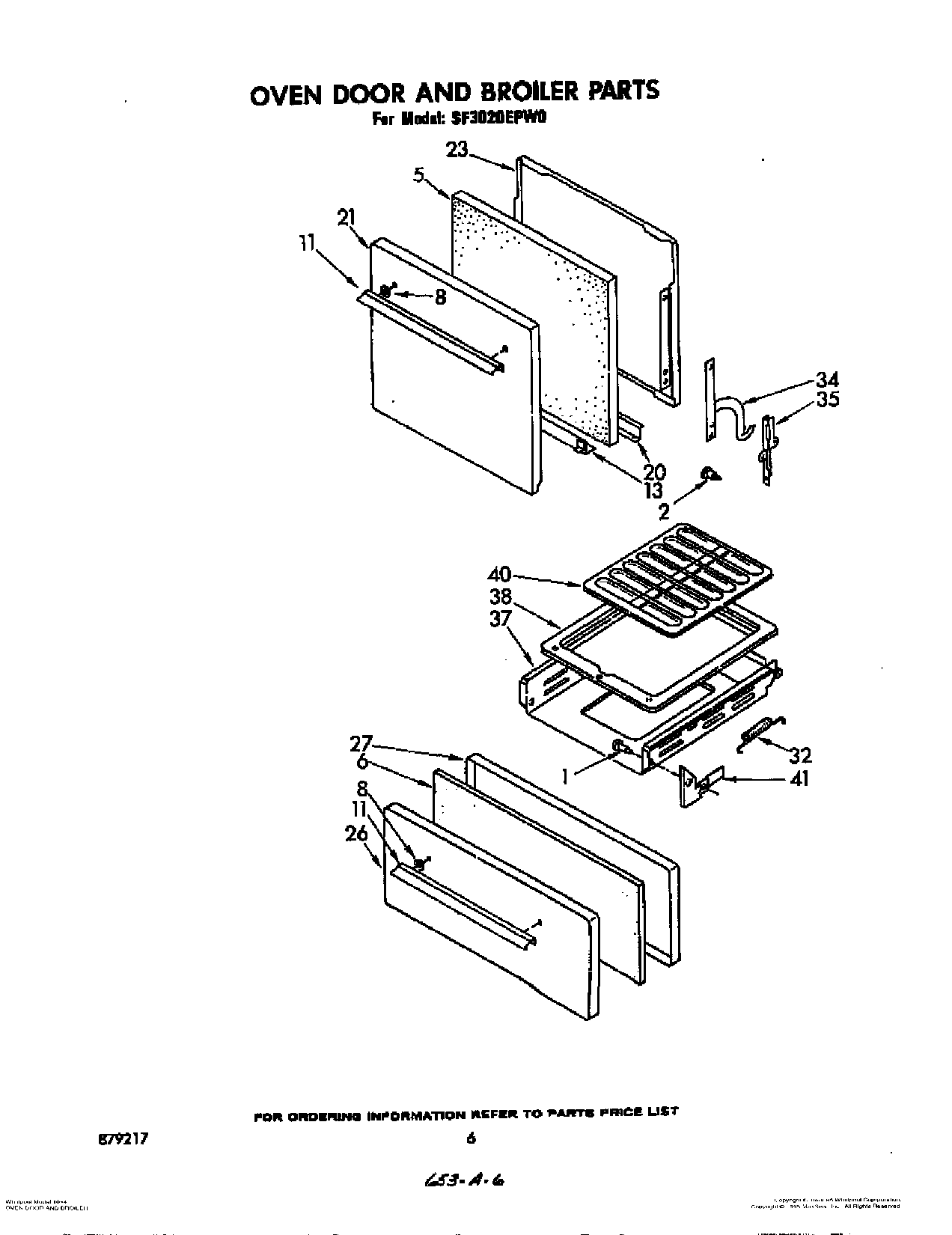

SF3020EPW0 04 – OVEN DOOR AND BROILER
Written by
in
SF3020EPW0 04 – OVEN DOOR AND BROILER
Products
Position
Product
1
Bolt, Shoulder 10-24 x 7/16
2
Bolt, Shoulder 10-24 x 7/16 (2)
5
WPW10208653 Whirlpool Insulation
6
Insulation, Broiler Door
8
Spacer, Oven Door Handle (2)
11
Handle, Broiler Door
13
Retainer, Insulation
20
Strip, Door Seal
21
Panel, Oven Door (Almond)
21
Panel, Oven Door (White)
21
Panel, Oven Door (Toast)
21
Panel, Oven Door (Platinum)
23
Lining, Oven Door
26
Panel, Broiler Door (Platinum)
26
Panel, Broiler Door (White)
26
Panel, Broiler Door (Almond)
26
Panel, Broiler Door (Toast)
27
Lining, Broiler Door
32
Spring, Broiler Door (2)
34
Hinge, Oven Door (2)
35
Support, Oven Door Hinge (Right Side)
35
Support, Oven Door Hinge (Left Side)
37
Drawer, Broiler
38
Pan, Broiler
40
Tray, Broiler Pan
41
Hinge, Broiler Door (Right Side)
41
Hinge, Broiler Door (Left Side)
←
