SF3020EPW0 06 – COOKTOP

Products

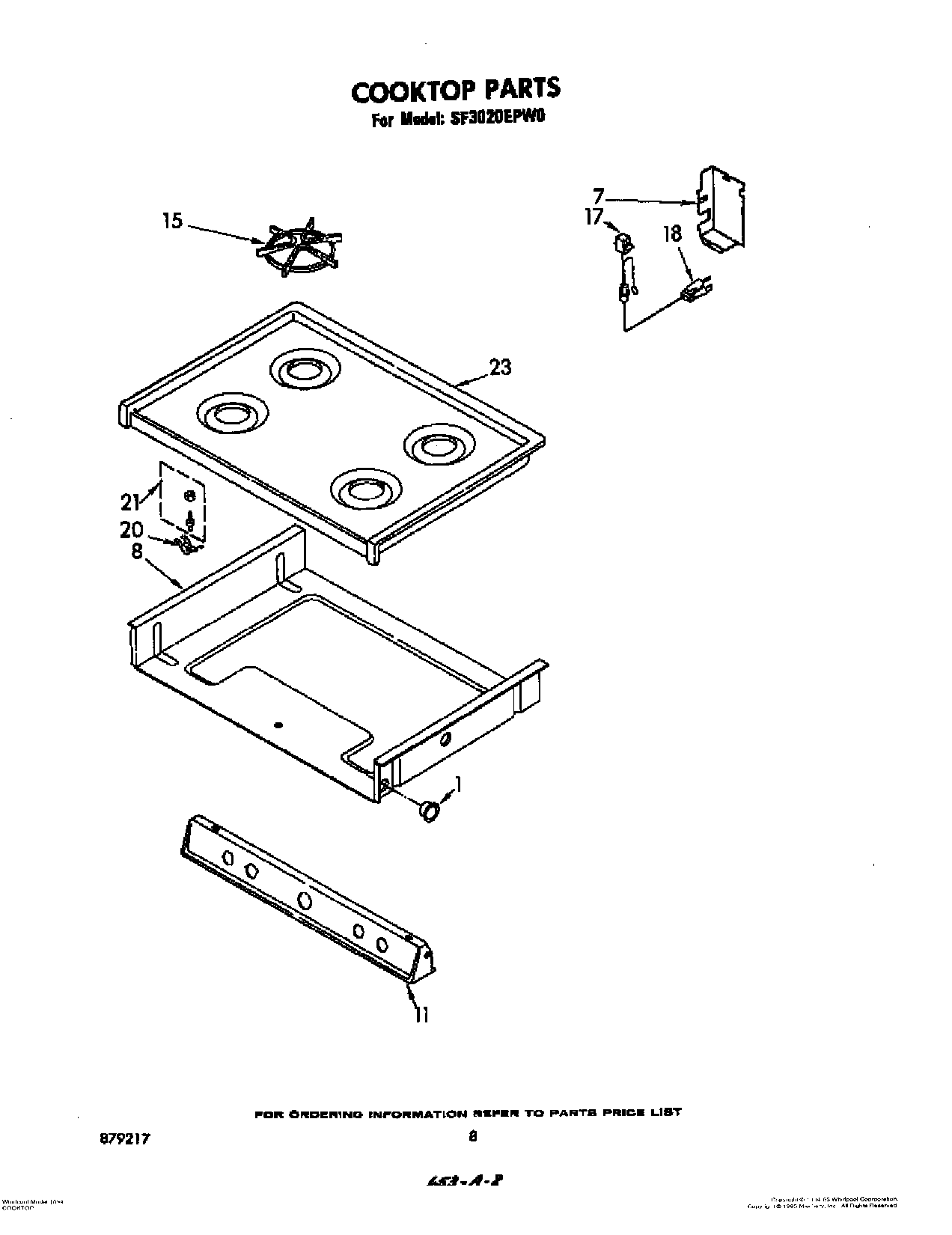

Position	Product
1	Bushing, Snap
7	Cover, Wire
8	Bottom, Burner Box
11	Panel, Manifold (Toast)
11	Panel, Manifold (Platinum)
11	Panel, Manifold (White)
11	Panel, Manifold (Almond)
15	Grate, Burner (4)
17	Block, Disconnect Socket
18	Cord, Extension
20	Catch, Main Top (2)
21	Strike, Main Top (2)
23	Top, Main (White)
23	Top, Main (Toast)
23	Top, Main (Platinum)
23	Top, Main (Almond)
