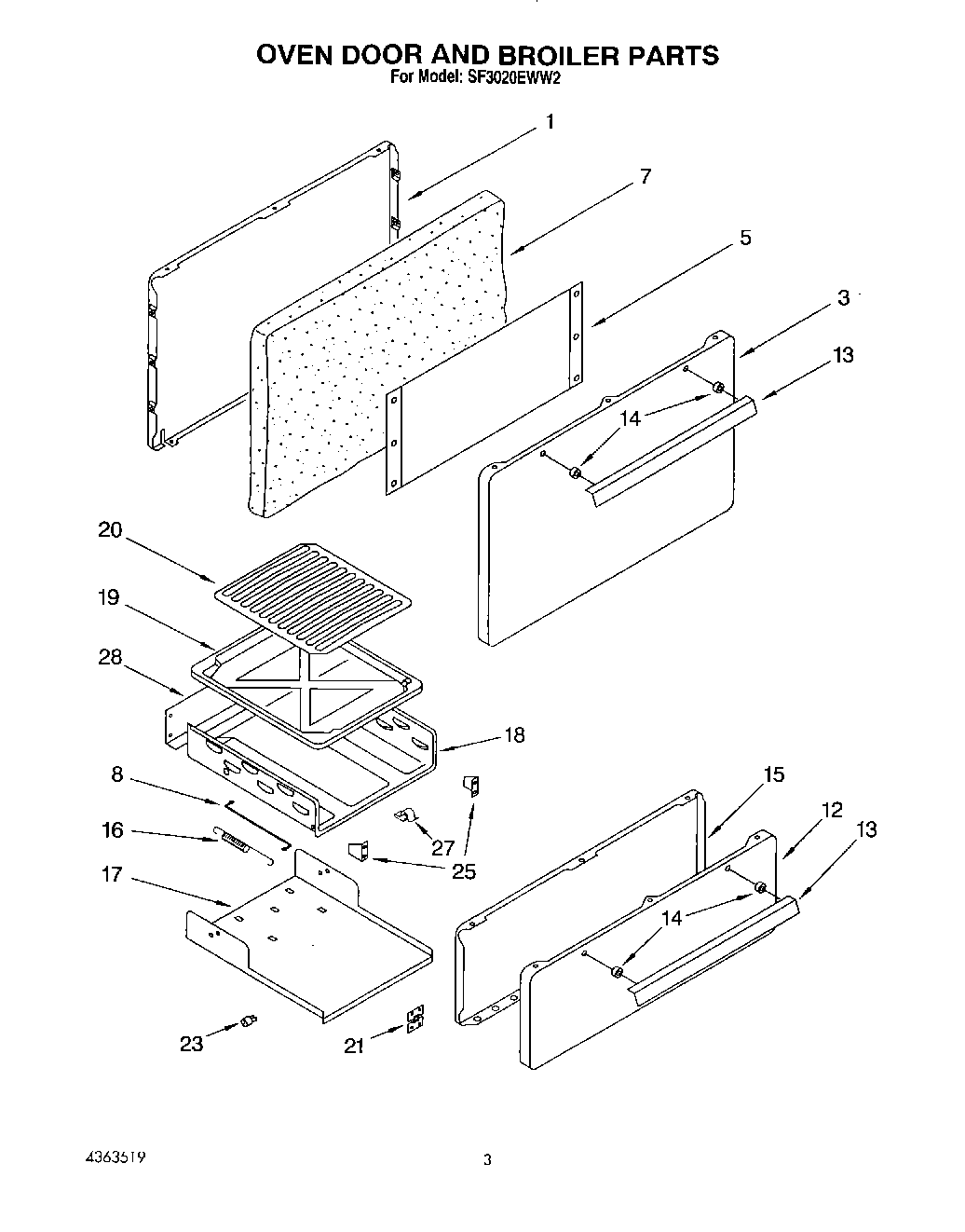

SF3020EWW2 02 – OVEN DOOR AND BROILER

Products

Position	Product
1	Liner, Door
3	Panel, Door (White)
3	Panel, Door (Almond)
5	Baffle, Oven Door
7	Insulation
7	Screw
8	Rod, Push-Pull
12	Panel, Broiler (White)
12	Panel, Broiler (Screw)
12	Panel, Broiler (Almond)
13	Handle, Door (2)
14	Screw
14	Spacer (4)
15	Liner, Broiler Door
16	Spring (2)
17	Carriage Broiler
18	Carriage, Broiler
19	4396923 Whirlpool Broil Pan Set Gray Porcelain
20	Grid
21	Hinge, Door
21	WP308685 Whirlpool Microwave Screw
23	W10709871 Whirlpool Drawer Glide
25	Bracket
27	Clip, Broiler
28	Screws (3)
28	Backer, Carriage
