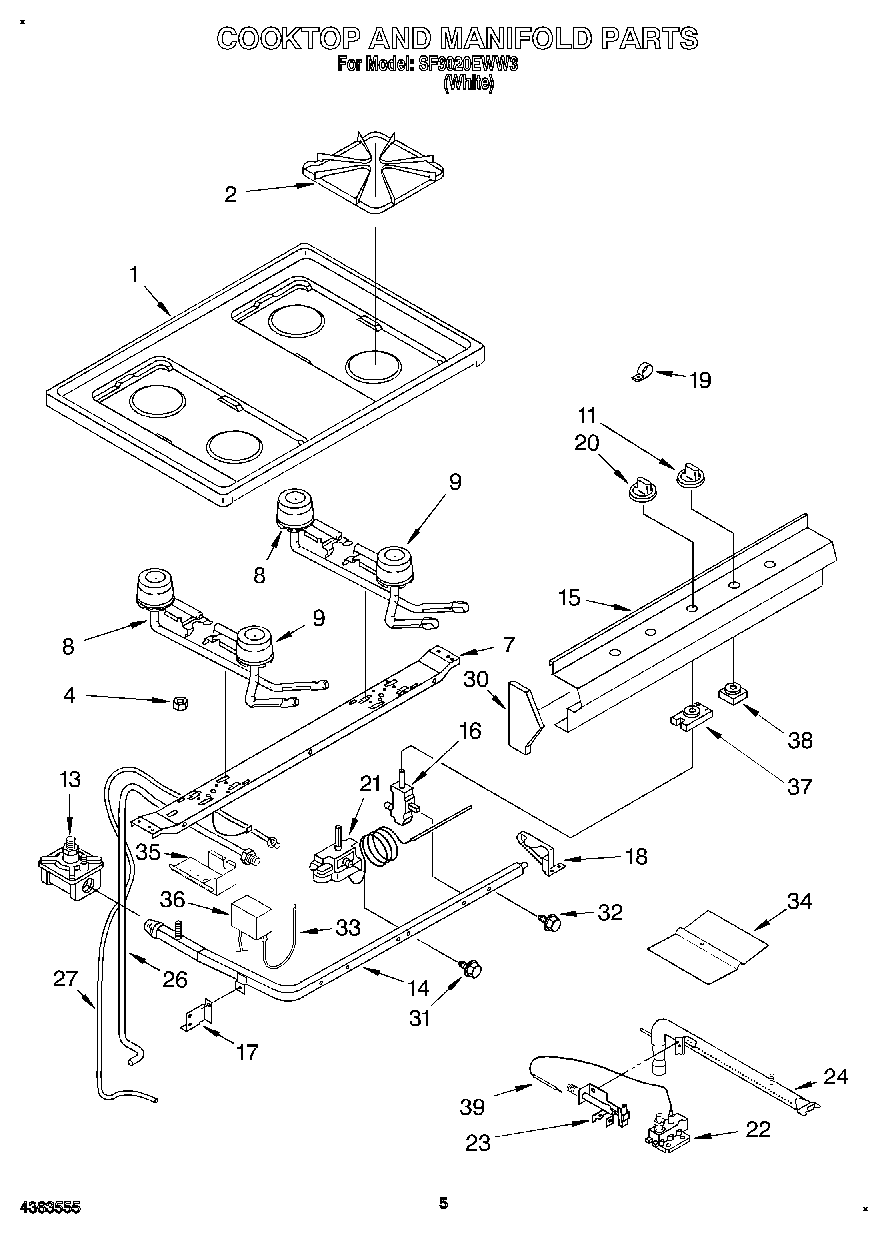

SF3020EWW3 04 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

SF3020EWW3 04 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Written by

in

SF3020EWW3 04 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Products

PositionProduct
Instuctions, Installation
Guide, Use & Care
Diagram, Wiring
Guide, Cooking
1Cooktop (White)
1Locator Stud (2)
1Cooktop (Almond)
1Speed Clip (4)
2Grate (4)
4Nut, Hex
7Support, Burner
8Burner, Rear (2)
9Burner, Front (2)
11WP4320580 Whirlpool Knob Assembly
13Regulator, Pressure
14Manifold
15Panel, Manifold
15Panel, Broiler (Screw)
16Valve, 90~ (4) (Includes Ill. No. 32)
17Support, Manifold (L.H.)
18Support, Manifold (R.H.)
18WP308685 Whirlpool Microwave Screw
19Strain Relief
20Knob, Thermostat
21Thermostat (Includes Ill. No. 45)
22Valve, Safety
23Screw, Thermostat Mounting (2)
23Pilot
24Screw
24Burner, Oven
26Tubing 3/8“ (Thermostat To Safety Valve)
27Tubing 3/16“ (Thermostat To Pilot)
30Endcap (L.H.)
30Endcap (Screw)
30Endcap (R.H.)
31Bolt, Thermostat Mounting (2)
32Bolt, Valve Mounting
33Ignitor (R.H.)
33Screw
33Ignitor (L.H.)
34W10080180 Whirlpool Nut
34Spreader, Flame
35Cover, Spark Module
36Module, Spark
36Ignitor (Screw, 8 X 1/2 (4))
37WP878009 Whirlpool Igniter Switch
38WP4157180 Whirlpool Surface Burner Ignition Switch
39Ignitor, Oven
39Harness, Wiring
39Wire, Tie
39WPW10208653 Whirlpool Insulation
