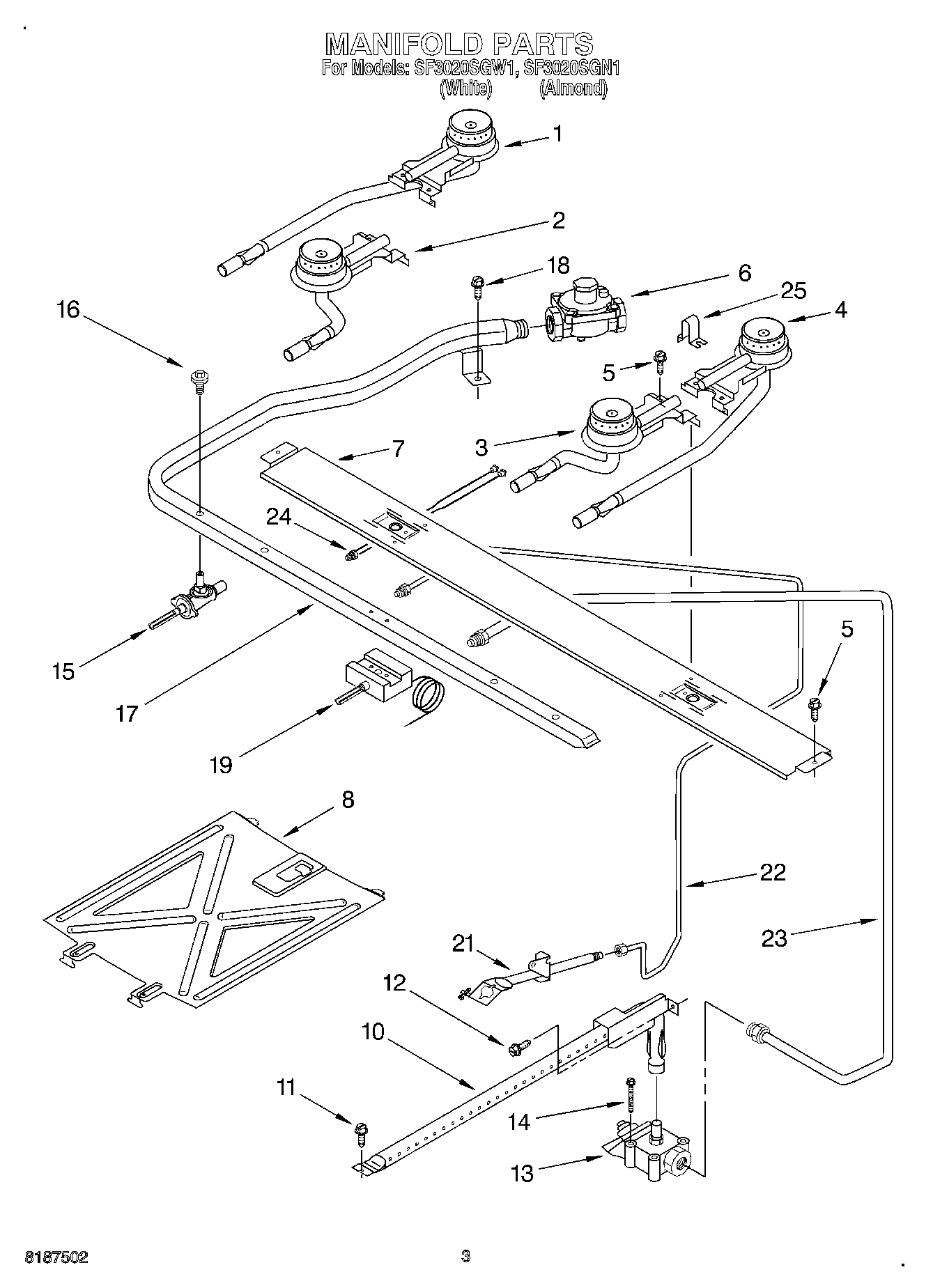

SF3020SGN1 03 – MANIFOLD

SF3020SGN1 03 – MANIFOLD

Written by

in

SF3020SGN1 03 – MANIFOLD

Products

PositionProduct
1Burner (Left Rear)
2Burner, Left Front
3Burner (Right Front)
4Burner (Right Rear)
5W10491985 Whirlpool Screw
6Regulator
7Support, Burner
8Spreader, Flame (Oven)
10Burner, Oven
11SCREW
123196265 Whirlpool Oven Screw
13Valve, Oven
14Screw
15Valve, Burner (4)
16WP3186217 Whirlpool Screw
17Pipe, Manifold
19Thermostat
21Pilot, Oven
22Tubing (T-Stat to Oven Pilot)
23Tubing (T-Stat to Oven Valve)
24Tubing, Pilot
25Spud Kit-Set of 4 (LP to Nat)
25LP Conversion Kit (Nat to LP)
25Cover, Pilot (2)
