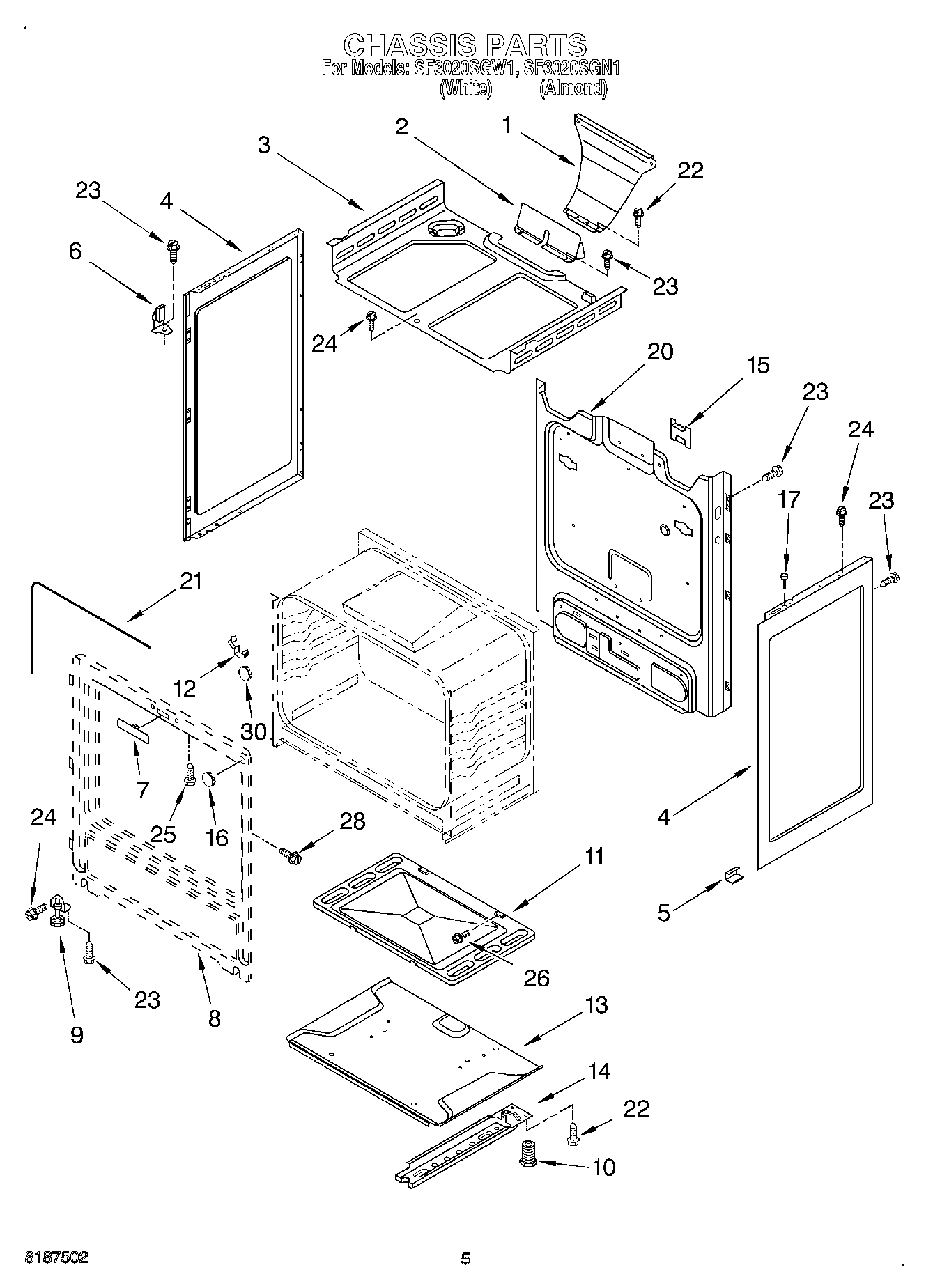

| WPW10208653 Whirlpool Insulation |
| 1 | W11457094 Whirlpool Oven Flue |
| 2 | WP8272747 Whirlpool Heat Shield |
| 3 | Burner Box |
| 4 | Panel, Side (2) (Almond-Textured) |
| 4 | WPW10575396 Whirlpool Side Panel |
| 5 | Clip, Panel (6) |
| 6 | Brkt, Manifold Mtg (Right Hand) |
| 6 | Brkt, Manifold Mtg (Left Hand) |
| 7 | Plug, Frame |
| 8 | Frame, Front (Not Serviceable) |
| 9 | WP3196037 Whirlpool Leveling Foot |
| 10 | WPW10058460 Whirlpool Appliance Levelling Leg |
| 11 | WP3195097 Whirlpool Oven Bottom |
| 12 | 98005642 Whirlpool Clip |
| 13 | Baffle, Base |
| 14 | WPW10306546 Whirlpool Base Rail |
| 15 | Button, Plug (Oval (1)) |
| 16 | Plug Button |
| 17 | 238614 Whirlpool Bumper Hinge |
| 20 | Back, Main |
| 21 | W11542153 Whirlpool Door Gasket |
| 22 | WP3196557 Whirlpool Screw |
| 24 | Screw |
| 25 | SCREW |
| 26 | Screw |
| 28 | WP7101P246-60 Whirlpool Screw |
| 30 | TIE,WIRE |
| 30 | Button, Plug (25/32`` (2)) |
| 30 | W11688737 Whirlpool Insulation |
