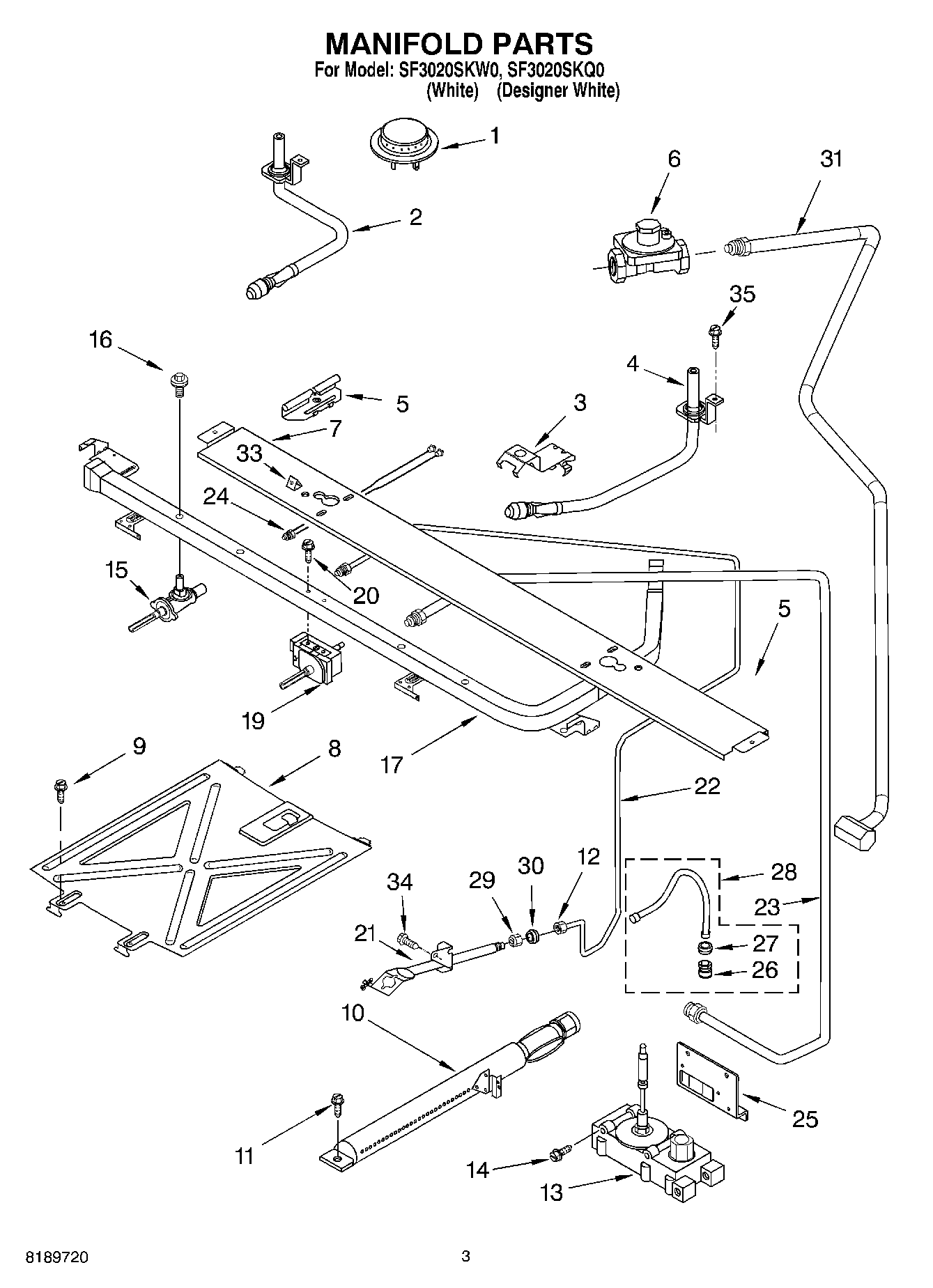

SF3020SKQ0 03 – MANIFOLD

Products

Position	Product
1	Burner, Top (4) (Gray)
1	Burner, Top (4)
2	Venturi, Front (2)
3	Brkt., Venturi (4)
4	Venturi, Rear (2)
5	Tube, Flash (2)
6	Regulator
7	Support, Burner
8	Spreader, Flame
9	SCREW
10	Burner, Oven
11	W10837731 Whirlpool Screw Assembly
12	98005514 Whirlpool Oven Nut
13	Valve, Oven
14	Screw
15	Valve, Burner (4) (9,500 BTU)
16	WPW10277003 Whirlpool Screw
17	Pipe, Manifold
19	Thermostat
20	Bolt, T-Stat Mtg
21	Pilot, Oven
22	WP98004310 Whirlpool Gas Tubing
23	Tubing (T-Stat to Oven Valve)
24	Tubing, Pilot
25	Bracket, Valve
26	Nut, Tubing
27	Sleeve, 3/8“
28	Tubing, Oven
29	Nut, Fitting
30	98007116 Whirlpool Oven 3/16" Ball Sleeve
31	Tubing, Inlet
32	Nut, Loxit
33	Cover, Pilot
34	SCREW (STAINLESS)
35	W10837674 Whirlpool Screw
35	LP Spud Kit (For Use With LP)
