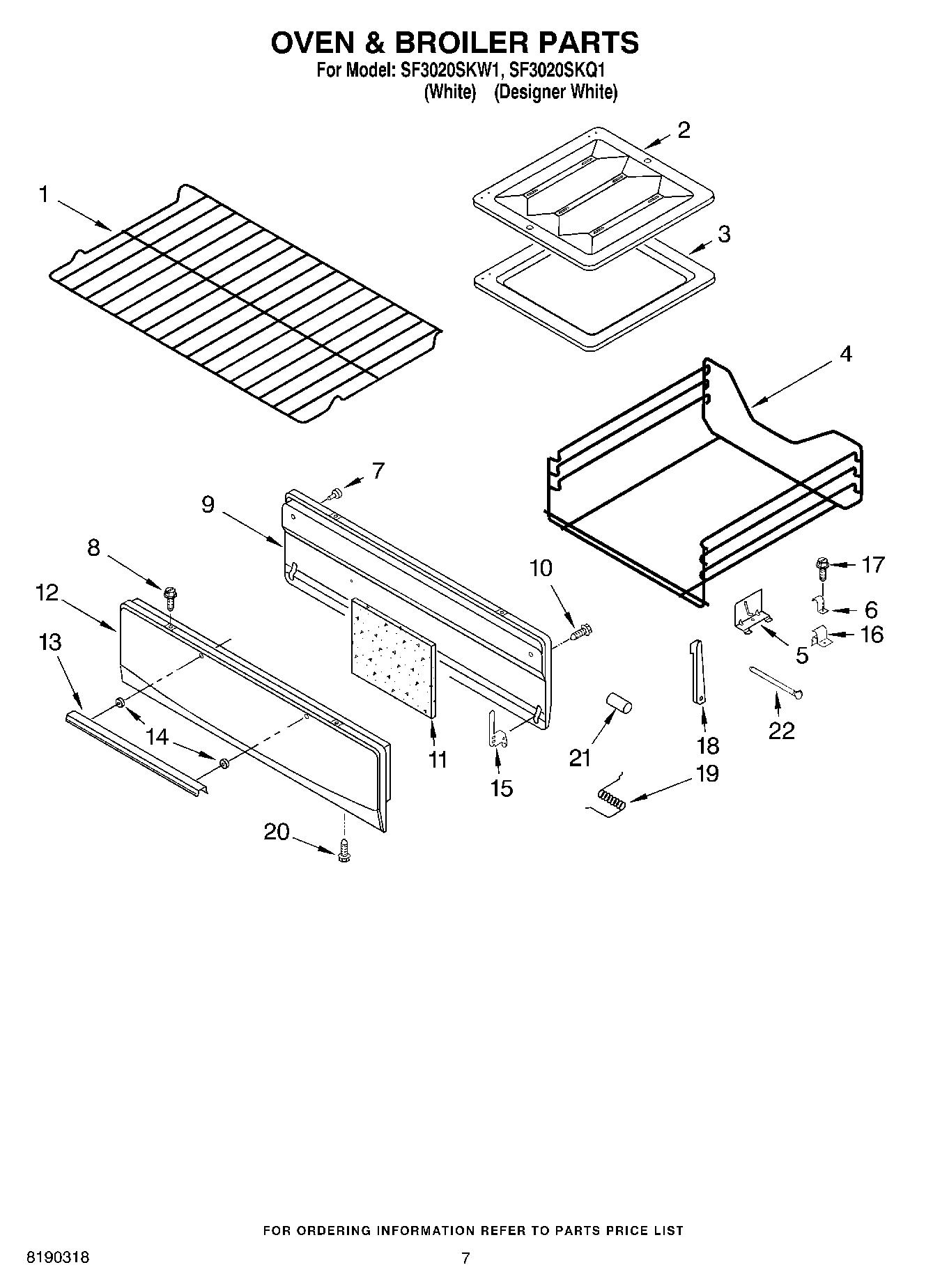

SF3020SKQ1 05 – OVEN & BROILER PARTS

Products

PositionProduct
1Rack, Oven (2)
2WP98003480 Whirlpool Grill Pan
3WP98016005 Whirlpool Broiler Pan
498016570 Whirlpool Oven Rack
5Bracket, Rack
698004715 Whirlpool Drawer Guide
798004723 Whirlpool Oven Bumper
83196166 Whirlpool Screw
9Liner, Door
10Screw
11Insulation, Door
12Panel, Door (White)
13Handle, Brlr Door (White)
14Spacer, Handle
15W11499074 Whirlpool Hinge Bracket
1698008341 Whirlpool Clip
17W10837731 Whirlpool Screw Assembly
18Support, Hinge
19Spring, Broiler (Left Hand)
19Spring, Broiler (Right Hand)
20WP3400805 Whirlpool Screw Assembly
21Spacer
2298004053 Whirlpool Oven Hinge Pin
