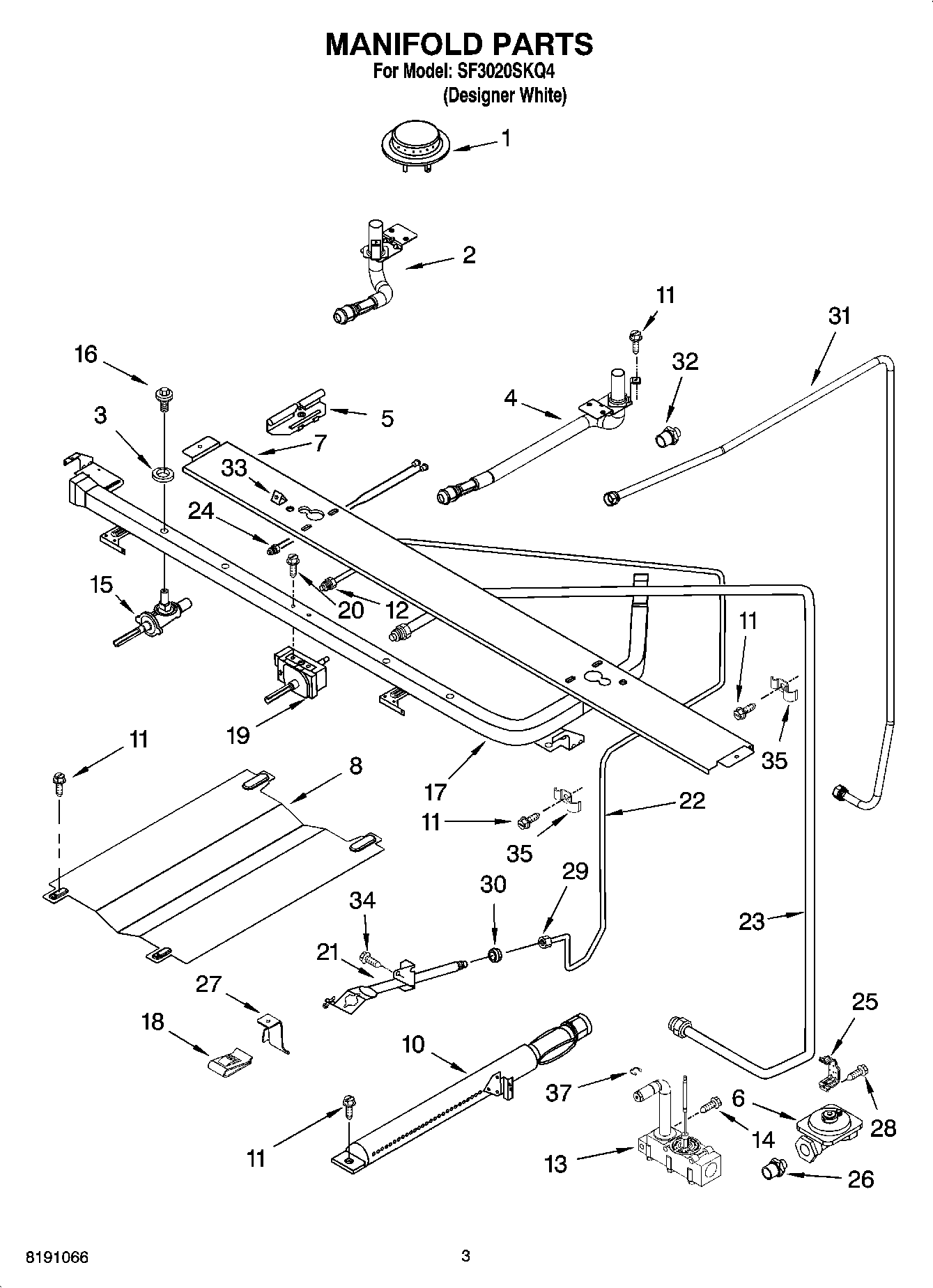

SF3020SKQ4 03 – MANIFOLD PARTS

Products

Position	Product
1	Burner, Top (4)
2	Venturi, Front (2)
3	Washer, Valve (4)
4	Venturi, Rear (2)
5	Tube, Flash (2)
6	Regulator
7	Support, Burner
8	98015099 Whirlpool Oven Burner Baffle
10	Burner, Oven
11	W10837731 Whirlpool Screw Assembly
12	98005514 Whirlpool Oven Nut
13	Valve, Oven
14	Screw
15	Valve, Burner (4) (9,500 BTU)
16	WPW10277003 Whirlpool Screw
17	Pipe, Manifold
18	98009179 Whirlpool Oven Nut
19	Thermostat
20	Bolt, T-Stat Mtg
21	Pilot, Oven
22	WP98004310 Whirlpool Gas Tubing
23	Tubing (T-Stat to Oven Valve)
24	Tubing, Pilot
25	98007410 Whirlpool Oven Mounting Bracket
26	98007431 Whirlpool Oven Fitting
27	98013314 Whirlpool Oven Support Bracket
28	Screw, Ground
29	Nut, Fitting
30	98007116 Whirlpool Oven 3/16" Ball Sleeve
31	Tubing, Inlet
32	Fitting 1/4to9/16
33	Cover, Pilot
34	Screw
35	98005026 Whirlpool Oven Clip
37	W10854964 Whirlpool Orifice Spud
37	Clip, E-Ring
37	Natural Spud Kit (For use with Natural Gas)
37	FOLLOWING PARTS NOT ILLUSTRATED
