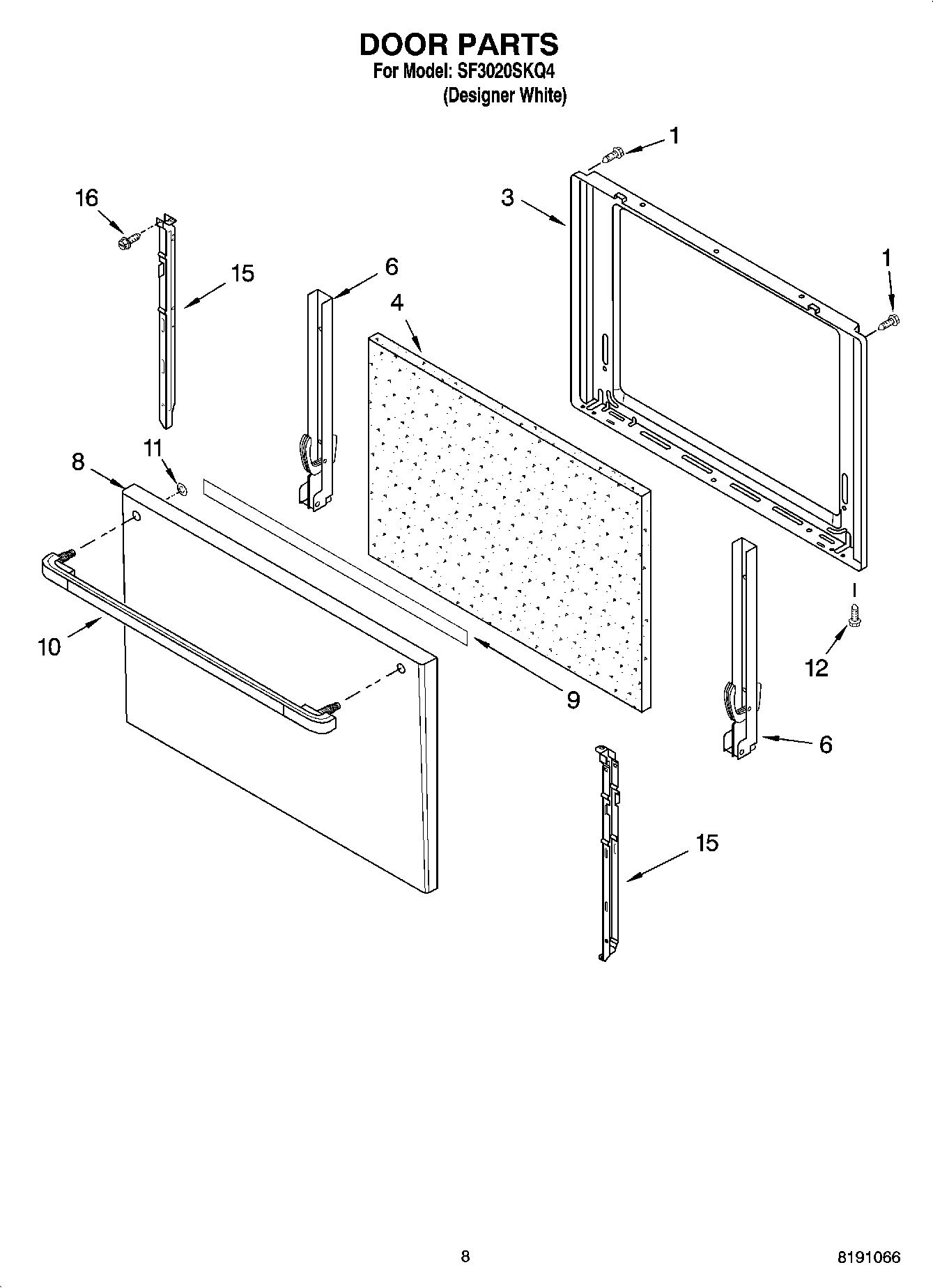

SF3020SKQ4 06 – DOOR PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI129385A
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 200 c Brown)
	8212471 Whirlpool Oven Paint
	Grease
	WPL 8316781
	WPW10477747 Whirlpool Anchor Tip
	WPL ARI129386A
	FOLLOWING PARTS NOT ILLUSTRATED
	SPLICING WIRES–25FT.
	WPL ARI129383A
	WPL ARI129384A
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350942 Whirlpool Spray Paint
	511873 Whirlpool Refrigerator Paint
	WPL 799832
	350930 Whirlpool White Spray Paint
	WPW10208653 Whirlpool Insulation
	Wire, 25` Roll (Red 14 Ga.)
	285006 Whirlpool Spray
	814381 Whirlpool Pin
	242831 Whirlpool Oven Wire
	Almond (Uncut)
1	Screw
3	Liner, Door
4	Insulation, Door
6	Hinge, Door (2)
8	Panel, Oven Door (White)
9	Retainer, Upper (2)
10	WP98006181 Whirlpool Door Handle
11	WP98004650 Whirlpool Nut
12	WP59002061 Whirlpool Microwave Screw
15	98004564 Whirlpool Oven Retainer
15	98004629 Whirlpool Oven Retainer
16	WP3400805 Whirlpool Screw Assembly
