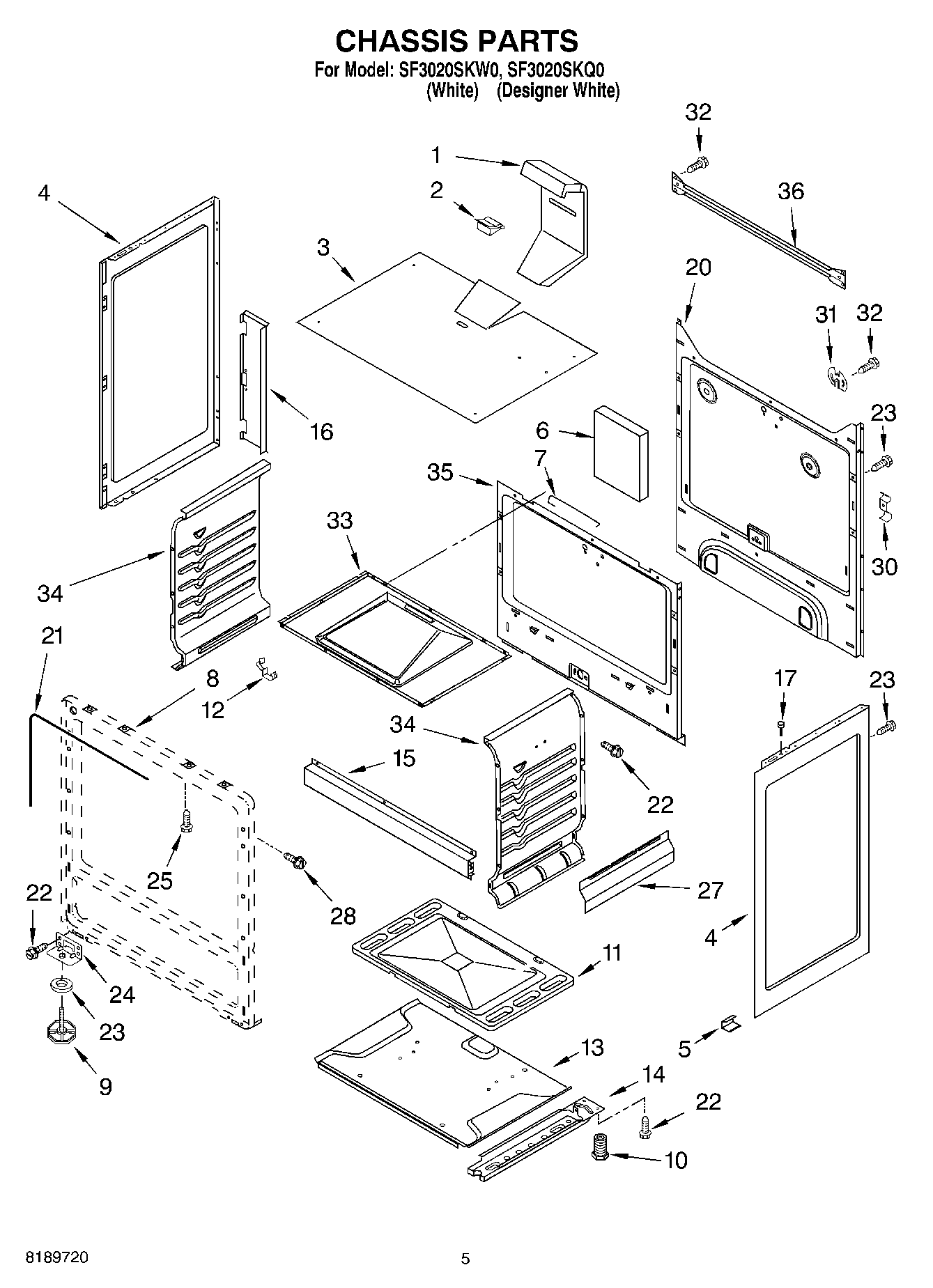

| 1 | WPW10116396 Whirlpool Flue Box |
| 2 | Clip, Flue |
| 3 | Shield, Insulation |
| 4 | WP98010042 Whirlpool Side Panel |
| 5 | CLIP, OVEN BOTTON |
| 6 | Counterweight |
| 7 | 98006739 Whirlpool Oven Wire Tie |
| 8 | Frame, Front |
| 9 | WP3196037 Whirlpool Leveling Foot |
| 10 | WPW10058460 Whirlpool Appliance Levelling Leg |
| 11 | WP98004449 Whirlpool Oven Bottom |
| 12 | 98005642 Whirlpool Clip |
| 13 | 98003847 Whirlpool Oven Bottom Baffle |
| 14 | 98003830 Whirlpool Rail Base |
| 15 | Support, Burner |
| 16 | 98006715 Whirlpool Channel Assembly |
| 17 | 98004723 Whirlpool Oven Bumper |
| 19 | Bracket, Inlet |
| 20 | Back, Main |
| 21 | Seal, Oven |
| 23 | 98007193 Whirlpool Oven Washer |
| 24 | 98007126 Whirlpool Oven Stand Bracket |
| 25 | SCREW |
| 27 | 98007191 Whirlpool Oven Heat Shield |
| 28 | WP98006631 Whirlpool Screw |
| 30 | 98005026 Whirlpool Oven Clip |
| 31 | Retainer, Burner |
| 32 | W10837731 Whirlpool Screw Assembly |
| 33 | 98004447 Whirlpool Top |
| 34 | 98004451 Whirlpool Oven Side Panel |
| 34 | 98004452 Whirlpool Oven Side |
| 35 | Back, Oven |
| 36 | Insulation |
| 36 | WPW10208653 Whirlpool Insulation |
| 36 | 98015363 Whirlpool Oven Support |
| 36 | 98004294 Whirlpool Insulation Wire |
| 36 | W11311894 Whirlpool Insulation |
