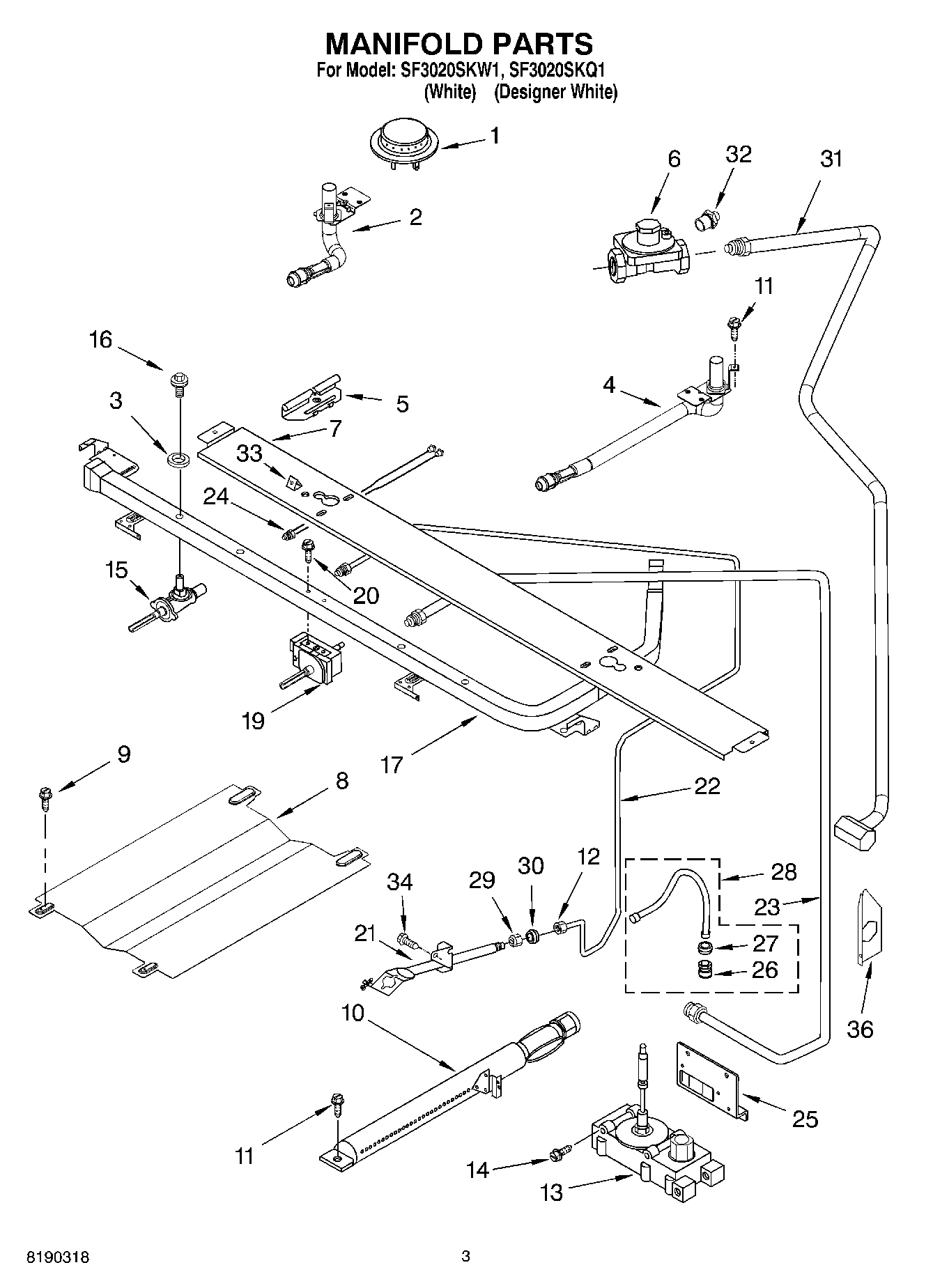

SF3020SKW1 03 – MANIFOLD PARTSadmin2025-04-26T11:19:53+00:00SF3020SKW1 03 – MANIFOLD PARTS
Products
| Position | Product |
|---|
| 1 | Burner, Top (4) |
| 1 | Burner, Top (4) |
| 2 | Venturi, Front (2) |
| 3 | Washer, Valve (4) |
| 4 | Venturi, Rear (2) |
| 5 | Tube, Flash (2) |
| 6 | Regulator |
| 7 | Support, Burner |
| 8 | Spreader, Flame |
| 9 | SCREW |
| 10 | Burner, Oven |
| 11 | W10837731 Whirlpool Screw Assembly |
| 12 | 98005514 Whirlpool Oven Nut |
| 13 | Valve, Oven |
| 14 | Screw |
| 15 | Valve, Burner (4) (9,500 BTU) |
| 16 | WPW10277003 Whirlpool Screw |
| 17 | Pipe, Manifold |
| 19 | Thermostat |
| 20 | Bolt, T-Stat Mtg |
| 21 | Pilot, Oven |
| 22 | WP98004310 Whirlpool Gas Tubing |
| 23 | Tubing (T-Stat to Oven Valve) |
| 24 | Tubing, Pilot |
| 25 | Bracket, Valve |
| 26 | Nut, Tubing |
| 27 | Sleeve, 3/8`` |
| 28 | Tubing, Oven |
| 29 | Nut, Fitting |
| 30 | 98007116 Whirlpool Oven 3/16" Ball Sleeve |
| 31 | Tubing, Inlet |
| 32 | Nut, Loxit |
| 33 | Cover, Pilot |
| 34 | SCREW (STAINLESS) |
| 36 | LP Spud Kit (For Use With LP) |
| 36 | Washer, Cut-Off |
| 36 | Bracket, Inlet |
| 36 | FOLLOWING PARTS NOT ILLUSTRATED |
| 36 | Natural Spud Kit (For use with Natural Gas) |
