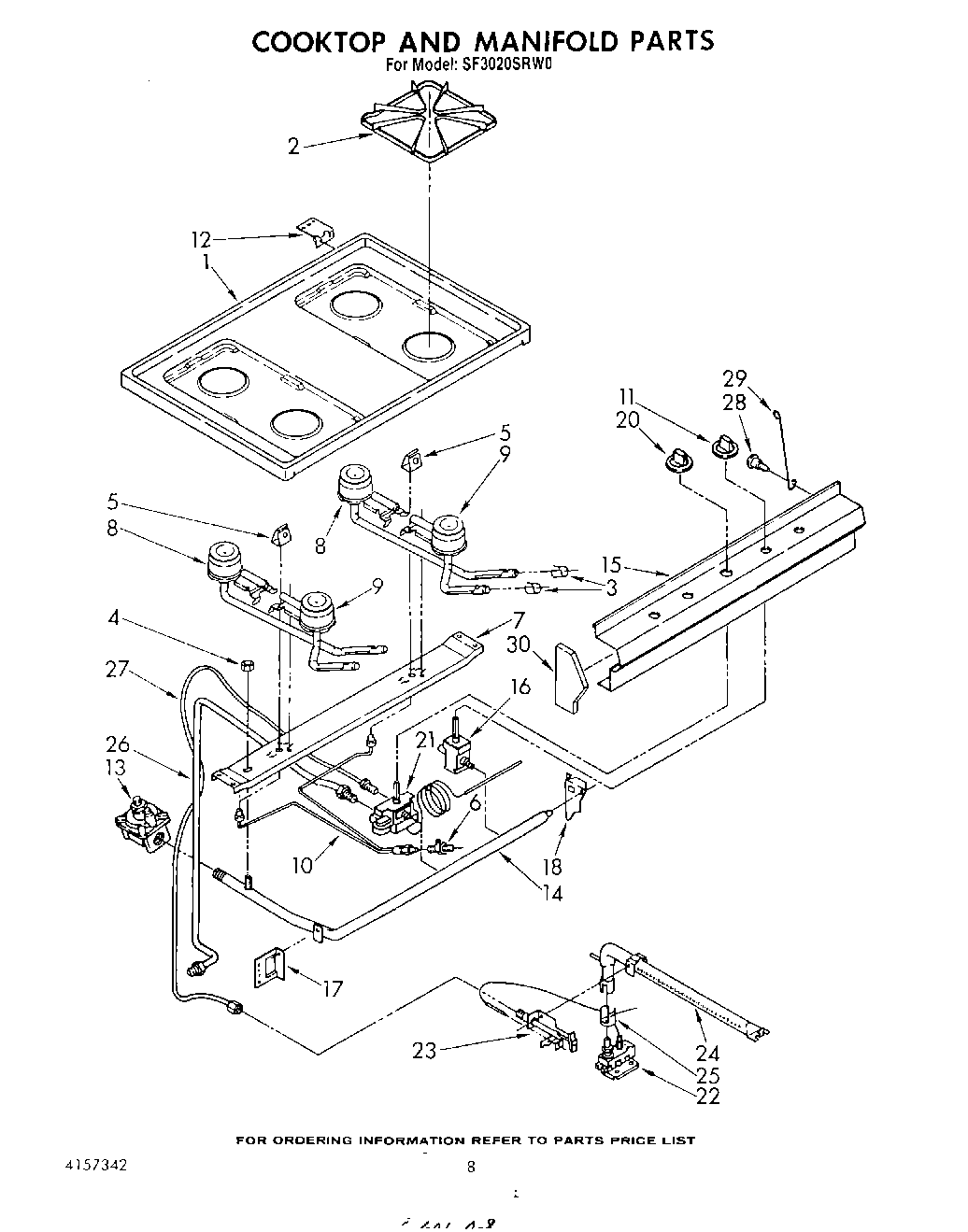

SF3020SRW0 06 – COOK TOP AND MANIFOLD , LITERATURE

Products

PositionProduct
List, Repair Parts
WPL LIT786767
WPL LIT786735
Guide, Cooking
1Cooktop (Almond)
1Cooktop (White)
2Grate (4)
3Shutter, Air (4)
4Nut, Hex
5Cover, Pilot (2)
6Filter, Pilot
7Support, Burner
8Burner, Rear (2)
9Screw, 10-12 X 3/8 (2)
9Burner, Front (2)
10Tubing, Pilot (Incl. No. 6)
11WP4179282 Whirlpool Knob
12Hinge, Maintop (2)
12SCREW
12Speed Clip (4)
13Regulator, Pressure
14Manifold
15Panel, Manifold
16Valve, 90~ (4)
17Support, Manifold (L.H.)
18WP308685 Whirlpool Microwave Screw
18Support, Manifold (R.H.)
20WPY07506601 Whirlpool Thermal Knob
21Thermostat
22Valve, Safety
22WP3387230 Whirlpool Screw
23Screw, 10-24 X 1/4 (1)
23Pilot
24Burner, Oven
25Shutter, Burner
26Tubing 3/8“ (Thermostat To Safety Valve)
27Tubing 3/16“ (Thermostat To Pilot)
28Screw
29Rod, Support
30Endcap (R.H.)
30Endcap (L.H.)
30WPW10208653 Whirlpool Insulation
30FOIL, ALUMINUM OVEN (18“ X 25 )
