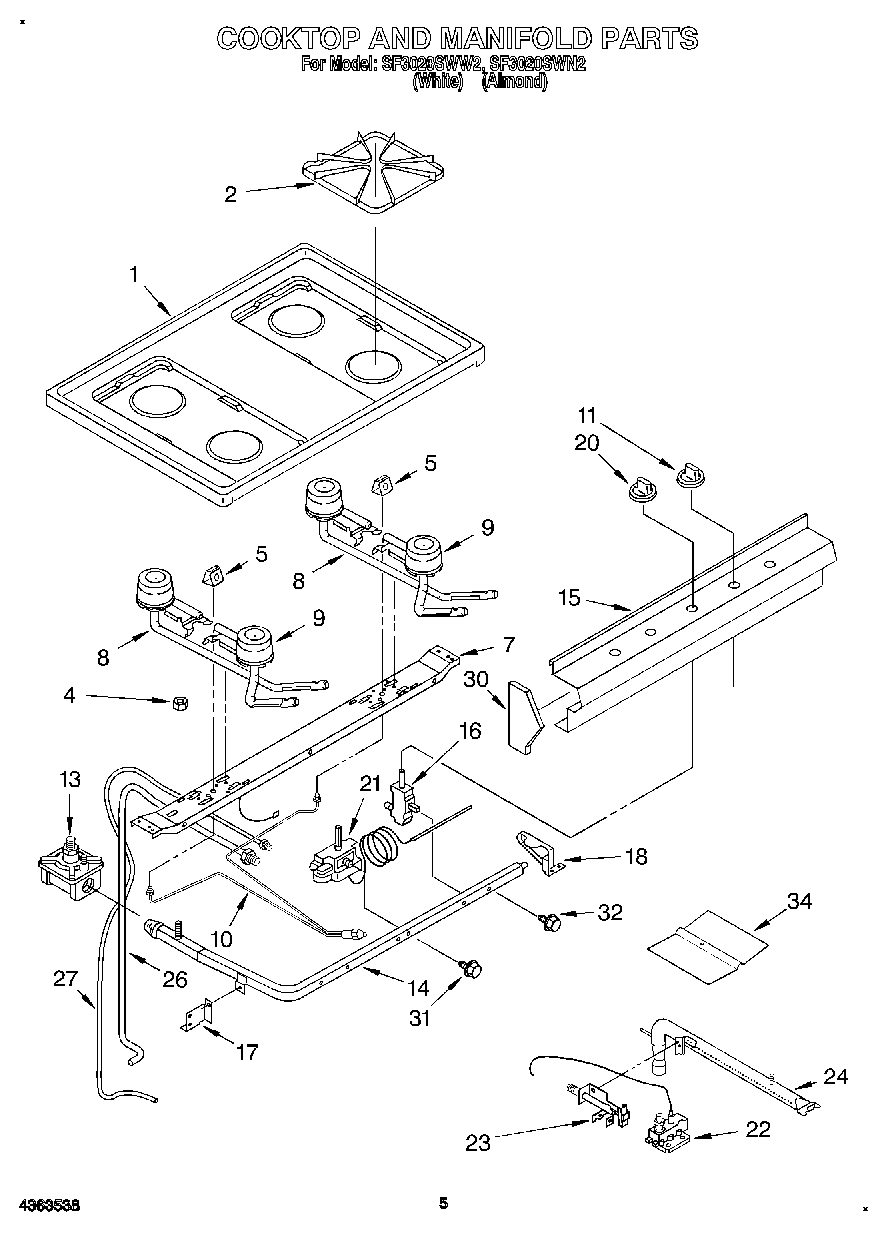

SF3020SWN2 03 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Products

Position	Product
	Guide, Cooking
	Instuctions, Installation
	Guide, Use & Care
1	Cooktop (Almond)
1	Cooktop (White)
1	Speed Clip (4)
1	Locator Stud (2)
2	Grate (4)
4	Nut, Hex
5	Cover, Pilot (2)
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
9	Screw
10	Tubing, Pilot (Incl. No. 6)
11	WP4320580 Whirlpool Knob Assembly
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 32)
17	Support, Manifold (L.H.)
18	WP308685 Whirlpool Microwave Screw
18	Support, Manifold (R.H.)
20	Knob, Thermostat
21	Thermostat (Includes Ill. No. 31)
22	Valve, Safety
23	WP3387230 Whirlpool Screw
23	Pilot
24	Burner, Oven
24	Screw
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
30	Endcap (Screw)
30	Endcap (L.H.)
30	Endcap (R.H.)
31	Bolt, Thermostat Mounting (2)
32	Bolt, Valve Mounting
34	WPW10208653 Whirlpool Insulation
34	W10080180 Whirlpool Nut
34	Spreader, Flame
