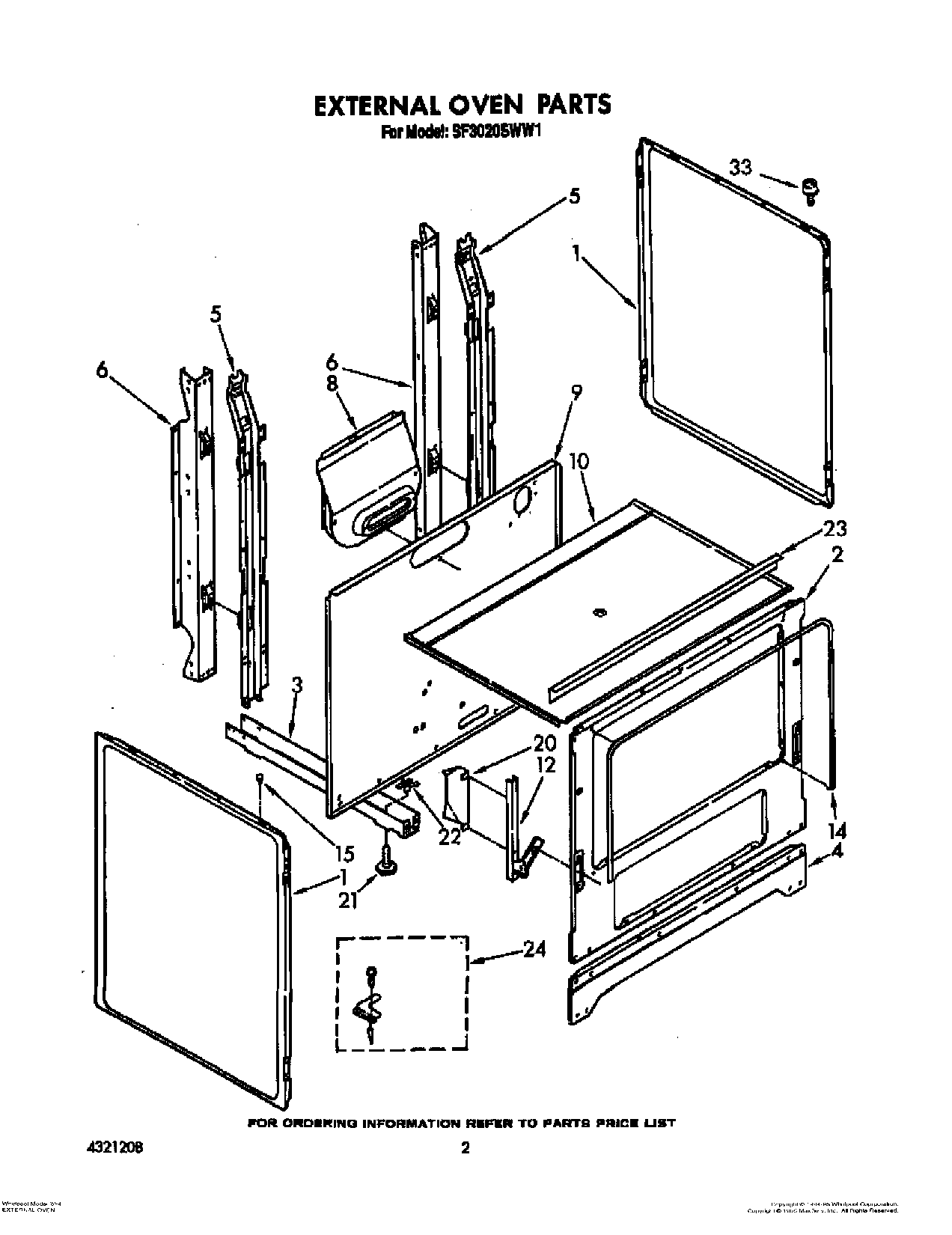

SF3020SWW1 02 – EXTERNAL OVEN
Written by
in
SF3020SWW1 02 – EXTERNAL OVEN
Products
Position
Product
1
Panel, Side (2) (White)
1
Panel, Side (2) (Almond)
2
Frame, Front
3
Rail, Base (2)
4
Base, Front
4
Ignitor (Screw, 8 X 1/2 (4))
5
Screw, 10-32 X 1/2 (1)
5
Support, Main (2)
6
Support, Rear (2)
8
SCREW
8
Flue, Box
9
Panel, Rear
10
Burner Box
10
WP308685 Whirlpool Microwave Screw
12
Screw, 10-24 X 3/8 (2)
12
Hinge, Door (2)
14
Seal, Door (2)
20
Shield, Insulation
21
Leg, Leveler (4)
22
Nut (4)
23
Extension Burner Box
24
Anti Tip Kit
33
Stud Screw (2)
33
Locator stud (2)
←
