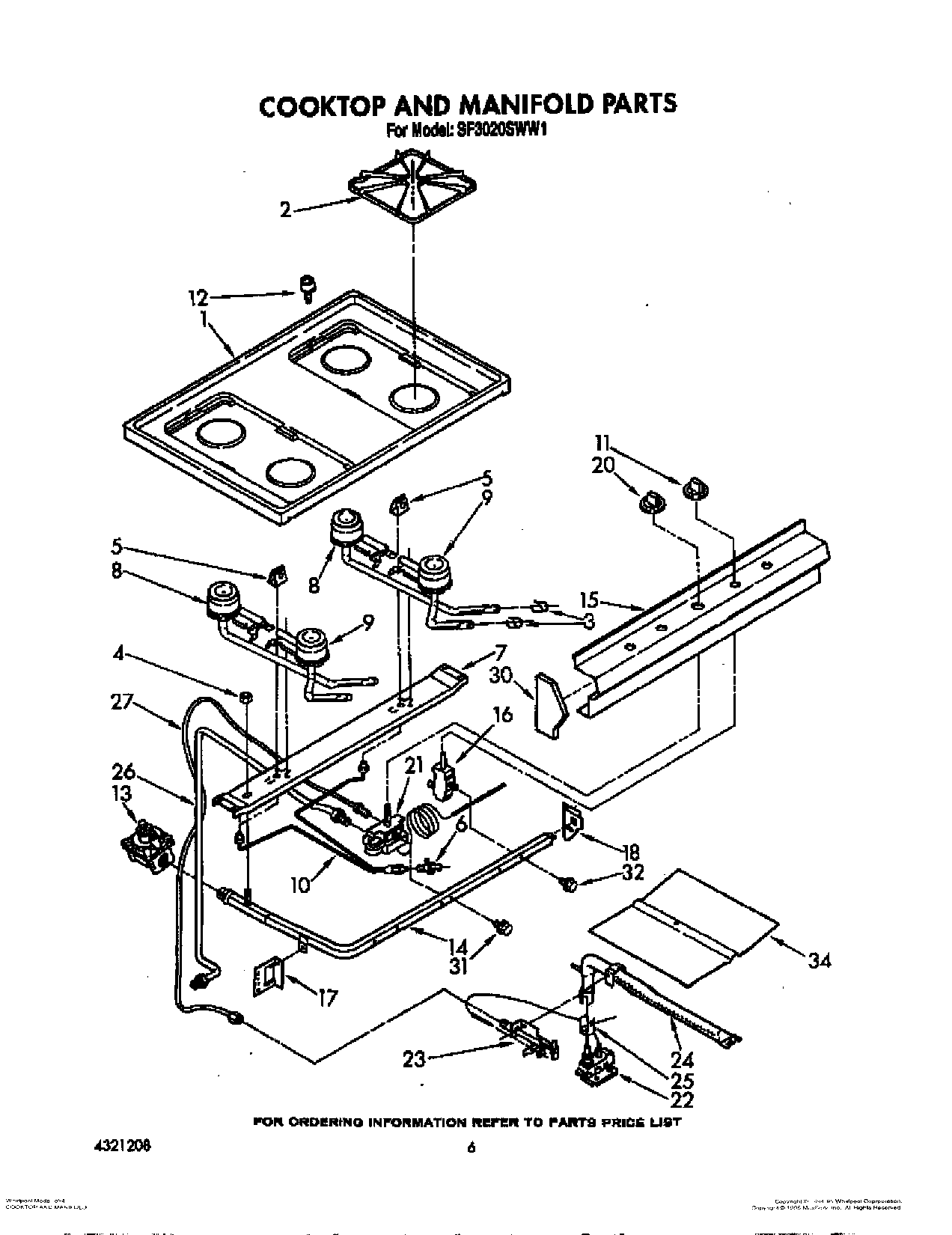

SF3020SWW1 05 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Products

Position	Product
	List, Repa
	Instuctions, Installation
	Guide, Use & Care
	Guide, Cooking
1	Cooktop (Almond)
1	Cooktop (White)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
5	Cover, Pilot (2)
6	Filter, Pilot
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
10	Tubing, Pilot (Incl. No. 6)
11	WP4320580 Whirlpool Knob Assembly
12	Screw, 10-12 X 3/8 (2)
12	Locator Stud (2)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 32)
17	Support, Manifold (L.H.)
17	Support, Manifold (R.H.)
18	Support, Manifold (R.H.)
18	WP308685 Whirlpool Microwave Screw
20	Knob, Thermostat
21	Thermostat (Includes Ill. No. 31)
22	WP3387230 Whirlpool Screw
22	Valve, Safety
23	Pilot
23	Screw, 10-24 X 1/4 (1)
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
27	Tubing 3/16“ (Thermostat To Pilot)
30	Endcap (R.H.)
30	Endcap (L.H.)
31	Bolt, Thermostat Mounting (2)
32	Bolt, Valve Mounting
34	FOIL, ALUMINUM OVEN (18“ X 25 )
34	Spreader, Flame
34	Support, Rear (2)
34	WPW10208653 Whirlpool Insulation
