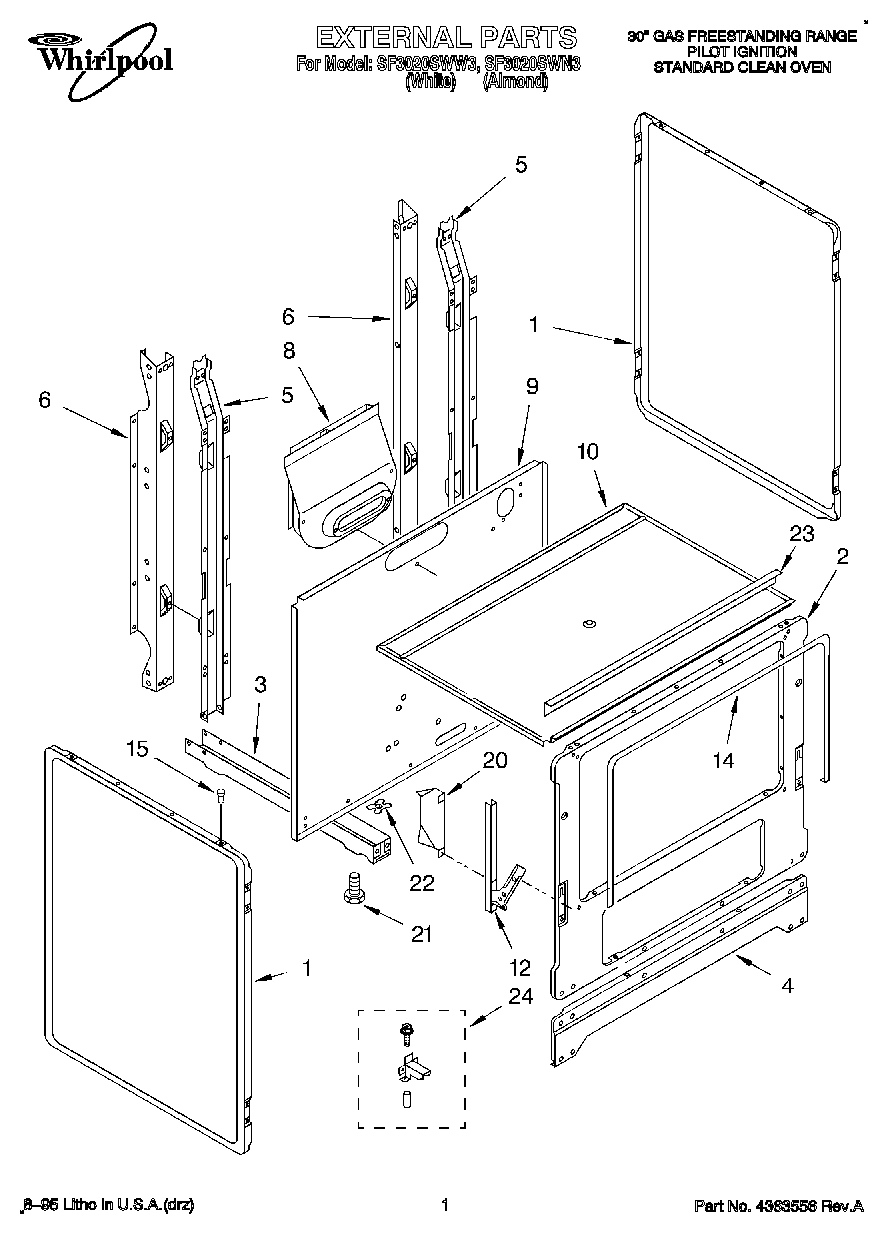

SF3020SWW3 01 – EXTERNAL

Products

Position	Product
1	Panel, Side (2) (White)
1	Panel, Side (2) (Almond)
2	Frame, Front
3	Rail, Base (2)
4	Base, Front
5	Support, Main (2)
5	Screw
6	Support, Rear (2)
8	Box, Flue
9	Panel, Rear
10	Burner Box
12	Hinge, Door (2)
12	Screw
12	Screw
14	Seal, Door (2)
15	Locator Stud (2)
15	Bumper, Cooktop (2)
20	Shield, Insulation
21	Leg, Leveler
22	Nut (4)
23	WP3387230 Whirlpool Screw
23	Extension Burner Box
23	WP308685 Whirlpool Microwave Screw
24	Anti-Tip Kit
