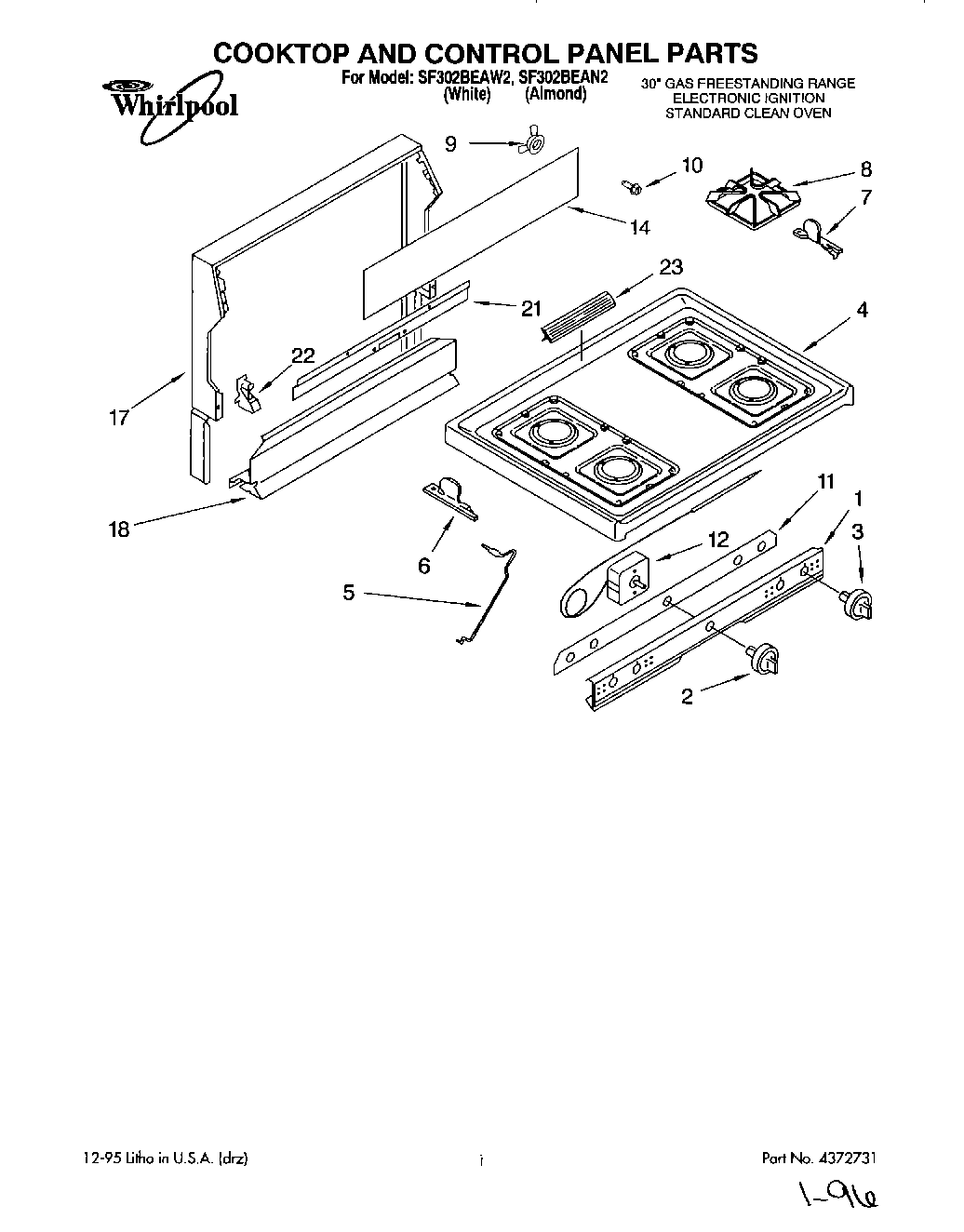

SF302BEAN2 01 – COOKTOP AND CONTROL PANEL, LITERATURE

SF302BEAN2 01 – COOKTOP AND CONTROL PANEL, LITERATURE

Written by

in

SF302BEAN2 01 – COOKTOP AND CONTROL PANEL, LITERATURE

Products

PositionProduct
Installation, Instructions
Guide, Use & Care
1Panel, Control
2Knob, Thermostat
3Knob, Burner (4)
4Top, Main (White)
4Top, Main (Almond)
5Rod, Support
6Bracket, Hinge LH
7Bracket, Hinge RH
8Grate (4)
9Wingnut (2)
10Bolt, Backguard (2)
11Cover, Manifold
12Thermostat, Oven
14Panel, Splasher
17Trim, Wrapper
18Trim, Splash Panel (Almond)
18Trim, Splash Panel (White)
21Bracket, Backguard
22Brace, Backguard
23Cover, Vent
