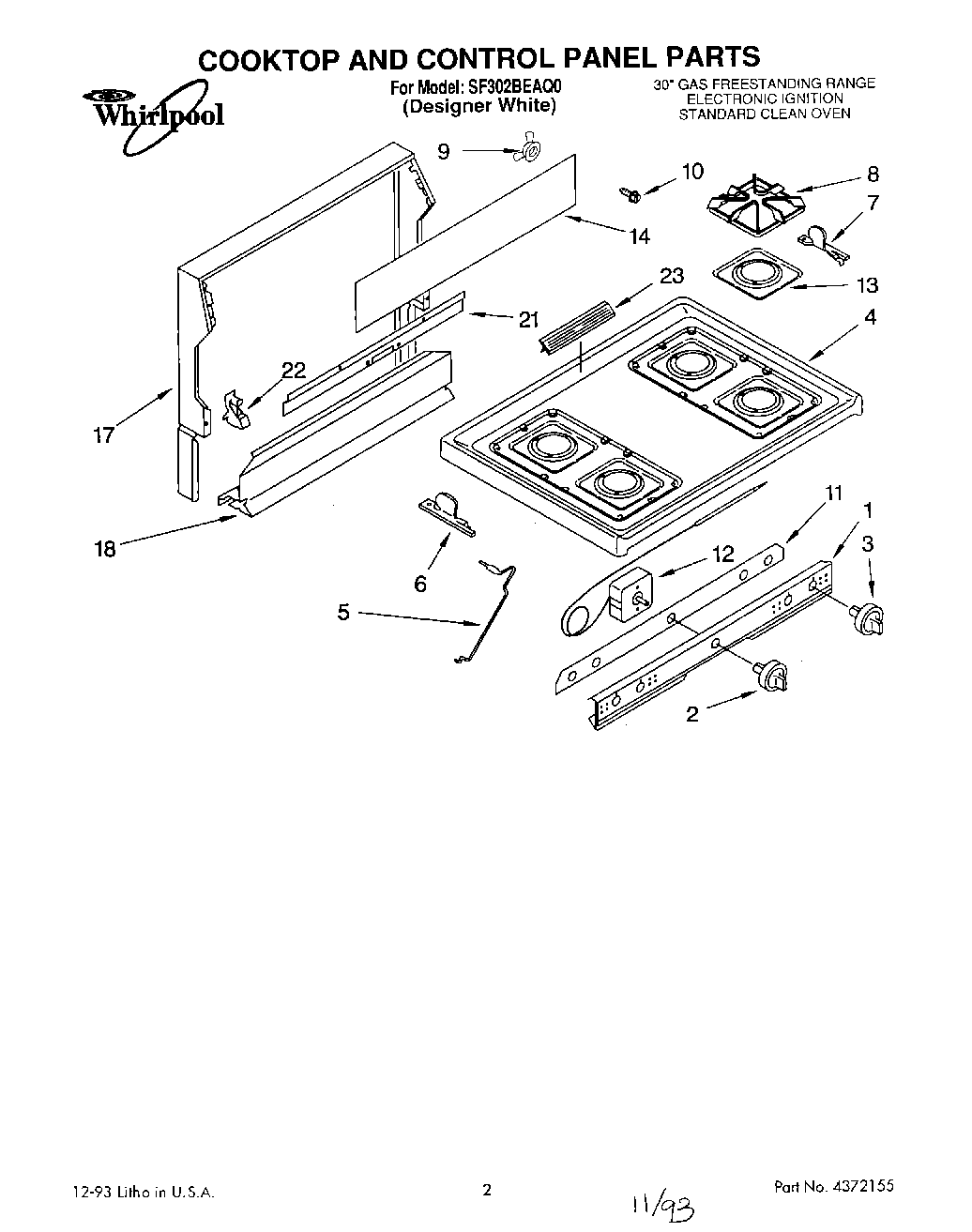

SF302BEAQ0 01 – COOKTOP AND CONTROL PANEL, LIT/OPTIONAL

SF302BEAQ0 01 – COOKTOP AND CONTROL PANEL, LIT/OPTIONAL

Written by

in

SF302BEAQ0 01 – COOKTOP AND CONTROL PANEL, LIT/OPTIONAL

Products

PositionProduct
List, Repair Parts
Guide, Use & Care
Installation Instructions
1Panel, Control
2Knob, Thermostat
3Knob, Burner (4)
4Top, Main (White)
5Rod, Support Top
6Bracket, Hinge LH
7Bracket, Hinge RH
8Grate, Burner
9Wingnut (2)
10Bolt, Backguard (2)
11Cover, Manifold
12Thermostat, Oven
13Pan, Burner
14Panel, Splasher
17Trim, Wrapper
18Trim, Splash Panel (Almond)
18Trim, Splash Panel (White)
21Bracket, Backguard
22Brace, Backguard
23Cover, Vent
