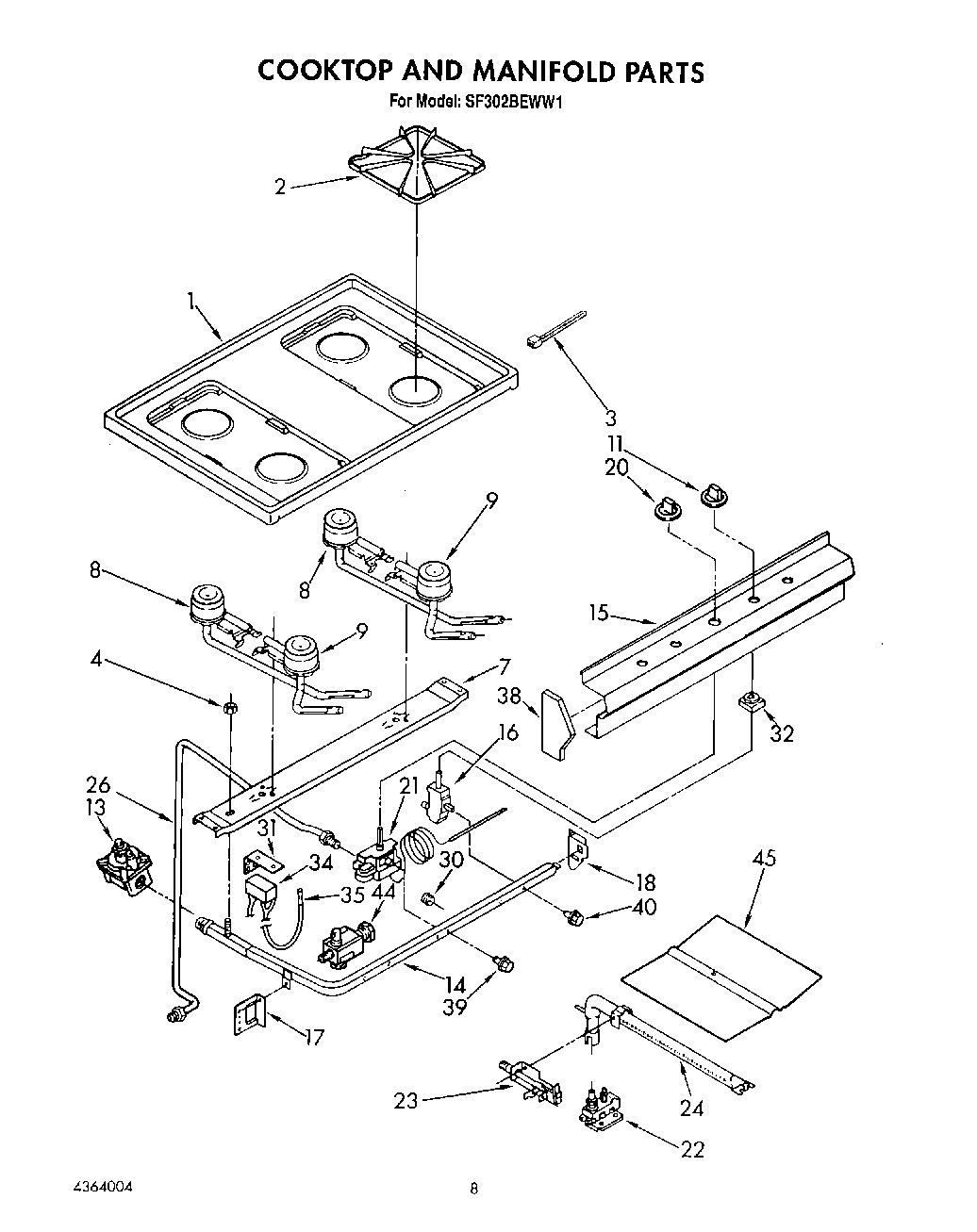

SF302BEWN1 06 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Products

Position	Product
	List, Repair Parts
	Guide, Use & Care
	Instuctions, Installation
	Guide, Cooking
1	Cooktop (White)
1	Cooktop (Almond)
2	Grate (4)
3	Burner Box
4	Nut, Hex
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
11	WP4320580 Whirlpool Knob Assembly
11	Screw, 10-12 X 3/8 (2)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 32)
18	WP308685 Whirlpool Microwave Screw
18	Support, Manifold (R.H.)
20	Knob, Thermostat
21	Thermostat
22	Valve, Safety
23	Pilot
23	Bracket, Ignitor
23	Screw
24	Burner, Oven
26	Burner, Oven
30	W10295523 Whirlpool Plug
31	Plate, Spark Module
32	WP4157180 Whirlpool Surface Burner Ignition Switch
34	Module, Spark
35	Support, Manifold (L.H.)
35	Ignitor (L.H.)
38	Endcap (R.H.)
38	Endcap (L.H.)
39	Screw, Thermostat Mounting (2)
40	Bolt, Valve Mounting
44	Valve, Shut Off
45	W10080180 Whirlpool Nut
45	FOIL, ALUMINUM OVEN (18“ X 25 )
45	WPW10208653 Whirlpool Insulation
45	Spreader, Flame
