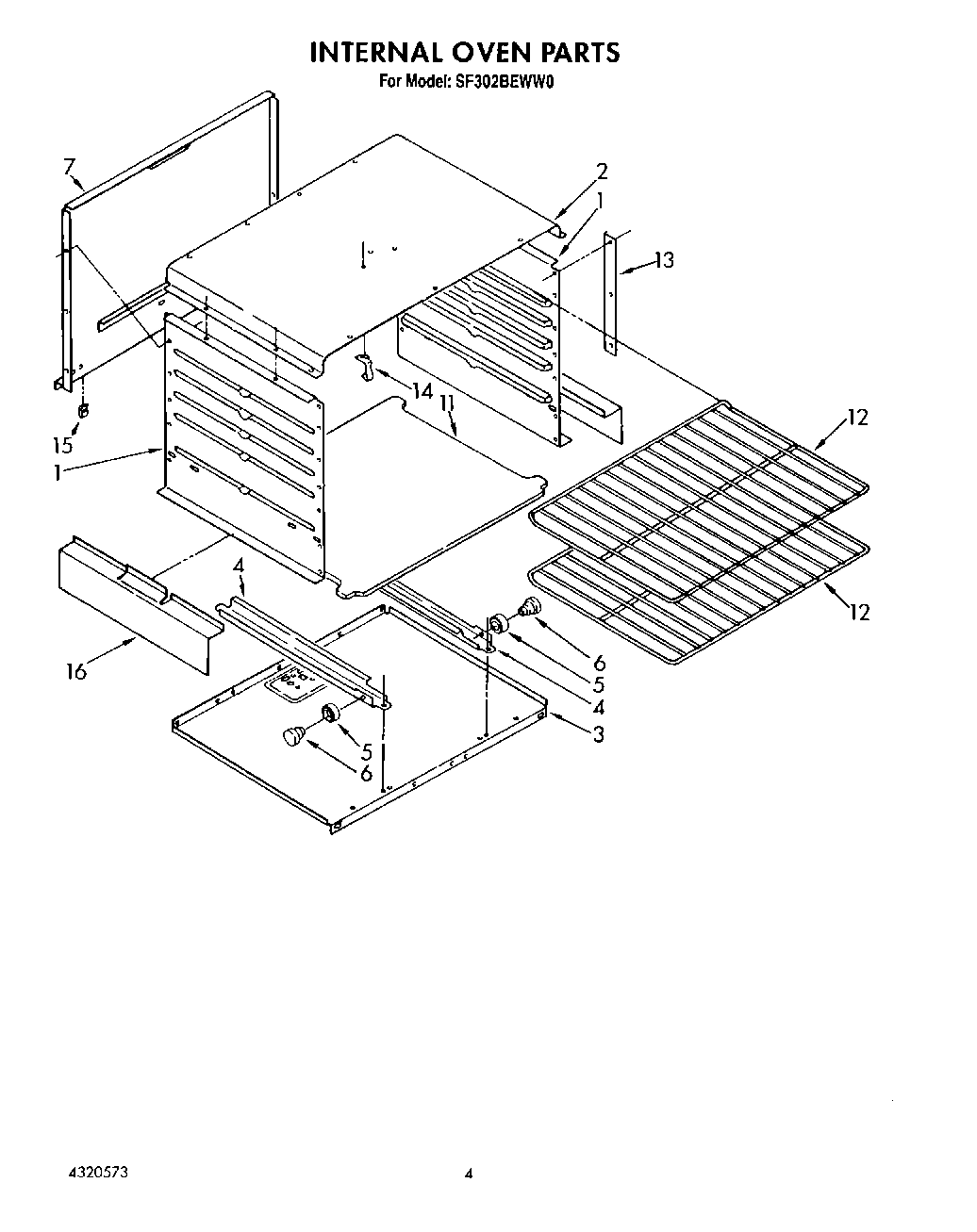

SF302BEWW0 02 – INTERNAL OVEN

Written by

Products

Position	Product
1	Screw, 10-12 X 1/2 (6)
1	Liner, Oven Side (2)
2	Liner, Oven Top
3	Baffle, Bottom
4	Track, Broiler (Right Hand)
4	WP308685 Whirlpool Microwave Screw
4	Track, Broiler (Left Hand)
5	Roller (2)
6	Pin, Roller (2)
7	Liner, Oven Back
11	Bottom, Oven
12	Rack, Oven (2)
13	Support, Liner (2)
14	98005642 Whirlpool Clip
15	Clip, Speed
16	Shield, Radiation
