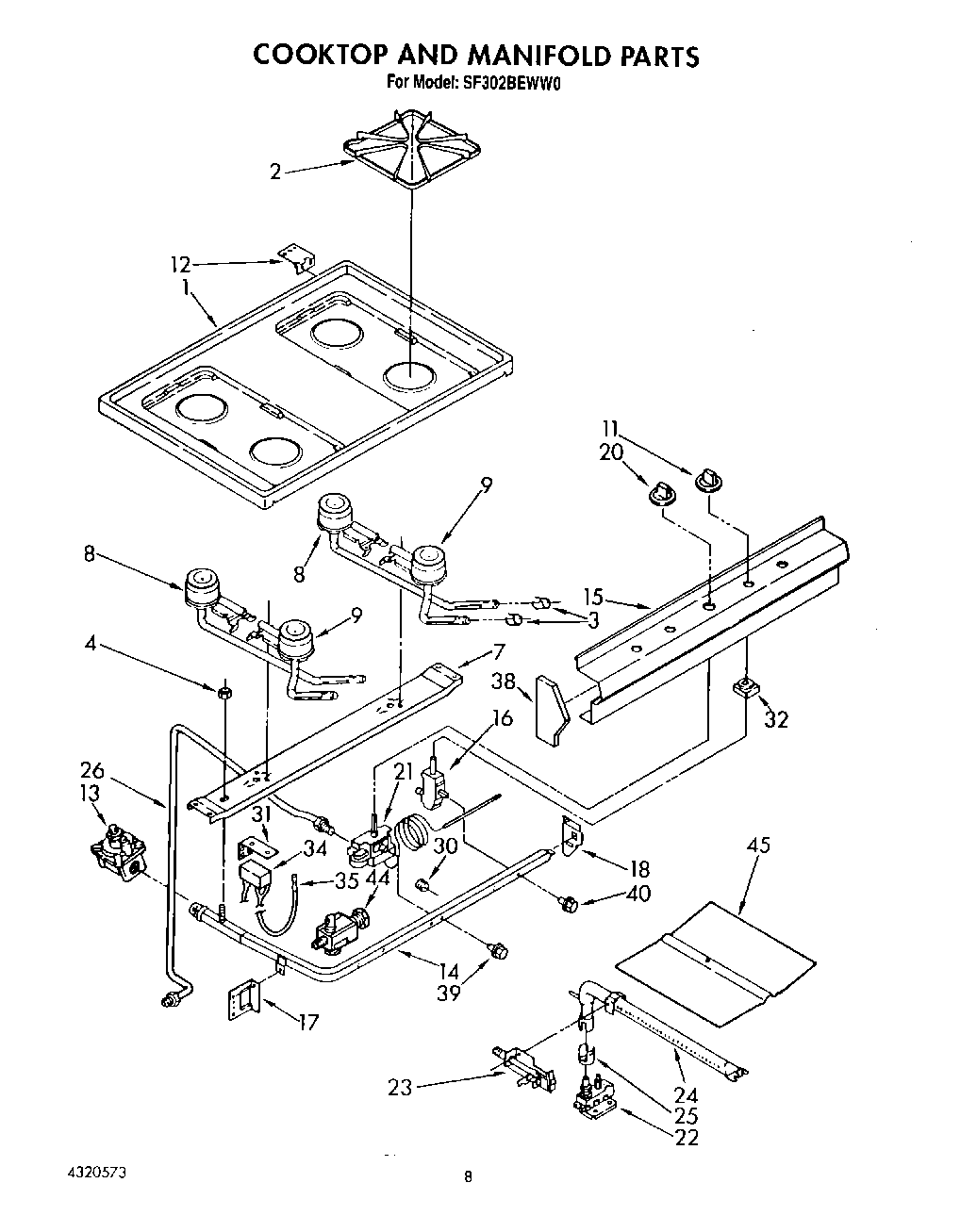

SF302BEWW0 05 – COOKTOP AND MANIFOLD, LIT/OPTIONAL

Products

Position	Product
	WPL LIT786735
	WPL LIT786767
	Guide, Cooking
	WPL LIT4315362
1	Cooktop (Almond)
1	Cooktop (White)
2	Grate (4)
3	Shutter, Air (4)
4	Nut, Hex
7	Support, Burner
8	Burner, Rear (2)
9	Burner, Front (2)
11	WP4320580 Whirlpool Knob Assembly
12	Bracket, Support (2)
13	Regulator, Pressure
14	Manifold
15	Panel, Manifold
16	Valve, 90~ (4) (Includes Ill. No. 32)
18	WP308685 Whirlpool Microwave Screw
18	Support, Manifold (R.H.)
20	Knob, Thermostat
21	Thermostat
22	Valve, Safety
23	Screw, 10-12 X 3/8 (2)
23	Pilot
24	Burner, Oven
25	Shutter, Burner
26	Tubing 3/8“ (Thermostat To Safety Valve)
30	W10295523 Whirlpool Plug
31	Plate, Spark Module
32	WP4157180 Whirlpool Surface Burner Ignition Switch
34	Module, Spark
35	Ignitor (L.H.)
35	Support, Manifold (L.H.)
38	Endcap (L.H.)
38	Endcap (R.H.)
39	Screw, Thermostat Mounting (2)
40	Bolt, Valve Mounting
44	Valve, Shut Off
45	FOIL, ALUMINUM OVEN (18“ X 25 )
45	Spreader, Flame
45	WPW10208653 Whirlpool Insulation
