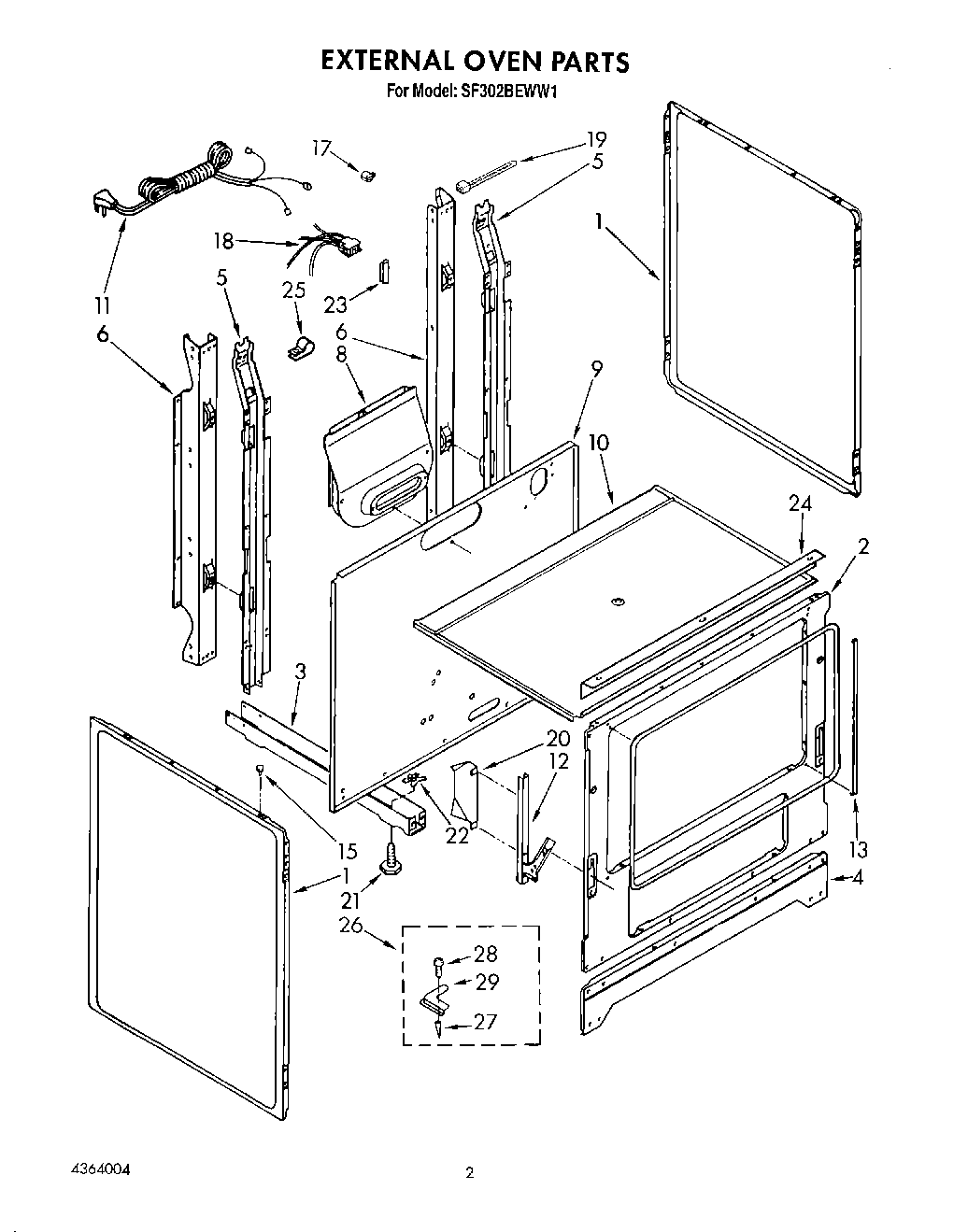

SF302BEWW1 02 – EXTERNAL OVENadmin2025-04-26T11:21:42+00:00SF302BEWW1 02 – EXTERNAL OVEN
Products
| Position | Product |
|---|
| 1 | Panel, Side (2) (Almond) |
| 1 | Panel, Side (2) (White) |
| 2 | Frame, Front |
| 3 | Rail, Base (2) |
| 4 | Base, Front |
| 4 | Ignitor (Screw, 8 X 1/2 (4)) |
| 5 | Support, Main (2) |
| 5 | Screw, 10-32 X 1/2 (1) |
| 6 | Support, Rear (2) |
| 8 | Box, Flue |
| 8 | SCREW |
| 9 | Panel, Rear |
| 10 | Burner Box |
| 11 | WP9757891 Whirlpool Power Cord |
| 12 | Hinge, Door (2) |
| 12 | Screw, 10-24 X 3/8 (2) |
| 13 | Seal, Door (2) |
| 15 | Stud Screw (2) |
| 15 | Locator stud (2) |
| 17 | Strain Relief |
| 18 | Block, Disconnect |
| 19 | Wire, Tie |
| 20 | Shield, Insulation |
| 21 | Leg, Leveler (4) |
| 22 | Nut (4) |
| 23 | Safe Edge |
| 24 | Extension Burner Box |
| 24 | Screw, 10-12 x 1/2 (4) |
| 25 | Strain Relief |
| 25 | WP308685 Whirlpool Microwave Screw |
| 26 | White |
| 27 | Anchor |
| 28 | Screw |
| 29 | Bracket |
