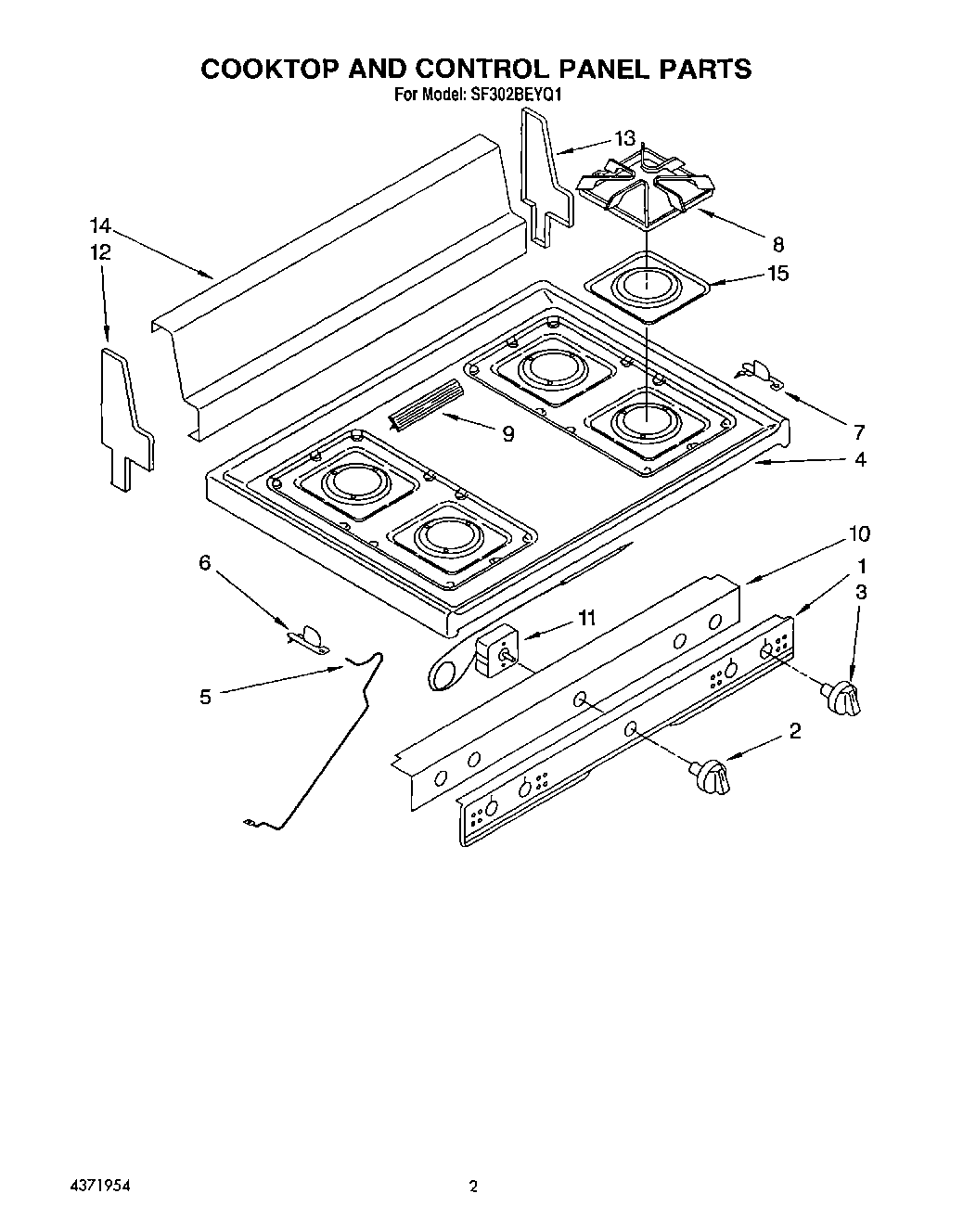

SF302BEYQ1 02 – COOKTOP AND CONTROL PANEL, LIT/OPTI

Products

PositionProduct
Installation, Instructions
List, Repair Parts
Guide, Use & Care
1Panel, Manifold
2Knob, Thermostat
3Knob, Burner (4)
4Top, Main (White)
5Rod, Support Top
6Bracket, Hinge LH
7Bracket, Hinge RH
8Grate, Burner
9Cover, Vent
10Cover, Manifold
11Thermostat, Oven
12Endcap LH
13Endcap RH
14Panel, Backguard
15Pan, Burner
