SF302BSGN0 06 – DOOR

SF302BSGN0 06 – DOOR

Written by

in

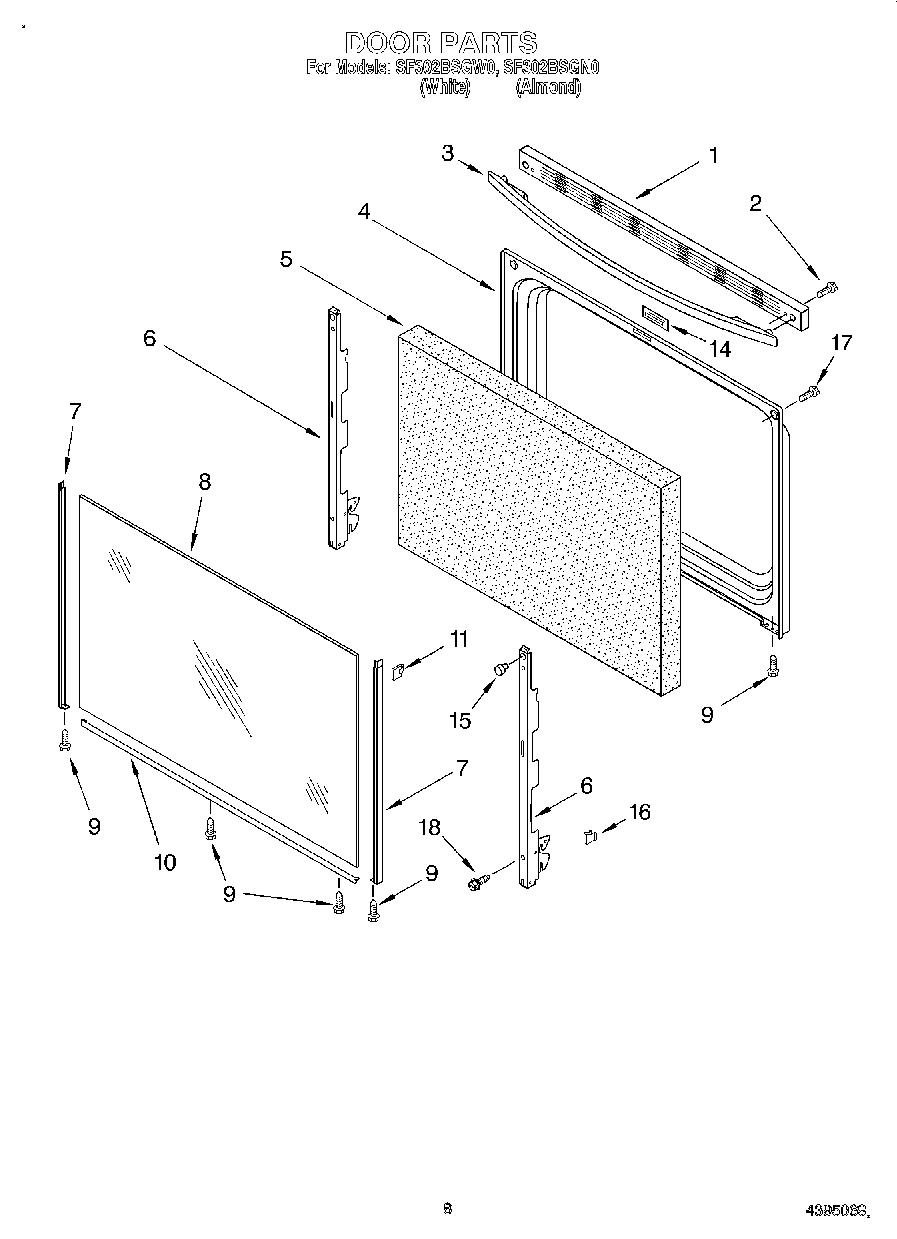

SF302BSGN0 06 – DOOR

Products

Position	Product
1	Trim, Top (Black)
2	WP3196164 Whirlpool Screw
3	WPW10202217 Whirlpool Door Handle
4	Liner, Door
5	Insulation, Door
6	Hinge, Door (2)
8	Glass, Door (Black)
9	W10491985 Whirlpool Screw
10	8184858 Whirlpool Door Trim
11	Clip, Glass (4)
14	Plug, Door
15	238614 Whirlpool Bumper Hinge
16	WP3196925 Whirlpool Clip Assembly
17	WP179051 Whirlpool Screw
18	WP3196175 Whirlpool Screw
