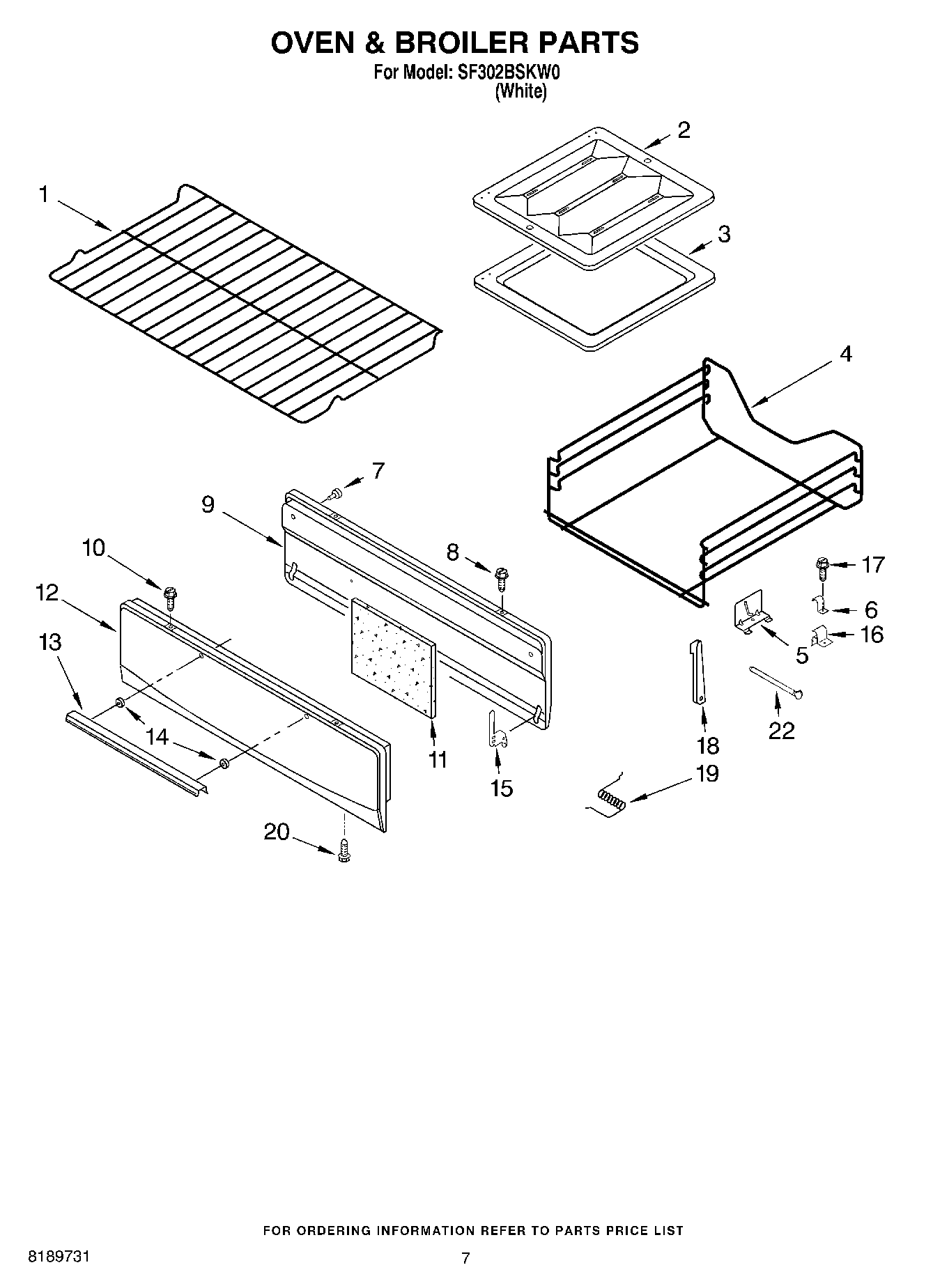

SF302BSKW0 05 – OVEN AND BROILER

SF302BSKW0 05 – OVEN AND BROILER

Written by

in

SF302BSKW0 05 – OVEN AND BROILER

Products

PositionProduct
1Rack, Oven (2)
2WP98003480 Whirlpool Grill Pan
3WP98016005 Whirlpool Broiler Pan
4Rack, Broiler
5Bracket, Rack
698004715 Whirlpool Drawer Guide
7BUMPER, DOOR
83196166 Whirlpool Screw
9Liner, Door
10Screw
11Insulation, Door
12Panel, Door (White)
13Handle, Brlr Door (White)
14Spacer, Handle
15W11499074 Whirlpool Hinge Bracket
1698008341 Whirlpool Clip
17W10837731 Whirlpool Screw Assembly
18Support, Hinge
19Spring, Broiler (Left Hand)
19Spring, Broiler (Right Hand)
20WP3400805 Whirlpool Screw Assembly
2298004053 Whirlpool Oven Hinge Pin
