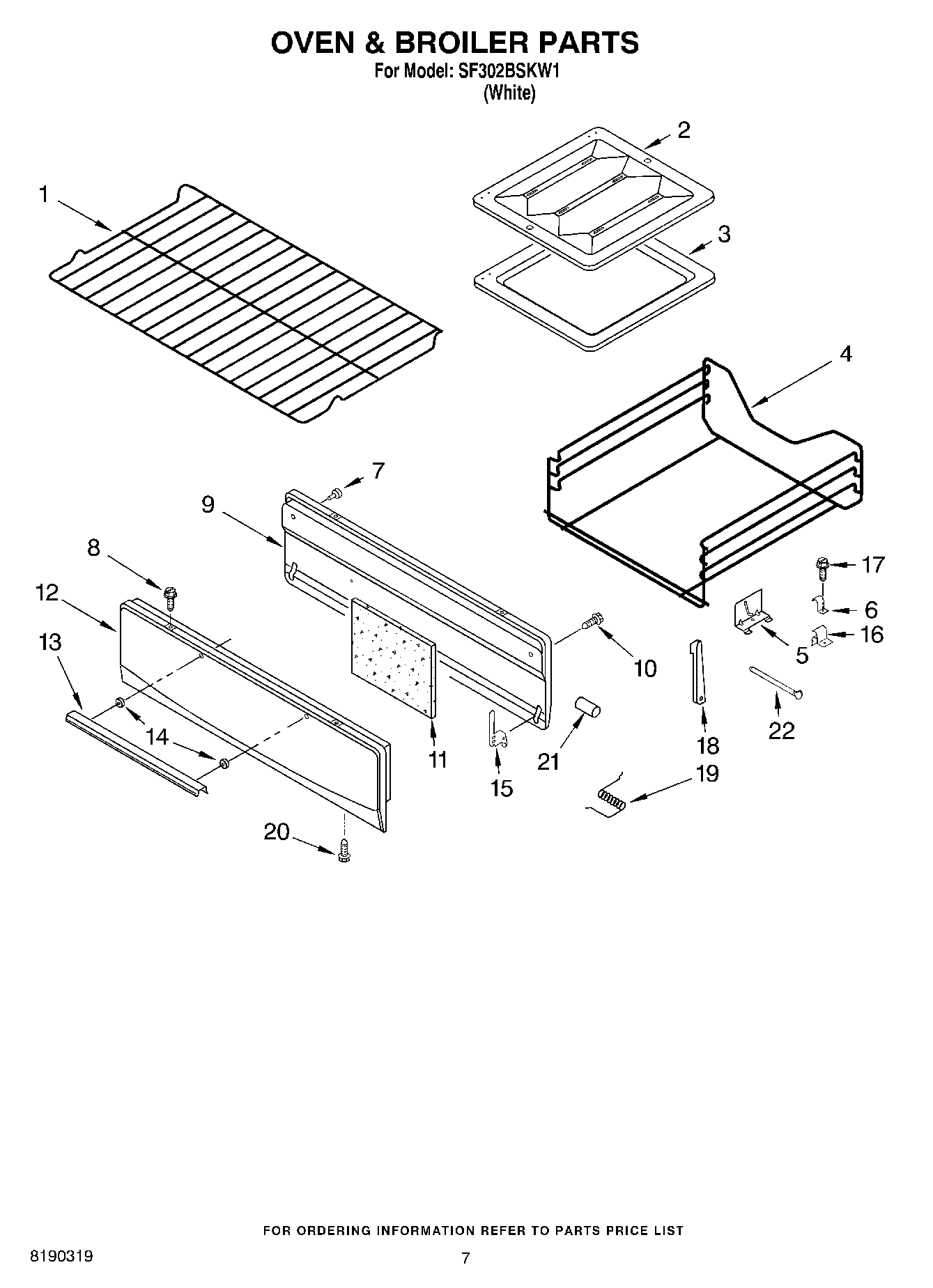

SF302BSKW1 05 – OVEN & BROILER PARTS

Products

Position	Product
1	Rack, Oven (2)
2	WP98003480 Whirlpool Grill Pan
3	WP98016005 Whirlpool Broiler Pan
4	98016570 Whirlpool Oven Rack
5	Bracket, Rack
6	98004715 Whirlpool Drawer Guide
7	98004723 Whirlpool Oven Bumper
8	3196166 Whirlpool Screw
9	Liner, Door
10	Screw
11	Insulation, Door
12	Panel, Door (White)
13	Handle, Brlr Door (White)
14	Spacer, Handle
15	W11499074 Whirlpool Hinge Bracket
16	98008341 Whirlpool Clip
17	W10837731 Whirlpool Screw Assembly
18	Support, Hinge
19	Spring, Broiler (Left Hand)
19	Spring, Broiler (Right Hand)
20	WP3400805 Whirlpool Screw Assembly
21	Spacer
22	98004053 Whirlpool Oven Hinge Pin
